HRC60 Customized Carbon Graphite Bearings And Bushings For Machinery

Product Description:

Carbon graphite bushings are a durable and reliable product used for a range of application, including machinery, automotive and aerospace. Manufactured by leading resin bearing manufacturers, these bushings offer a range of benefits, making them an ideal choice for many industries. With a high thermal conductivity of more than 30W/mK, a compressive strength of more than 25Mpa, a flexural strength of more than 20Mpa, and a density of 1.8-2.2g/cm3, these carbon graphite bushings can be used for reliable and efficient operations, such as pump bush and pump bearing.

Features:

• Product Name: Carbon Graphite Bushings
• Thermal Expansion Coefficient: 1.5-2.0×10-6/K
• Application: Machinery, Automotive, Aerospace
• Compressive Strength: ≥25Mpa
• Flexural Strength: ≥20Mpa
• Hardness: HRC60-70
• Specialized for: Graphite Bushing, Carbon Graphite Bearing, Carbon Graphite Bearing for Water Pumps, Graphite Bearing

Technical Parameters:

Applications:

Haicheng carbon graphite bushings are made of high-quality carbon graphite material, which have the advantages of high bearing capacity, high temperature resistance, low coefficient of friction, and good lubrication. The impregnated carbon bush is characterized by a density of 1.8-2.2g/cm3, bearing capacity of ≥50N/mm2, thermal conductivity of ≥30W/mK, and flexural strength of ≥20Mpa. They are mainly used for water pumps, graphite pipe bearings, bearing bush and other applications. They are certified by ISO9001, ISO14000, and IAFT16949. The minimum order quantity is 10pcs and the price is negociated. The packaging details include carton box, wooden case, and pallet. The delivery time is 25-30 days. The payment terms are T/T and the supply ability is 100000pcs per month.

Customization:

Brand Name: Haicheng
Place of Origin: China
Certification: ISO9001,ISO14000,IAFT16949
Minimum Order Quantity: 10pcs
Price: Negociated
Packaging Details: Carton box, Wooden case,Pallet
Delivery Time: 25-30 days
Payment Terms: T/T
Supply Ability: 100000pcs per month
Compressive Strength: ≥25Mpa
Material: Carbon Graphite
Application: Machinery, Automotive, Aerospace
Size: Customized
Bearing Capacity: ≥50N/mm2

We offer a wide range of carbon graphite bearing, including carbon graphite bearing for water pumps, impregnated carbon bushings and carbon graphite bushings. Our carbon graphite bushings are made from high quality carbon graphite material with superior compressive strength and excellent bearing capacity. The bushings are available in various sizes and shapes to meet the needs of different applications. All products are ISO certified and come with a warranty.

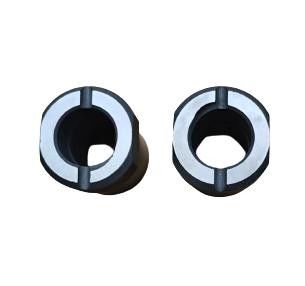

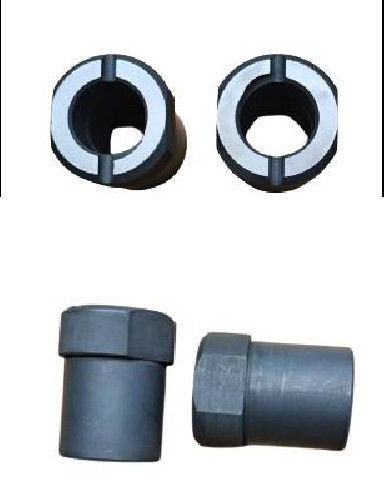

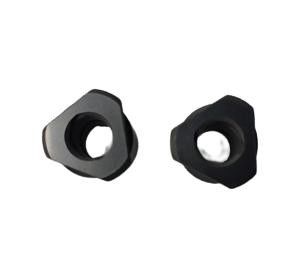

Photos of products and factory:

Packing and Shipping:

Carbon Graphite Bushings are packaged securely to ensure they are protected during transport. The bushings are placed in protective foam and then placed in a sturdy box. All orders are shipped with a tracking number and insurance to ensure the packages arrive safely.

FAQ:

Q: Are you a Manufacture Factory??

A: Yes.We are the Direct Manufacture Factory, and our factory has specialized in carbon graphite products for decades.

Q: Where is the Carbon Graphite Bushings made?

A: The Carbon Graphite Bushings is made in Haicheng, China.

Q: What certifications does the Carbon Graphite Bushings have?

A: The Carbon Graphite Bushings has ISO9001,ISO14000,IAFT16949 certifications.

Q: What is the minimum order quantity for Carbon Graphite Bushings?

A: The minimum order quantity for Carbon Graphite Bushings is 10pcs.

Q: How can we guarantee quality?

A: Always a pre-production sample before mass production;Always final Inspection before shipment;

Q: What is the packaging of Carbon Graphite Bushings?

A: The Carbon Graphite Bushings is packed in carton box, wooden case, pallet.
