Product Details:
|
| Materials: | High Pure Artificial Graphite Materials | Temperature Resistance Resistance: | 200-650℃ |
|---|---|---|---|
| Application: | Metallurgy Industry | Lead Time: | 25-30 Days |
| Flexural Strength: | 20- 45 Mpa Different Grades Available | Chemical Composition: | High Purity Graphite, Carbon>99% |
| High Light: | High Lubrication Graphite Sleeve Bearings,Graphite Sleeve Bearings Chemical Resistance,graphite bush bearing Chemical Resistance |
||

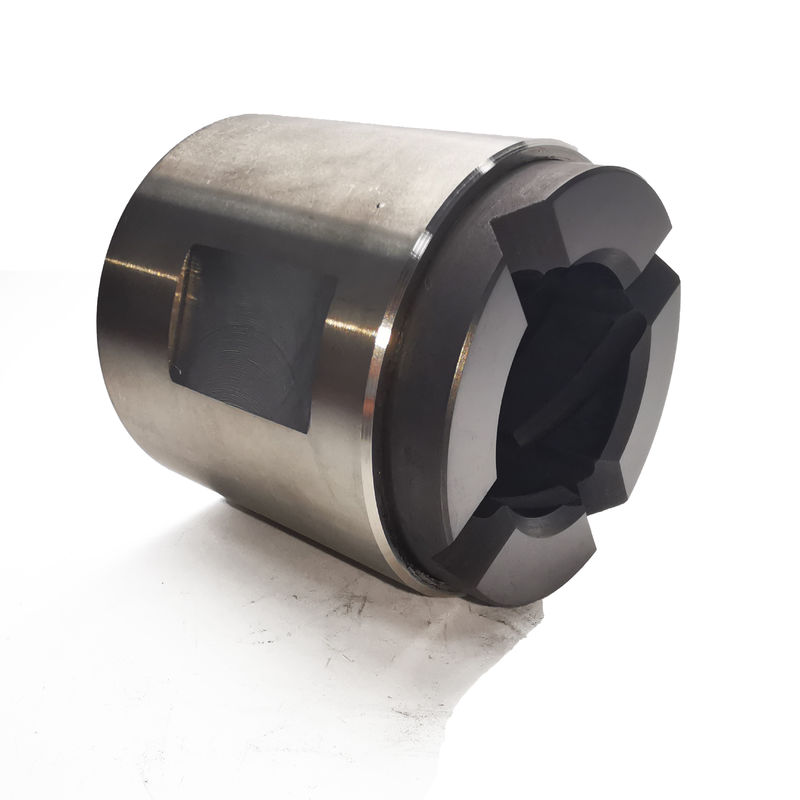

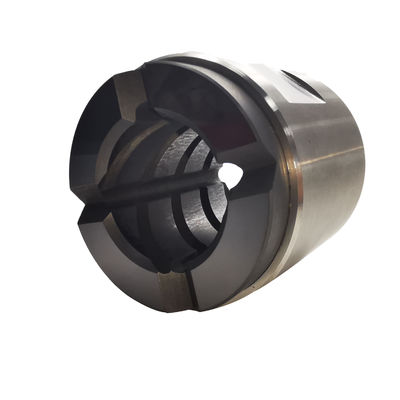

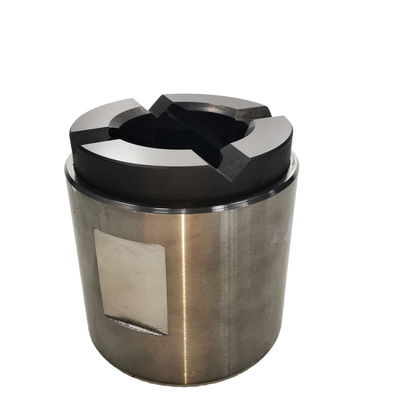

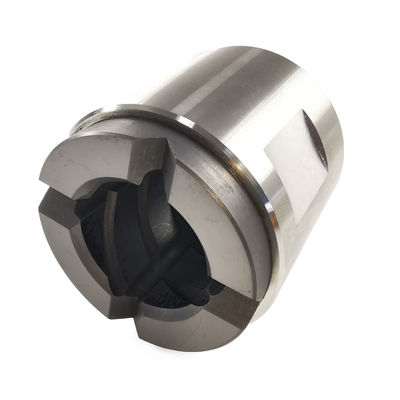

Artificial Carbon Graphite Bearings With Stainless Steel High Lubrication
A graphite bearing with steel refers to a type of bearing that has a graphite layer on its surface, which is in contact with a steel shaft or other metal component. Graphite bearings are known for their self-lubricating properties, which means that they can operate without the need for additional lubrication.
The graphite layer on the bearing surface acts as a solid lubricant, reducing friction and wear between the bearing and the shaft. This can lead to long service life and reduced maintenance requirements. Graphite also has excellent thermal conductivity, which can help to dissipate heat generated by the bearing during operation.
| Product Name | Graphite Bearing |
| Application | For Chemical Industry, Machinery Parts, mechanical Sealing, Petrochemical, Textile, Food industries seals etc. e.g. submersible motor, shield motor, flow meter |
| Material | Graphite Impregnation Resin (Epoxy resin) |
| Chemical Composition (Impregnant) | Carbon and Resin (Epoxy resin) |
| Size / Shape | Customized |
| Flexural Strength | 50MP |
| Compressive Strength | 176MPa |
| Shore Hardness | 65 |
| Bulk Density | 1.70g/cm3 |
| Temperature | 200 °C |
| Porosity | 1.0 |
| Feature | Acid and alkali resistant |
Material proformance
| Category | Model | Impregnant | Shore Hardess | Flexural Strength | Compressive Strength | Porosity | Bulk Density | Thermal expansion coeffcient | Temp. | |||
| ≥ | `X | ≥MPa | `X | ≥MPa | `X | ≤% | g/cm3 | 10-6/℃ | ℃ | |||
| Graphite | M120 | - | 60 | - | 25 | - | 81 | - | 18 | 1.6 | 4 | 350 |
| M154 | - | 40 | - | 20 | - | 40 | - | 28 | 1.42 | - | 350 | |
| M254 | - | 10 | - | 25 | - | 45 | - | 25 | 1.65 | 3.4 | 450 | |
| Impregnated resin carbon graphite | M106H | Epoxy resin | 75 | 90 | 51 | 60 | 180 | 190 | 1.0 | 1.62 | 4.8 | 200 |
| M238H | 40 | 55 | 39 | 50 | 78 | 110 | 1.0 | 1.85 | 4.5 | 250 | ||
| M255H | 40 | 50 | 34 | 45 | 78 | 90 | 1.0 | 1.8 | 4.5 | 200 | ||
| M106K | Furan resin | 80 | 95 | 55 | 65 | 200 | 210 | 2.0 | 1.62 | - | 200 | |
| M120K | 75 | 95 | 50 | 60 | 190 | 195 | 2.0 | 1.7 | 200 | |||
| M154K | 60 | 35 | 70 | 6.0 | 1.6 | 200 | ||||||
| M158K | 80 | 90 | 54 | 60 | 200 | 210 | 1.2 | 1.65 | - | 200 | ||
| Impregnated metal carbon graphite | M106D | Antimony alloy | 75 | - | 55 | 65 | 170 | 190 | 3 | 2.2 | 5.0 | 500 |
| M120D | 70 | - | 50 | 60 | 140 | 160 | 3 | 2.2 | 5.0 | 500 | ||
| M254D | 35 | - | 35 | - | 65 | - | 3 | 2.2 | 4.5 | 500 | ||
| M120P | Copper alloy | 65 | - | 65 | - | 200 | - | 3 | 2.4 | - | 400 | |
| Impregnated glass carbon graphite | M106R | Glass | 110 | - | 75 | - | 210 | - | 1.5 | 1.9 | 4.67 | 600 |
| M120R | 95 | - | 57 | - | 190 | - | 1.5 | 1.9 | 4.67 | 600 | ||
| M254R | 65 | - | 55 | - | 100 | - | 1.5 | 1.9 | - | 600 | ||
| M262R | 75 | - | 48 | - | 138 | - | 1.5 | 1.9 | - | 600 | ||
FQA
Q1:Are you a manufacturing factory or a trading company?
Q5: Do you have stock products to sell?
A5: No,We produce these products accorded to the customer’s requirement,It also means material, density, shape, size,design,quantity will depend on what your need.OEM orders always be welcomed.
