Product Details:
|
| Materials: | High Pure Artificial Graphite Materials | Temperature Resistance Resistance: | 200-650℃ |
|---|---|---|---|
| Application: | Metallurgy Industry | Lead Time: | 25-30 Days |
| Flexural Strength: | 20- 45 Mpa Different Grades Available | Chemical Composition: | High Purity Graphite, Carbon>99% |
| High Light: | Metallurgy Industry Carbon Graphite Bearings,1.70g/cm3 Carbon Graphite Bearings,Metallurgy Industry graphite bush bearing |
||

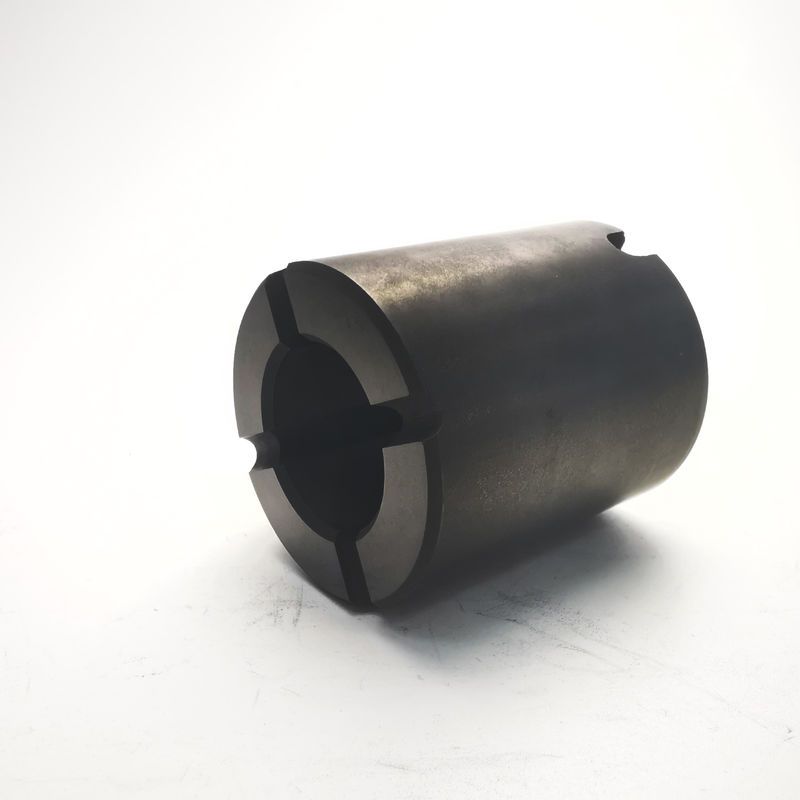

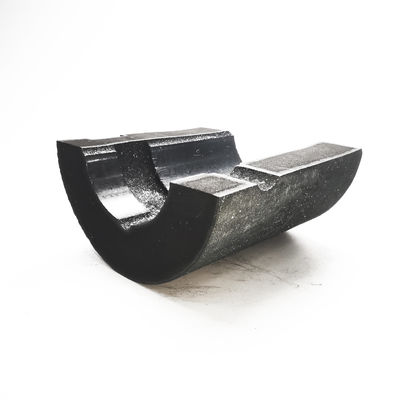

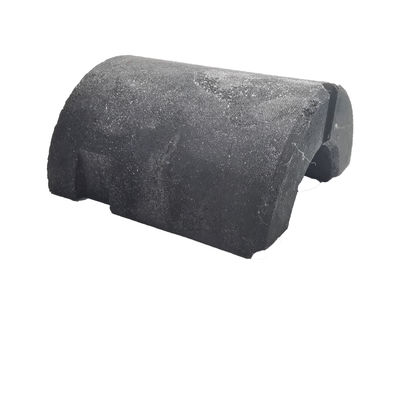

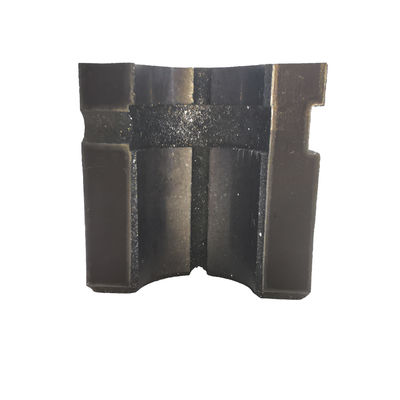

Synthetic Carbon Graphite Bearings High Quality Customized Design
1. Good lubricity
2. Good thermal conductivity
3. Good corrosion resistance
4. High oxidation resistance
5. Greater resistance to thermal and mechanical shock
6. High mechanical strength and machining accuracy
7. Hard surface and good flexural strength
| Product Name | Graphite Bearing |
| Application | For Chemical Industry, Machinery Parts, mechanical Sealing, Petrochemical, Textile, Food industries seals etc. e.g. submersible motor, shield motor, flow meter |
| Material | Graphite Impregnation Resin (Epoxy resin) |
| Chemical Composition (Impregnant) | Carbon and Resin (Epoxy resin) |
| Size / Shape | Customized |
| Flexural Strength | 50MP |
| Compressive Strength | 176MPa |
| Shore Hardness | 65 |
| Bulk Density | 1.70g/cm3 |
| Temperature | 200 °C |
| Porosity | 1.0 |
| Feature | Acid and alkali resistant |
Material proformance
| Category | Model | Impregnant | Shore Hardess | Flexural Strength | Compressive Strength | Porosity | Bulk Density | Thermal expansion coeffcient | Temp. | |||
| ≥ | `X | ≥MPa | `X | ≥MPa | `X | ≤% | g/cm3 | 10-6/℃ | ℃ | |||
| Graphite | M120 | - | 60 | - | 25 | - | 81 | - | 18 | 1.6 | 4 | 350 |
| M154 | - | 40 | - | 20 | - | 40 | - | 28 | 1.42 | - | 350 | |
| M254 | - | 10 | - | 25 | - | 45 | - | 25 | 1.65 | 3.4 | 450 | |
| Impregnated resin carbon graphite | M106H | Epoxy resin | 75 | 90 | 51 | 60 | 180 | 190 | 1.0 | 1.62 | 4.8 | 200 |
| M238H | 40 | 55 | 39 | 50 | 78 | 110 | 1.0 | 1.85 | 4.5 | 250 | ||
| M255H | 40 | 50 | 34 | 45 | 78 | 90 | 1.0 | 1.8 | 4.5 | 200 | ||
| M106K | Furan resin | 80 | 95 | 55 | 65 | 200 | 210 | 2.0 | 1.62 | - | 200 | |
| M120K | 75 | 95 | 50 | 60 | 190 | 195 | 2.0 | 1.7 | 200 | |||
| M154K | 60 | 35 | 70 | 6.0 | 1.6 | 200 | ||||||
| M158K | 80 | 90 | 54 | 60 | 200 | 210 | 1.2 | 1.65 | - | 200 | ||
| Impregnated metal carbon graphite | M106D | Antimony alloy | 75 | - | 55 | 65 | 170 | 190 | 3 | 2.2 | 5.0 | 500 |
| M120D | 70 | - | 50 | 60 | 140 | 160 | 3 | 2.2 | 5.0 | 500 | ||
| M254D | 35 | - | 35 | - | 65 | - | 3 | 2.2 | 4.5 | 500 | ||
| M120P | Copper alloy | 65 | - | 65 | - | 200 | - | 3 | 2.4 | - | 400 | |
| Impregnated glass carbon graphite | M106R | Glass | 110 | - | 75 | - | 210 | - | 1.5 | 1.9 | 4.67 | 600 |
| M120R | 95 | - | 57 | - | 190 | - | 1.5 | 1.9 | 4.67 | 600 | ||
| M254R | 65 | - | 55 | - | 100 | - | 1.5 | 1.9 | - | 600 | ||
| M262R | 75 | - | 48 | - | 138 | - | 1.5 | 1.9 | - | 600 | ||
FQA
Q1:Are you a manufacturing factory or a trading company?
Q5: Do you have stock products to sell?
A5: No,We produce these products accorded to the customer’s requirement,It also means material, density, shape, size,design,quantity will depend on what your need.OEM orders always be welcomed.
