Product Details:
|
| Materials: | High Pure Artificial Graphite Materials | Temperature Resistance Resistance: | 200-650℃ |
|---|---|---|---|
| Application: | Metallurgy Industry | Lead Time: | 25-30 Days |
| Flexural Strength: | 20- 45 Mpa Different Grades Available | Chemical Composition: | High Purity Graphite, Carbon>99% |
| Highlight: | Graphite Thrust Bearings Pressure Resistance,ISO9001 Graphite Thrust Bearings,carbon thrust bearings Pressure Resistance |
||

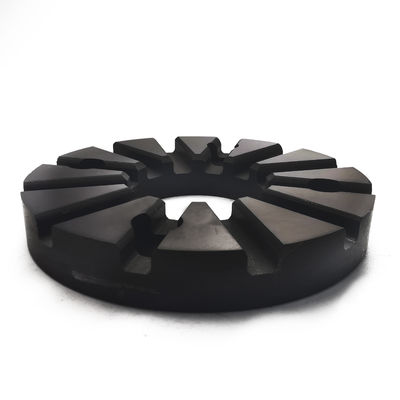

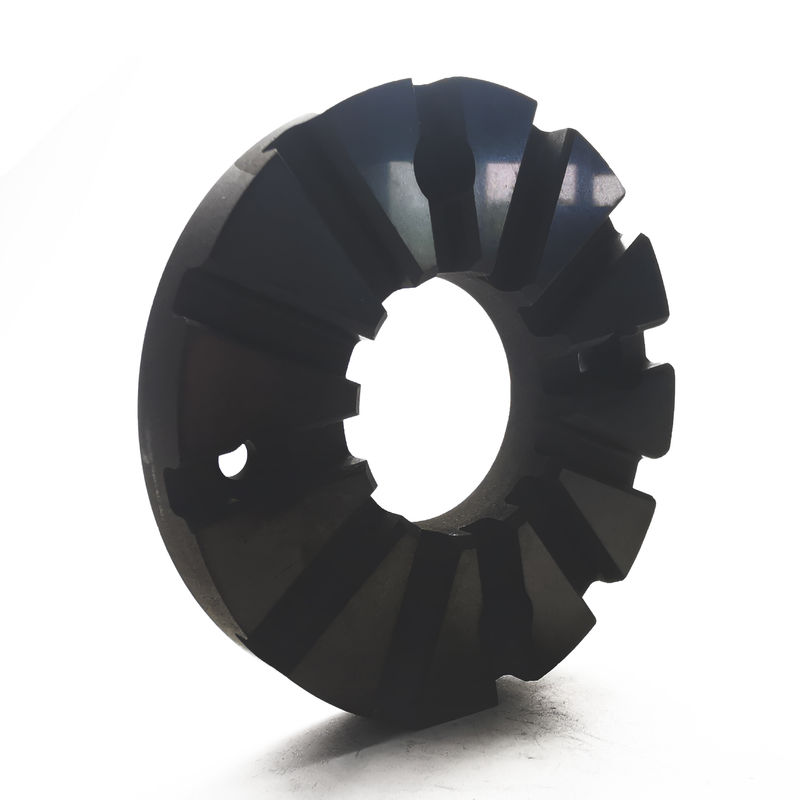

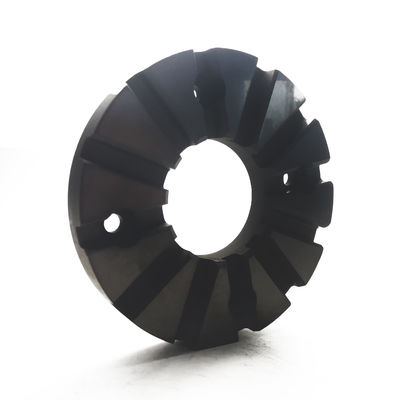

Artificial Carbon Graphite Thrust Bearings High Purity And Density Material
1) The graphite bearing are available and tailor-made as customers' request.
2) The graphite bearing with wear resistance,resistance to high temperature,pressure resistance,corrosion resistance,creep resistance,self-lubricating without oil,little expansion coefficient,and excellent sealing.
3) Property of graphite
A. excellent self-lubrication;
B. good chemical resistance;
C. high thermal conductivity and thermal stability;
D. sufficient mechanical strength and impact resistance;
E. Easy to be machined, can be processed into various geometric shapes as requirements.
| Product Name | Graphite Bearing |
| Application | For Chemical Industry, Machinery Parts, mechanical Sealing, Petrochemical, Textile, Food industries seals etc. e.g. submersible motor, shield motor, flow meter |
| Material | Graphite Impregnation Resin (Epoxy resin) |
| Chemical Composition (Impregnant) | Carbon and Resin (Epoxy resin) |
| Size / Shape | Customized |
| Flexural Strength | 50MP |
| Compressive Strength | 176MPa |
| Shore Hardness | 65 |
| Bulk Density | 1.70g/cm3 |
| Temperature | 200 °C |
| Porosity | 1.0 |
| Feature | Acid and alkali resistant |
Material proformance
| Category | Model | Impregnant | Shore Hardess | Flexural Strength | Compressive Strength | Porosity | Bulk Density | Thermal expansion coeffcient | Temp. | |||
| ≥ | `X | ≥MPa | `X | ≥MPa | `X | ≤% | g/cm3 | 10-6/℃ | ℃ | |||
| Graphite | M120 | - | 60 | - | 25 | - | 81 | - | 18 | 1.6 | 4 | 350 |
| M154 | - | 40 | - | 20 | - | 40 | - | 28 | 1.42 | - | 350 | |
| M254 | - | 10 | - | 25 | - | 45 | - | 25 | 1.65 | 3.4 | 450 | |
| Impregnated resin carbon graphite | M106H | Epoxy resin | 75 | 90 | 51 | 60 | 180 | 190 | 1.0 | 1.62 | 4.8 | 200 |
| M238H | 40 | 55 | 39 | 50 | 78 | 110 | 1.0 | 1.85 | 4.5 | 250 | ||
| M255H | 40 | 50 | 34 | 45 | 78 | 90 | 1.0 | 1.8 | 4.5 | 200 | ||
| M106K | Furan resin | 80 | 95 | 55 | 65 | 200 | 210 | 2.0 | 1.62 | - | 200 | |
| M120K | 75 | 95 | 50 | 60 | 190 | 195 | 2.0 | 1.7 | 200 | |||
| M154K | 60 | 35 | 70 | 6.0 | 1.6 | 200 | ||||||
| M158K | 80 | 90 | 54 | 60 | 200 | 210 | 1.2 | 1.65 | - | 200 | ||
| Impregnated metal carbon graphite | M106D | Antimony alloy | 75 | - | 55 | 65 | 170 | 190 | 3 | 2.2 | 5.0 | 500 |
| M120D | 70 | - | 50 | 60 | 140 | 160 | 3 | 2.2 | 5.0 | 500 | ||
| M254D | 35 | - | 35 | - | 65 | - | 3 | 2.2 | 4.5 | 500 | ||
| M120P | Copper alloy | 65 | - | 65 | - | 200 | - | 3 | 2.4 | - | 400 | |
| Impregnated glass carbon graphite | M106R | Glass | 110 | - | 75 | - | 210 | - | 1.5 | 1.9 | 4.67 | 600 |
| M120R | 95 | - | 57 | - | 190 | - | 1.5 | 1.9 | 4.67 | 600 | ||
| M254R | 65 | - | 55 | - | 100 | - | 1.5 | 1.9 | - | 600 | ||
| M262R | 75 | - | 48 | - | 138 | - | 1.5 | 1.9 | - | 600 | ||
FQA
Q1:Are you a manufacturing factory or a trading company?
Q5: Do you have stock products to sell?
A5: No,We produce these products accorded to the customer’s requirement,It also means material, density, shape, size,design,quantity will depend on what your need.OEM orders always be welcomed.
