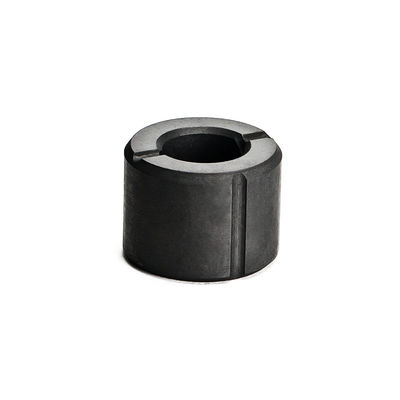

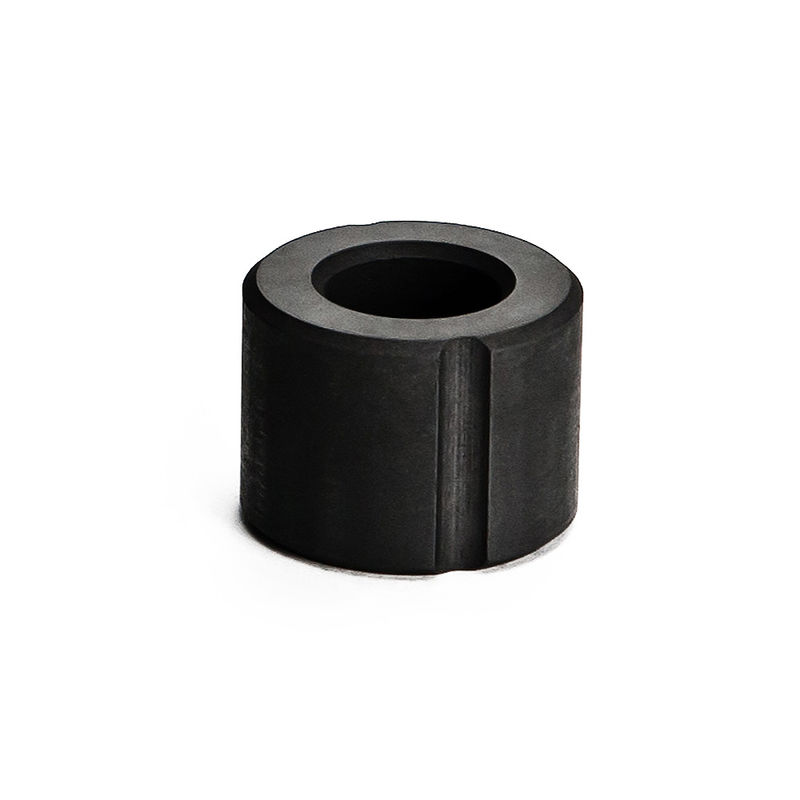

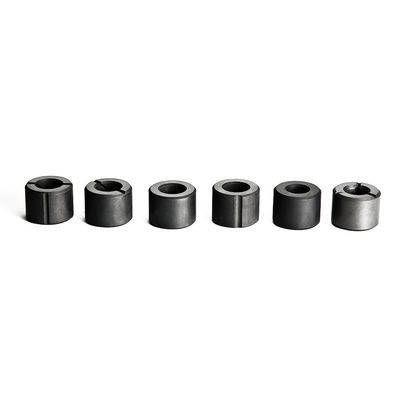

Shock Resistant Carbon Graphite Bearings 200-650℃ High Temp Resistance

Shock Resistant Carbon Graphite Bearings 200-650℃ High Temp Resistance
Shock Resistant Carbon Graphite Bearings 200-650℃ High Temp Resistance
Shock Resistant Carbon Graphite Bearings 200-650℃ High Temp Resistance Shock Resistant Carbon Graphite Bearings 200-650℃ High Temp Resistance Shock Resistant Carbon Graphite Bearings 200-650℃ High Temp Resistance Shock Resistant Carbon Graphite Bearings 200-650℃ High Temp Resistance

Large Image :  Shock Resistant Carbon Graphite Bearings 200-650℃ High Temp Resistance

Product Details:
Place of Origin: China
Brand Name: Haicheng
Certification: ISO9001, ISO14000, IATF16949
Model Number: M120K, M120D
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 15-20 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 50000 pcs per month

Shock Resistant Carbon Graphite Bearings 200-650℃ High Temp Resistance

Description
Material: Impregnated Carbon Graphite Temperature Resistance: 200-650℃
Application: Mechanical Parts Density: 1.85g/cm3
Compressive Strength: 68-100MPa Chemical Composition: High Purity Graphite, Carbon>99%
High Light:

Carbon Graphite Bearings High Temp Resistance

,

Shock Resistant Carbon Graphite Bearings

,

Shock Resistant high temperature sleeve bearing

Synthetic Carbon Graphite Bearings High Temperature Resistance Reliable Supplier



Description



Antimony Graphite is excellent self-lubricating and wear-resistant material, which can be used in high temperature 500 °C, cryogenic -253 °C, high speed 20,000 rev / min, high pressure 10Mpa, particularly suitable for water, oil, kerosene and other media working conditions.



Graphite bushings are widely used in a variety of pumps, stirring machines,high temperature-high pressure dyeing machines, compressors, sealing rings of reactor vessel mechanical seal components , oxygen generator , piston rings of air-blower,shield electric machine, submersible motor ,instrument, fuel pump, vacuum pumps,gas compressors, air pumps in pressing machine, Safety blasting film and plate in chemical devices, panelboard and arc block in cigarette making machine, etc.



TYPICAL APPLICATIONS FOR A CARBON BEARING OR BUSHING

  • 1. High temperature resistance

    2. Good lubrication property

    3. Good sealing performance

    4. Excellent oil resistance

    5. Anti-aging, good flexibility, good elasticity

    6. Excellent shock resistant and tear resistant



Technical performance of materials

Category Model Impregnant Shore Hardess Flexural Strength Compressive Strength Porosity Bulk Density Thermal expansion coeffcient Temp.
`X ≥MPa `X ≥MPa `X ≤% g/cm3 10-6/℃
Graphite M120 - 60 - 25 - 81 - 18 1.6 4 350
M154 - 40 - 20 - 40 - 28 1.42 - 350
M254 - 10 - 25 - 45 - 25 1.65 3.4 450
Impregnated resin carbon graphite M106H Epoxy resin 75 90 51 60 180 190 1.0 1.62 4.8 200
M238H 40 55 39 50 78 110 1.0 1.85 4.5 250
M255H 40 50 34 45 78 90 1.0 1.8 4.5 200
M106K Furan resin 80 95 55 65 200 210 2.0 1.62 - 200
M120K 75 95 50 60 190 195 2.0 1.7   200
M154K 60   35   70   6.0 1.6   200
M158K 80 90 54 60 200 210 1.2 1.65 - 200
Impregnated metal carbon graphite M106D Antimony alloy 75 - 55 65 170 190 3 2.2 5.0 500
M120D 70 - 50 60 140 160 3 2.2 5.0 500
M254D 35 - 35 - 65 - 3 2.2 4.5 500
M120P Copper alloy 65 - 65 - 200 - 3 2.4 - 400
Impregnated glass carbon graphite M106R Glass 110 - 75 - 210 - 1.5 1.9 4.67 600
M120R 95 - 57 - 190 - 1.5 1.9 4.67 600
M254R 65 - 55 - 100 - 1.5 1.9 - 600
M262R 75 - 48 - 138 - 1.5 1.9 - 600




Shock Resistant Carbon Graphite Bearings 200-650℃ High Temp Resistance 0









FQA



Q1:Are you a manufacturing factory or a trading company?

A1: We are professional manufacturer for graphite products. we supply various kinds of graphite products.

Q2: What's your MOQ?
A2: No limit to the quantity, we can offer the best proposal and solution according to your working conditions.

Q3: What's your lead time for production?
A3: The lead time for normal products is 25-30 days. it need to be negotiated for special cases.

Q4: Can I have a sample order?
A4: Yes, we welcome sample order for checking quality, it will be free for our stock sample, but the delivery charge will on your expense.

Q5: Do you accept OEM or ODM orders?
A5: Sure, we do.



Q6: Do you have stock products to sell?

A6: No,We produce these products accorded to the customer’s requirement,It also means material, density, shape, size,design,quantity will depend on what your need.OEM orders always be welcomed.
