Product Details:
|
| Thermal Expansion Coefficient: | 5 | Hardness: | 95 |
|---|---|---|---|
| Porosity: | ≤1.5% | Application: | Machinery, Automotive, Aerospace |
| Temperature: | 600℃ | Density: | 1.9g/cm3 |
| Compressive Strength: | 210Mpa | ||
| High Light: | self lubrication graphite impregnated bushings,machinery glass graphite impregnated bushings,industries sleeve bushing self lubricating |
||
Hot Sale Self Lubrication Machinery Glass Impregnated Graphite Bushings For Industries
Product Description:
Glass Impregnated graphite bearings are a type of self-lubricating bearing used in various industries, particularly in high-temperature and high-load applications. They are designed to provide low friction and high wear resistance, making them suitable for demanding operating conditions.
Technical Parameters
| Category | Model | Impregnant | Shore Hardess | Flexural Strength | Compressive Strength | Porosity | Bulk Density | Thermal expansion coeffcient | Temp. | |||
| ≥ | `X | ≥MPa | `X | ≥MPa | `X | ≤% | g/cm3 | 10-6/℃ | ℃ | |||
| Graphite | M120 | - | 60 | - | 25 | - | 81 | - | 18 | 1.6 | 4 | 350 |
| M154 | - | 40 | - | 20 | - | 40 | - | 28 | 1.42 | - | 350 | |
| M254 | - | 10 | - | 25 | - | 45 | - | 25 | 1.65 | 3.4 | 450 | |
| Impregnated babbitt graphalloy | M120B | Babbitt alloy | 50 | 80 | 50 | 70 | 130 | 180 | 10 | 2.3 | 5.5 | 200 |
| Impregnated resin carbon graphite | M106H | Epoxy resin | 75 | 90 | 51 | 60 | 180 | 190 | 1.0 | 1.62 | 4.8 | 200 |
| M238H | 40 | 55 | 39 | 50 | 78 | 110 | 1.0 | 1.85 | 4.5 | 250 | ||
| M255H | 40 | 50 | 34 | 45 | 78 | 90 | 1.0 | 1.8 | 4.5 | 200 | ||
| M106K | Furan resin | 80 | 95 | 55 | 65 | 200 | 210 | 2.0 | 1.62 | - | 200 | |
| M120K | 75 | 95 | 50 | 60 | 190 | 195 | 2.0 | 1.7 | 200 | |||
| M154K | 60 | 35 | 70 | 6.0 | 1.6 | 200 | ||||||
| M158K | 80 | 90 | 54 | 60 | 200 | 210 | 1.2 | 1.65 | - | 200 | ||
| Impregnated metal carbon graphite | M106D | Antimony alloy | 75 | - | 55 | 65 | 170 | 190 | 3 | 2.2 | 5.0 | 500 |
| M120D | 70 | - | 50 | 60 | 140 | 160 | 3 | 2.2 | 5.0 | 500 | ||
| M254D | 35 | - | 35 | - | 65 | - | 3 | 2.2 | 4.5 | 500 | ||
| M120P | Copper alloy | 65 | - | 65 | - | 200 | - | 3 | 2.4 | - | 400 | |
| Impregnated glass carbon graphite | M106R | Glass | 110 | - | 75 | - | 210 | - | 1.5 | 1.9 | 4.67 | 600 |
| M120R | 95 | - | 57 | - | 190 | - | 1.5 | 1.9 | 4.67 | 600 | ||
| M254R | 65 | - | 55 | - | 100 | - | 1.5 | 1.9 | - | 600 | ||
| M262R | 75 | - | 48 | - | 138 | - | 1.5 | 1.9 | - | 600 | ||
| Hot pressed graphite | M353 | - | 45 | - | 45 | - | 120 | - | 1.0 | 1.75 | - | 100 |
| M352 | - | 35 | - | 35 | - | 80 | - | 1.0 | 1.75 | - | 100 | |
| M356 | - | 50 | - | 50 | - | 140 | - | 1.0 | 1.75 | - | 100 | |
| M357 | - | 40 | - | 40 | - | 80 | - | 1.0 | 1.75 | 9.0 | 100 | |

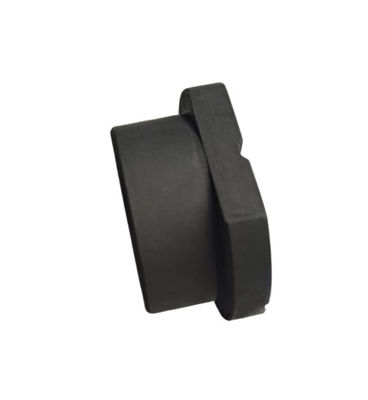

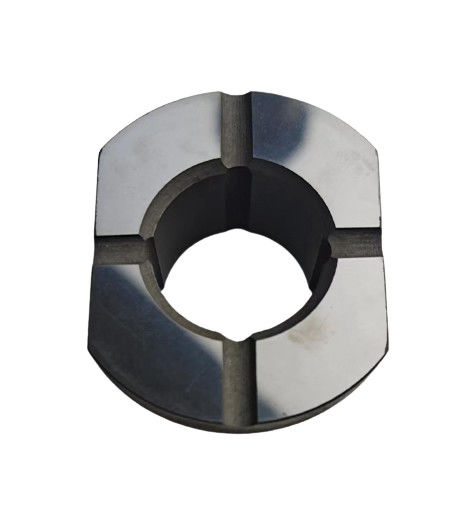

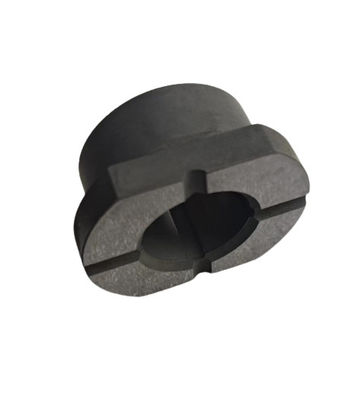

Photos for products and factory:
Glass-impregnated graphite bushings, also known as glass-reinforced graphite bushings, are specialized types of bearings that offer unique properties and are used in various industrial applications.
Glass-impregnated graphite bushings offer a combination of excellent thermal properties, chemical resistance, and self-lubricating capabilities, making them ideal for demanding applications in various industries. It's important to consider specific requirements and consult with experts or manufacturers to ensure the right type of bushing is selected for a particular application.
All items are packaged securely and safe for shipping and will be shipped via standard ground shipping.
