Product Details:
|
| Density: | 1.58-2.40 G/cm3 | Size: | Customized |
|---|---|---|---|
| Chemical Composition: | Carbon>99% | Application: | Machinery Industry |
| Temperature: | 200-600 Celsius | Design: | OEM&ODM |
| High Light: | High Purity Graphite Impregnated Bushings,OEM Graphite Impregnated Bushings,ODM high temperature bushing |
||
High Purity Graphite Impregnated Bushings High Temperature Artificial Bearings
Graphite Bushings :
* Graphite bushings is lubricant parts commonly used in industrial machinery.
* The bushings are the sliding parts which is commonly used in industrial machinery, materials such as metal, nonmetal and composite materials. * Graphite bearing has the superior properties such as self-lubricating, qualitative light, high temperature resistant, corrosion resistance etc.
Graphite Bushing Advantage
1. High temperature resistance
2. Good lubrication property
3. Good sealing performance
4. Excellent oil resistance
5. Anti-aging, good flexibility, good elasticity
6. Excellent shock resistant and tear resistant
Product design and processing: provide drawings or samples, we make graphite products according to your requirements.
Technical Performance for Materials
| Category | Model | Impregnant | Shore Hardess | Flexural Strength | Compressive Strength | Porosity | Bulk Density | Thermal expansion coeffcient | Temp. | |||
| ≥ | `X | ≥MPa | `X | ≥MPa | `X | ≤% | g/cm3 | 10-6/℃ | ℃ | |||
| Graphite | M120 | - | 60 | - | 25 | - | 81 | - | 18 | 1.6 | 4 | 350 |
| M154 | - | 40 | - | 20 | - | 40 | - | 28 | 1.42 | - | 350 | |
| M254 | - | 10 | - | 25 | - | 45 | - | 25 | 1.65 | 3.4 | 450 | |
| Impregnated resin carbon graphite | M106H | Epoxy resin | 75 | 90 | 51 | 60 | 180 | 190 | 1.0 | 1.62 | 4.8 | 200 |
| M238H | 40 | 55 | 39 | 50 | 78 | 110 | 1.0 | 1.85 | 4.5 | 250 | ||
| M255H | 40 | 50 | 34 | 45 | 78 | 90 | 1.0 | 1.8 | 4.5 | 200 | ||
| M106K | Furan resin | 80 | 95 | 55 | 65 | 200 | 210 | 2.0 | 1.62 | - | 200 | |
| M120K | 75 | 95 | 50 | 60 | 190 | 195 | 2.0 | 1.7 | 200 | |||
| M154K | 60 | 35 | 70 | 6.0 | 1.6 | 200 | ||||||
| M158K | 80 | 90 | 54 | 60 | 200 | 210 | 1.2 | 1.65 | - | 200 | ||
| Impregnated metal carbon graphite | M106D | Antimony alloy | 75 | - | 55 | 65 | 170 | 190 | 3 | 2.2 | 5.0 | 500 |
| M120D | 70 | - | 50 | 60 | 140 | 160 | 3 | 2.2 | 5.0 | 500 | ||
| M254D | 35 | - | 35 | - | 65 | - | 3 | 2.2 | 4.5 | 500 | ||
| M120P | Copper alloy | 65 | - | 65 | - | 200 | - | 3 | 2.4 | - | 400 | |
| Impregnated glass carbon graphite | M106R | Glass | 110 | - | 75 | - | 210 | - | 1.5 | 1.9 | 4.67 | 600 |
| M120R | 95 | - | 57 | - | 190 | - | 1.5 | 1.9 | 4.67 | 600 | ||
| M254R | 65 | - | 55 | - | 100 | - | 1.5 | 1.9 | - | 600 | ||
| M262R | 75 | - | 48 | - | 138 | - | 1.5 | 1.9 | - | 600 | ||

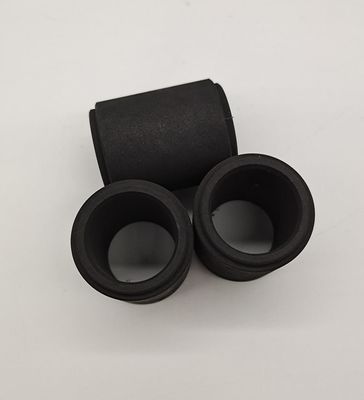

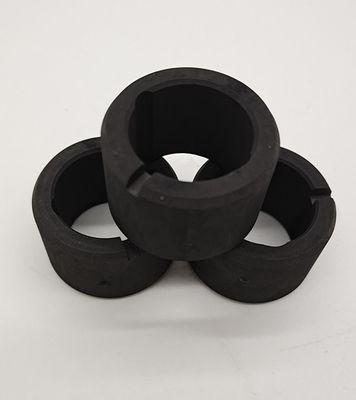

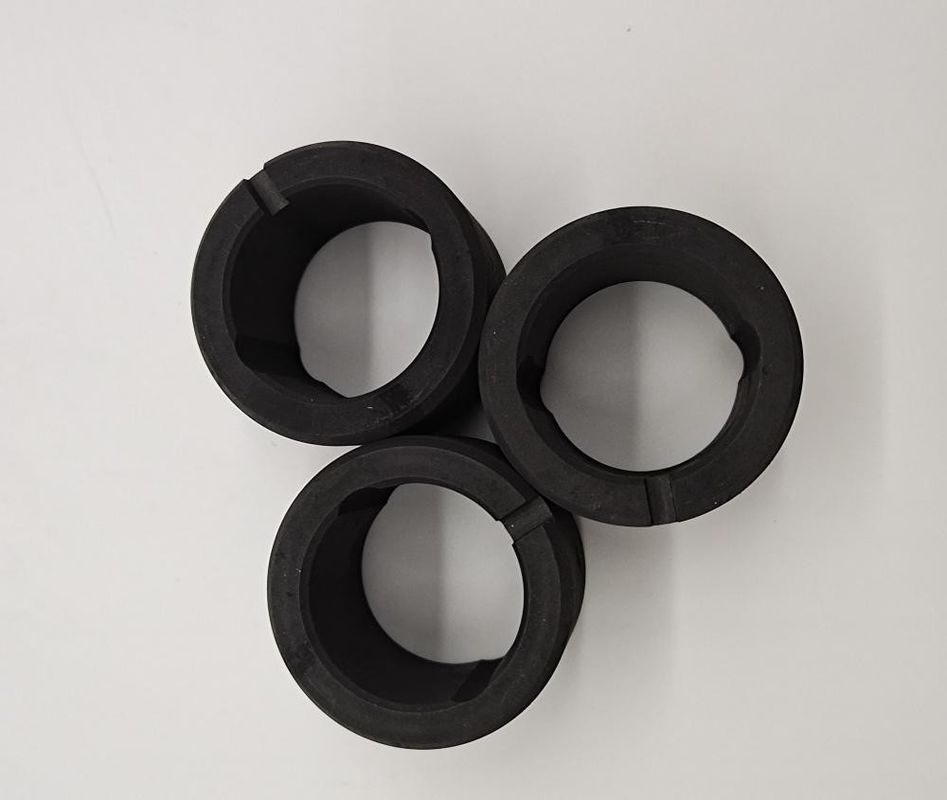

Photos of Product
6.What advantages do you have?
A: We are the direct Manufacturer in China and could offer you the most competitive price.
B: We are the Factory, and we have the ability to carry out production schedule for punctual
delivery.
C: We could make products according to your requirments.
D: We can provide free samples for quality evaluation.
