1.58-2.40G/Cm3 Graphite Bushes Self Lubricating Sleeve Bushings

1.58-2.40G/Cm3 Graphite Bushes Self Lubricating Sleeve Bushings
1.58-2.40G/Cm3 Graphite Bushes Self Lubricating Sleeve Bushings
1.58-2.40G/Cm3 Graphite Bushes Self Lubricating Sleeve Bushings 1.58-2.40G/Cm3 Graphite Bushes Self Lubricating Sleeve Bushings 1.58-2.40G/Cm3 Graphite Bushes Self Lubricating Sleeve Bushings 1.58-2.40G/Cm3 Graphite Bushes Self Lubricating Sleeve Bushings 1.58-2.40G/Cm3 Graphite Bushes Self Lubricating Sleeve Bushings

Large Image :  1.58-2.40G/Cm3 Graphite Bushes Self Lubricating Sleeve Bushings

Product Details:
Place of Origin: China
Brand Name: Haicheng
Certification: ISO9001, ISO14000, IATF16949
Model Number: M120K, M120D, M120P
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiable
Packaging Details: Carton box, Wooden case or packed as per required
Delivery Time: 15-25 days
Payment Terms: T/T,L/C, D/A, D/P,
Supply Ability: 200000 pcs per month

1.58-2.40G/Cm3 Graphite Bushes Self Lubricating Sleeve Bushings

Description
Material Density: 1.58-2.40G/cm3 Chemical Composition: Carbon>99%
Compressive Strength:: Industrial Grade Product Features: High Performance
Product Size: Customized Delivery Method: By Sea, By Air
High Light:

2.40G/Cm3 graphite bushes

,

graphite bushes Self Lubricating

,

2.40G/Cm3 Self Lubricating Sleeve Bushings



Self Lubrication Carbon Impregnated Bushings High Temperture Resisitance



Feature:



1. Thermal stability: we will specially design the production procedure according to the quench acute thermal using conditions of graphite crucible, so as to ensure the reliability of product quality.

2. Corrosion resistance: Even and fine basic design will delay the erosion of crucible.


3. Impact resistance: Graphite crucible can bear high thermal impact, so any process can be carried out.


4. Acid resistance: The adding of special materials will greatly improve the quality of crucible, especially its index of acid resistance and will prolong the service life of graphite crucible.


5. High heat Conduction: High content of fixed carbon ensures the good heat conduction, shorten the time of dissolution, and remarkably reduce the energy consumption.


6. Control of metal pollution: The component of material under strict control will ensure that graphite crucible will not pollute the metals when dissolving.


7. Quality stability: The process technology of forming under high pressure and quality guarantee system will fully ensure the stability of quality





Physical Properties of Carbon Graphite Material



Category Model Impregnant Shore Hardess Flexural Strength Compressive Strength Porosity Bulk Density Thermal expansion coeffcient Temp.
`X ≥MPa `X ≥MPa `X % g/cm3 10-6/
Graphite M120 - 60 - 25 - 81 - 18 1.6 4 350
M154 - 40 - 20 - 40 - 28 1.42 - 350
M254 - 10 - 25 - 45 - 25 1.65 3.4 450
Impregnated resin carbon graphite M106H Epoxy resin 75 90 51 60 180 190 1.0 1.62 4.8 200
M238H 40 55 39 50 78 110 1.0 1.85 4.5 250
M255H 40 50 34 45 78 90 1.0 1.8 4.5 200
M106K Furan resin 80 95 55 65 200 210 2.0 1.62 - 200
M120K 75 95 50 60 190 195 2.0 1.7   200
M154K 60   35   70   6.0 1.6   200
M158K 80 90 54 60 200 210 1.2 1.65 - 200
Impregnated metal carbon graphite M106D Antimony alloy 75 - 55 65 170 190 3 2.2 5.0 500
M120D 70 - 50 60 140 160 3 2.2 5.0 500
M254D 35 - 35 - 65 - 3 2.2 4.5 500
M120P Copper alloy 65 - 65 - 200 - 3 2.4 - 400
Impregnated glass carbon graphite M106R Glass 110 - 75 - 210 - 1.5 1.9 4.67 600
M120R 95 - 57 - 190 - 1.5 1.9 4.67 600
M254R 65 - 55 - 100 - 1.5 1.9 - 600
M262R 75 - 48 - 138 - 1.5 1.9 - 600



1.58-2.40G/Cm3 Graphite Bushes Self Lubricating Sleeve Bushings 01.58-2.40G/Cm3 Graphite Bushes Self Lubricating Sleeve Bushings 1

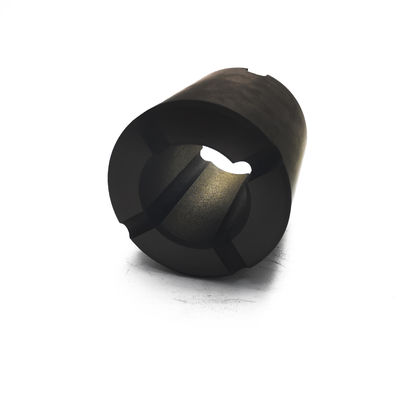

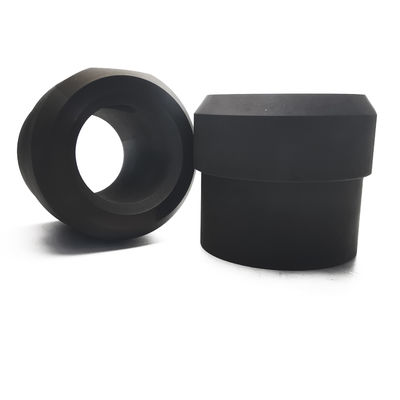

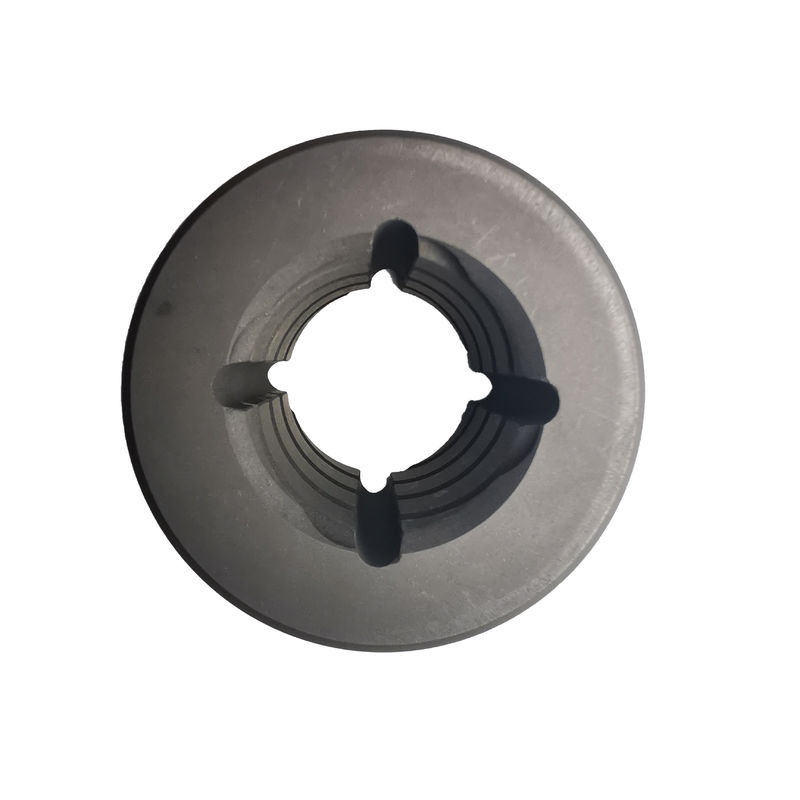

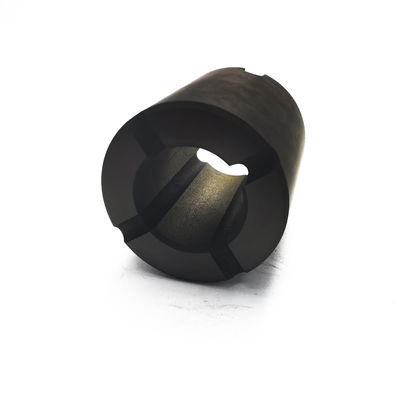

Photos of Product








Company Introduction



Sichuan Haicheng Carbon Products Co.,Ltd. Is a professional enterprise engaged in research, design and production of electrical carbon products,graphite products and mechanical seals.



We have nearly 200 employees, 55% of them have advanced degrees. Among them there are 20 engineers and technicians, their 20% of the total number of employees.



The company is equipped with more than 200 processing equipment and testing equipment, such as CNC lathe,CNC automatic production lines. CNC engraving and milling machines, CNC vertical milling machines and etc. The production capacity is 2.2 million sets of various types.



The company has a group of strong professional research and development team, has professional testing equipment and testing method, Carry out random inspection of incoming materials, and take self-inspection, first inspection, patrol inspection, and random inspection of products in the production process to ensure that the products meet the qualified standards.



The company strengthens product structure adjustment and transformation and upgrading, continuously increases R&D investment, integrates new processes and products to build and improve the industrial chain, provides customers with better products and services, and meets the company's production and development needs.



DELIVERY TIME:

15-20 days after confirming order,detail delivery date should be decided according toproduction season and order quantity


FAQ


What is your MOQ?
There is no limit for MOQ.



When can i get the price?
We usually quote within 24 hours after getting your detailed requirements,like size, quantity etc.

Do you provide samples?
Yes, samples are available for you to check our quality. it will on your expense.

What about the lead time for mass product?
The lead time is based on the quantity, 25-30 days for regular products.

What is your terms of delivery?
We accept FOB, CFR, CIF, EXW, etc. You can choose the most convenient way for you.

What can you buy from us?
Carbon graphite bushings & bearings, seals, rods, plates,vanes.

Are you trading company or manufacturer?
We are professional manufacturer of carbon graphite products.
