Product Details:
|
| Application: | Machinery, Automotive, Aerospace | Compressive Strength: | ≥25Mpa |
|---|---|---|---|
| Density: | 1.8-2.2g/cm3 | Thermal Conductivity: | ≥30W/mK |
| Flexural Strength: | ≥20Mpa | Hardness: | HRC60-70 |
| Size: | Customized | Shape: | Bushings |
| High Light: | high demand graphite filled bushings,impregnated graphite filled bushings |
||

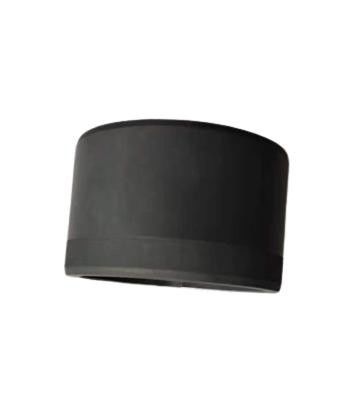

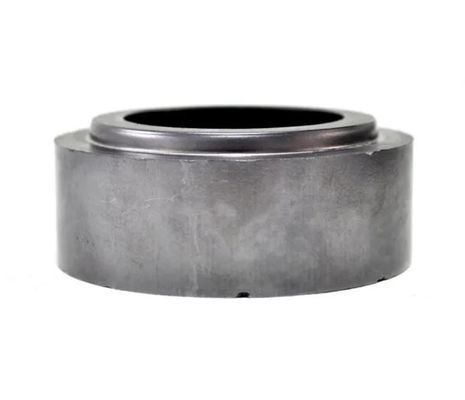

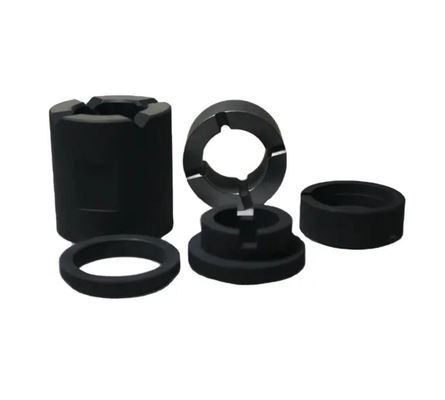

High Demand Graphite Impregnated Bushings Various Application
These bushings are designed to deliver superior performance in demanding applications. They are highly resistant to corrosion, wear, and heat, and can withstand high loads without compromising its strength and integrity. Carbon graphite bushings are also well suited for use as graphite bearings and are available in a variety of shapes and sizes to meet your specific needs.
At the same time, these bushings are lightweight and easy to install. They require minimal maintenance and provide an economical alternative to traditional metal bushings. Carbon graphite bushings are an excellent choice for a wide range of applications, from aerospace to automotive to machinery.
| Category | Model | Impregnant | Shore Hardess | Flexural Strength | Compressive Strength | Porosity | Bulk Density | Thermal expansion coeffcient | Temp. | |||
| ≥ | `X | ≥MPa | `X | ≥MPa | `X | ≤% | g/cm3 | 10-6/℃ | ℃ | |||
| Graphite | M120 | - | 60 | - | 25 | - | 81 | - | 18 | 1.6 | 4 | 350 |
| M154 | - | 40 | - | 20 | - | 40 | - | 28 | 1.42 | - | 350 | |
| M254 | - | 10 | - | 25 | - | 45 | - | 25 | 1.65 | 3.4 | 450 | |
| Impregnated resin carbon graphite | M106H | Epoxy resin | 75 | 90 | 51 | 60 | 180 | 190 | 1.0 | 1.62 | 4.8 | 200 |
| M238H | 40 | 55 | 39 | 50 | 78 | 110 | 1.0 | 1.85 | 4.5 | 250 | ||
| M255H | 40 | 50 | 34 | 45 | 78 | 90 | 1.0 | 1.8 | 4.5 | 200 | ||
| M106K | Furan resin | 80 | 95 | 55 | 65 | 200 | 210 | 2.0 | 1.62 | - | 200 | |
| M120K | 75 | 95 | 50 | 60 | 190 | 195 | 2.0 | 1.7 | 200 | |||
| M154K | 60 | 35 | 70 | 6.0 | 1.6 | 200 | ||||||
| M158K | 80 | 90 | 54 | 60 | 200 | 210 | 1.2 | 1.65 | - | 200 | ||
| Impregnated metal carbon graphite | M106D | Antimony alloy | 75 | - | 55 | 65 | 170 | 190 | 3 | 2.2 | 5.0 | 500 |
| M120D | 70 | - | 50 | 60 | 140 | 160 | 3 | 2.2 | 5.0 | 500 | ||
| M254D | 35 | - | 35 | - | 65 | - | 3 | 2.2 | 4.5 | 500 | ||
| M120P | Copper alloy | 65 | - | 65 | - | 200 | - | 3 | 2.4 | - | 400 | |
| Impregnated glass carbon graphite | M106R | Glass | 110 | - | 75 | - | 210 | - | 1.5 | 1.9 | 4.67 | 600 |
| M120R | 95 | - | 57 | - | 190 | - | 1.5 | 1.9 | 4.67 | 600 | ||
| M254R | 65 | - | 55 | - | 100 | - | 1.5 | 1.9 | - | 600 | ||
| M262R | 75 | - | 48 | - | 138 | - | 1.5 | 1.9 | - | 600 | ||
| Hot pressed graphite | M353 | - | 45 | - | 45 | - | 120 | - | 1.0 | 1.75 | - | 100 |
| M352 | - | 35 | - | 35 | - | 80 | - | 1.0 | 1.75 | - | 100 | |
| M356 | - | 50 | - | 50 | - | 140 | - | 1.0 | 1.75 | - | 100 | |
| M357 | - | 40 | - | 40 | - | 80 | - | 1.0 | 1.75 | 9.0 | 100 | |
Haicheng Carbon Graphite Bushings are widely used in various applications, such as pumps, motors, compressors, and other mechanical equipment. With high flexural strength of more than 20Mpa, compressive strength of 25Mpa, and hardness of HRC60-70, the Carbon Graphite Bushings are perfect for a variety of applications. The thermal expansion coefficient of 1.5-2.0×10-6/K ensures long lifespan of the bushings. The Carbon Graphite Bushings come in all sizes and shapes, and can be customized to meet any requirement. The products are certified by ISO9001,ISO14000,IAFT16949, which guarantees the quality and safety of the product. With a minimum order quantity of 10pcs, the price of the Carbon Graphite Bushings can be negociated. The products are delivered in either carton boxes, wooden cases, or pallets in 25-30 days after payment, and the supply ability is up to 100000pcs per month. The Carbon Graphite Bushings are ideal for use in water pumps, and other applications such as graphite bushings, graphite bearings, and carbon graphite bushing.
We provide customized Carbon Graphite Bushings with Haicheng brand name. Our Carbon Graphite Bushings are made of carbon graphite with high hardness of HRC60-70, density of 1.8-2.2g/cm3 and thermal conductivity of ≥30W/mK. They are widely used in machinery, automotive and aerospace.
We have obtained ISO9001, ISO14000, and IAFT16949 certifications. The minimum order quantity is 10pcs and the price is negotiable. We can supply up to 100000pcs per month. We offer packaging services such as carton box, wooden case, and pallet. Delivery time is 25-30 days and payment terms is T/T.
Our Carbon Graphite Bushings are also known as impregnated carbon bush and graphite bushing. They are also suitable for water pumps.
Carbon Graphite Bushings' Packaging and Shipping:
The product will be packaged with recyclable cardboard boxes. The box size is determined by the size and weight of the product. The box will be sealed with adhesive tape and labeled with the product name, company name, and destination address.
The product will be shipped via UPS or Fedex ground service. The estimated delivery time is 2-5 business days.
