0.02mm-4mm Fine Grain Carbon Graphite Blocks High Purity Rustproof

0.02mm-4mm Fine Grain Carbon Graphite Blocks High Purity Rustproof
0.02mm-4mm Fine Grain Carbon Graphite Blocks High Purity Rustproof 0.02mm-4mm Fine Grain Carbon Graphite Blocks High Purity Rustproof 0.02mm-4mm Fine Grain Carbon Graphite Blocks High Purity Rustproof 0.02mm-4mm Fine Grain Carbon Graphite Blocks High Purity Rustproof

Large Image :  0.02mm-4mm Fine Grain Carbon Graphite Blocks High Purity Rustproof

Product Details:
Place of Origin: China
Brand Name: Haicheng
Certification: ISO9001, ISO14000, IATF16949
Model Number: M120P
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiable
Packaging Details: Carton box, or packed as per required
Delivery Time: 15-20 days
Payment Terms: T/T,L/C, D/A, D/P,
Supply Ability: 200000 pcs per month

0.02mm-4mm Fine Grain Carbon Graphite Blocks High Purity Rustproof

Description
Material Density: 1.58-2.40 G/cm3 Chemical Composition: Carbon>99%
Product Size: Customized Grain Size: 0.02mm-4mm
Packaging: Carton Cases, Wooden Cases Compressive Strength:: Industrial Grade
High Light:

0.02mm Carbon Graphite Blocks

,

Carbon Graphite Blocks rustproof

,

0.02mm fine grain graphite block



High Quality Carbon Graphite Blocks High Purity And Density Fast Delivery



Blocks are making from high quality low ash raw materials under the impregnation and high temperature graphitization.

Its characteristics are good self-lubrication, high strength, impact resistance, wear resistance and excellent conductivity.



Graphite for Mechanical Usage

1. Self lubrication.

2. High temperature resistance.

3. Chemical Stability.

4. Heat shock resistance.

5. Conductive to Lightweight Design.



Application:

1.Electrodes / Vacuum furnace / Heaters / Heat shields /Electronic tube anodes / Melting and sintering moulds for various metals.

2.Used in steel-making in electric furnace,mineral hot furnace and electric resistance furnace.

3.Mold , Batteries, Alternator Brushes, Burner usage, Metallurgy, Semiconductor Manufacture, Aviatic application, Chemicals, Energy and Glass Industry etc.





Physical Properties of Carbon Graphite Material



Category Model Impregnant Shore Hardess Flexural Strength Compressive Strength Porosity Bulk Density Thermal expansion coeffcient Temp.
`X ≥MPa `X ≥MPa `X % g/cm3 10-6/
Graphite M120 - 60 - 25 - 81 - 18 1.6 4 350
M154 - 40 - 20 - 40 - 28 1.42 - 350
M254 - 10 - 25 - 45 - 25 1.65 3.4 450
Impregnated resin carbon graphite M106H Epoxy resin 75 90 51 60 180 190 1.0 1.62 4.8 200
M238H 40 55 39 50 78 110 1.0 1.85 4.5 250
M255H 40 50 34 45 78 90 1.0 1.8 4.5 200
M106K Furan resin 80 95 55 65 200 210 2.0 1.62 - 200
M120K 75 95 50 60 190 195 2.0 1.7   200
M154K 60   35   70   6.0 1.6   200
M158K 80 90 54 60 200 210 1.2 1.65 - 200
Impregnated metal carbon graphite M106D Antimony alloy 75 - 55 65 170 190 3 2.2 5.0 500
M120D 70 - 50 60 140 160 3 2.2 5.0 500
M254D 35 - 35 - 65 - 3 2.2 4.5 500
M120P Copper alloy 65 - 65 - 200 - 3 2.4 - 400
Impregnated glass carbon graphite M106R Glass 110 - 75 - 210 - 1.5 1.9 4.67 600
M120R 95 - 57 - 190 - 1.5 1.9 4.67 600
M254R 65 - 55 - 100 - 1.5 1.9 - 600
M262R 75 - 48 - 138 - 1.5 1.9 - 600

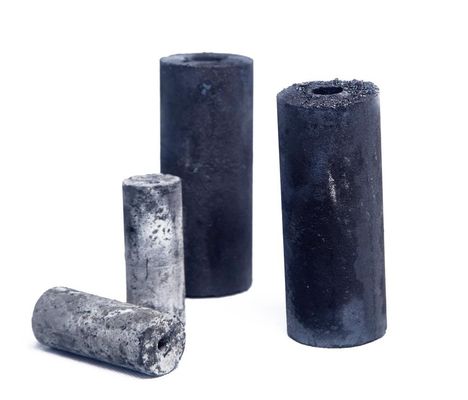

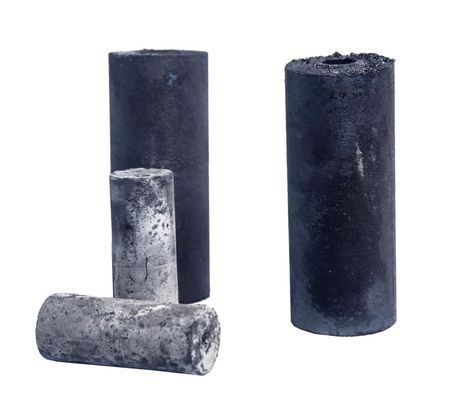

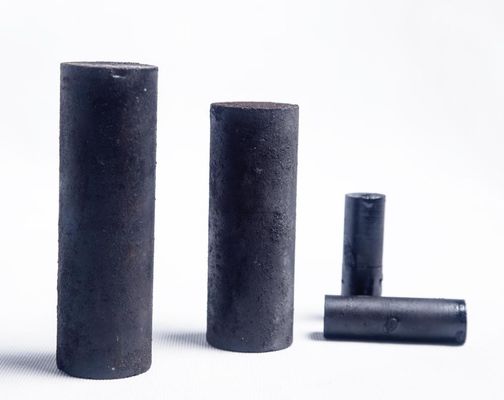

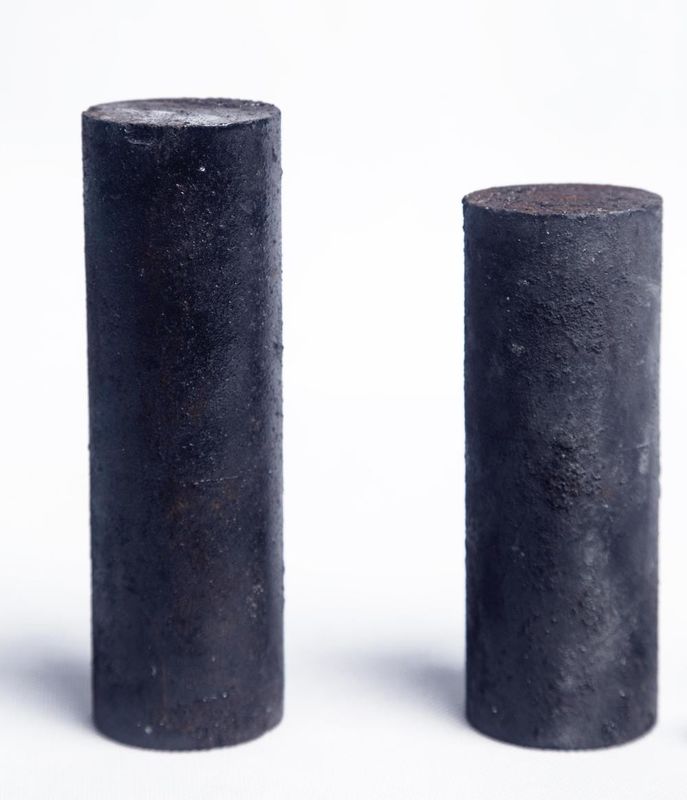

Photos of Product




0.02mm-4mm Fine Grain Carbon Graphite Blocks High Purity Rustproof 00.02mm-4mm Fine Grain Carbon Graphite Blocks High Purity Rustproof 1





DELIVERY TIME:

15-20 days after confirming order,detail delivery date should be decided according toproduction season and order quantity


FAQ


What is your MOQ?
There is no limit for MOQ.



When can i get the price?
We usually quote within 24 hours after getting your detailed requirements,like size, quantity etc.

Do you provide samples?
Yes, samples are available for you to check our quality. it will on your expense.

What about the lead time for mass product?
The lead time is based on the quantity, 25-30 days for regular products.

What is your terms of delivery?
We accept FOB, CFR, CIF, EXW, etc. You can choose the most convenient way for you.

What can you buy from us?
Carbon graphite bushings & bearings, seals, rods, plates,vanes.

Are you trading company or manufacturer?
We are professional manufacturer of carbon graphite products.
