Speciality Molded Carbon Graphite Blocks 10~50Mpa Flexural Strength Antiwear

Certification
China Sichuan Haicheng Carbon Products Co.,Ltd. certification
China Sichuan Haicheng Carbon Products Co.,Ltd. certification
Customer Reviews
Good product quality and prompt delivery time. professional communications.

—— Adrian

Professional R&D team, provide strong technical support and competitive prices, help us to win more market share.

—— Daniel

I'm Online Chat Now

Speciality Molded Carbon Graphite Blocks 10~50Mpa Flexural Strength Antiwear

Speciality Molded Carbon Graphite Blocks 10~50Mpa Flexural Strength Antiwear
Speciality Molded Carbon Graphite Blocks 10~50Mpa Flexural Strength Antiwear Speciality Molded Carbon Graphite Blocks 10~50Mpa Flexural Strength Antiwear Speciality Molded Carbon Graphite Blocks 10~50Mpa Flexural Strength Antiwear Speciality Molded Carbon Graphite Blocks 10~50Mpa Flexural Strength Antiwear

Large Image :  Speciality Molded Carbon Graphite Blocks 10~50Mpa Flexural Strength Antiwear

Product Details:
Place of Origin: China
Brand Name: Haicheng
Certification: ISO9001, ISO14000, IATF16949
Model Number: M120K, M120D, M120P
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiable
Packaging Details: Carton box, or packed as per required
Delivery Time: 15-20 days
Payment Terms: T/T,L/C, D/A, D/P,
Supply Ability: 100000 pcs per month

Speciality Molded Carbon Graphite Blocks 10~50Mpa Flexural Strength Antiwear

Description
Material Density: 1.6-1.9g/cm3 Chemical Composition: Carbon>99%
Compressive Strength:: Industrial Grade Application: Casting
Product Size: Customized Flexural Strength: 10~50Mpa Different Grades Available
High Light:

Carbon Graphite Blocks 50Mpa

,

Carbon Graphite Blocks Antiwear

,

solid graphite block Antiwear



High Demand Carbon Graphite Blocks Speciality Molded Synthetic Graphite



1. High temperature resistance: graphite melting point is 3850 + 50 ℃, boiling point is 4250 ℃, even by the ultra high temperature arc ignition, weight loss is small, thermal expansion coefficient is small.Graphite with temperature increase and strengthen the intensity, at 2000 ℃, the intensity of graphite double.

2. Conductivity:Graphite conducts electricity because each carbon atom in graphite forms only three covalent bonds with other carbon atoms, and each carbon atom still retains one free electron to transfer charge.

3. Lubricating property: the lubricating property of graphite depends on the size of graphite scales. The larger the scale, the smaller the friction coefficient and the better the lubricating property.

4. Chemical stability: graphite has good chemical stability at room temperature, acid, alkali and organic solvent corrosion resistance.

5. Plasticity: graphite has good toughness and can be ground into very thin sheets.



Physical Properties of Isostatic Graphite



Speciality Molded Carbon Graphite Blocks 10~50Mpa Flexural Strength Antiwear 0 Index Bulk Density Shore hardness Resistivity Flexural Strength Compressive Strength Thermal expansion coefficient Ash
Category   ≥g/cm3 ≥HS UΩ*m ≥MPa ≥MPa 10-6/℃ ≤ PPM
Cylinder Grade A 1.85 50 8-12 40 80 4.0 500/50
Grade B 1.8 45 8-12 35 70 3.8 500/50
Grade C 1.8 40 8-12 30 65 3.8 500/50
Cuboid Grade A 1.85 55 8-12 45 90 4 500/50
Grade B 1.8 50 8-12 40 80 3.9 500/50
Grade C 1.8 40 8-12 35 70 3.8 500/50



Physical Properties of Carbon Graphite Material



Category Model Impregnant Shore Hardess Flexural Strength Compressive Strength Porosity Bulk Density Thermal expansion coeffcient Temp.
`X ≥MPa `X ≥MPa `X % g/cm3 10-6/
Graphite M120 - 60 - 25 - 81 - 18 1.6 4 350
M154 - 40 - 20 - 40 - 28 1.42 - 350
M254 - 10 - 25 - 45 - 25 1.65 3.4 450
Impregnated resin carbon graphite M106H Epoxy resin 75 90 51 60 180 190 1.0 1.62 4.8 200
M238H 40 55 39 50 78 110 1.0 1.85 4.5 250
M255H 40 50 34 45 78 90 1.0 1.8 4.5 200
M106K Furan resin 80 95 55 65 200 210 2.0 1.62 - 200
M120K 75 95 50 60 190 195 2.0 1.7   200
M154K 60   35   70   6.0 1.6   200
M158K 80 90 54 60 200 210 1.2 1.65 - 200
Impregnated metal carbon graphite M106D Antimony alloy 75 - 55 65 170 190 3 2.2 5.0 500
M120D 70 - 50 60 140 160 3 2.2 5.0 500
M254D 35 - 35 - 65 - 3 2.2 4.5 500
M120P Copper alloy 65 - 65 - 200 - 3 2.4 - 400
Impregnated glass carbon graphite M106R Glass 110 - 75 - 210 - 1.5 1.9 4.67 600
M120R 95 - 57 - 190 - 1.5 1.9 4.67 600
M254R 65 - 55 - 100 - 1.5 1.9 - 600
M262R 75 - 48 - 138 - 1.5 1.9 - 600

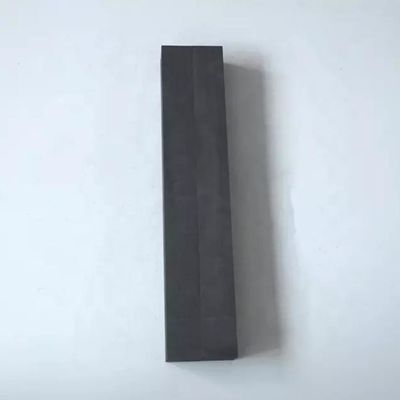

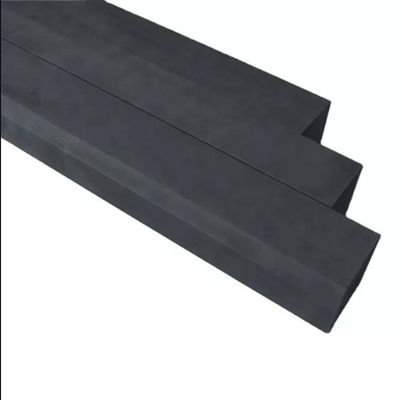

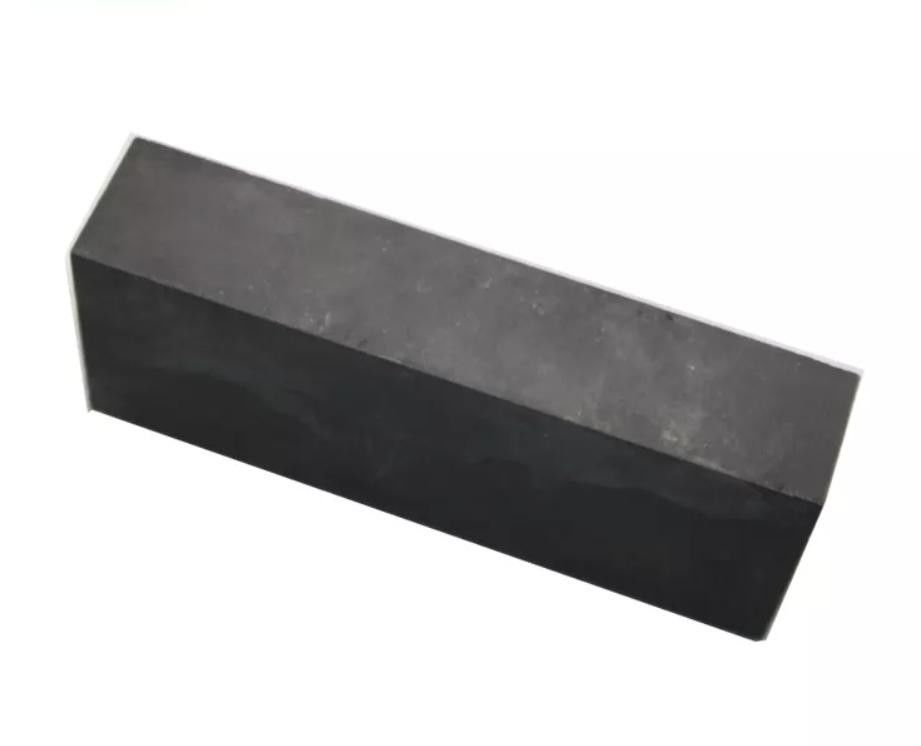

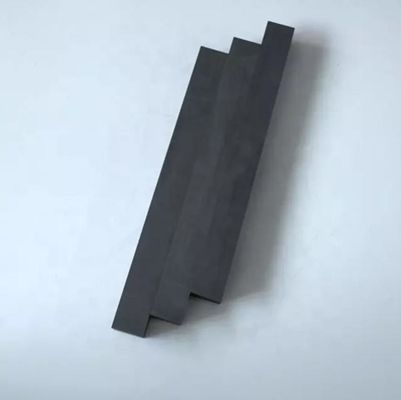

Photos of Product




Speciality Molded Carbon Graphite Blocks 10~50Mpa Flexural Strength Antiwear 1Speciality Molded Carbon Graphite Blocks 10~50Mpa Flexural Strength Antiwear 2



Company Introduction



Sichuan Haicheng Carbon Products Co.,Ltd. Is a professional enterprise engaged in research, design and production of electrical carbon products,graphite products and mechanical seals.



We have nearly 200 employees, 55% of them have advanced degrees. Among them there are 20 engineers and technicians, their 20% of the total number of employees.



The company is equipped with more than 200 processing equipment and testing equipment, such as CNC lathe,CNC automatic production lines. CNC engraving and milling machines, CNC vertical milling machines and etc. The production capacity is 2.2 million sets of various types.



The company has a group of strong professional research and development team, has professional testing equipment and testing method, Carry out random inspection of incoming materials, and take self-inspection, first inspection, patrol inspection, and random inspection of products in the production process to ensure that the products meet the qualified standards.



The company strengthens product structure adjustment and transformation and upgrading, continuously increases R&D investment, integrates new processes and products to build and improve the industrial chain, provides customers with better products and services, and meets the company's production and development needs.



DELIVERY TIME:

15-20 days after confirming order,detail delivery date should be decided according toproduction season and order quantity


FAQ


What is your MOQ?
There is no limit for MOQ.



When can i get the price?
We usually quote within 24 hours after getting your detailed requirements,like size, quantity etc.

Do you provide samples?
Yes, samples are available for you to check our quality. it will on your expense.

What about the lead time for mass product?
The lead time is based on the quantity, 25-30 days for regular products.

What can you buy from us?
Carbon graphite bushings & bearings, seals, rods, plates,vanes.

Are you trading company or manufacturer?
We are professional manufacturer of carbon graphite products.
