Product Details:
|
| Bulk Density: | 1.6-1.9g/cm3 | Chemical Composition: | Carbon>99% |
|---|---|---|---|
| Compressive Strength:: | Industrial Grade | Material: | Isostatic |
| Product Size: | Customized | Flexural Strength: | 10~50Mpa Different Grades Available |
| High Light: | ISO14000 Carbon Graphite Blocks,Carbon Graphite Blocks High Temperature Resistance,large graphite block ISO14000 |
||
Large Size Carbon Graphite Blocks High Temperature Resistance Isostatic Blocks
Size and Shape
Rectangular and round shapes, with custom sizes.
A. Strict quality control and laboratory inspection from raw material, during production and before shipment to ensure consistent quality and stable supply.
B. Mature additional treatment to improve performances of anti-oxidation, anti-abrasion, hardness, reduce porosity to increase graphite using time.
C. Flexibility in avalability to select different sizes and grades according to customers' application.
D. Professional engineers with extensive experiences ready to provide best cost efficiency solution according to customers' application situation.
Physical Properties of Isostatic Graphite
 |
Index | Bulk Density | Shore hardness | Resistivity | Flexural Strength | Compressive Strength | Thermal expansion coefficient | Ash |
| Category | ≥g/cm3 | ≥HS | UΩ*m | ≥MPa | ≥MPa | 10-6/℃ | ≤ PPM | |
| Cylinder | Grade A | 1.85 | 50 | 8-12 | 40 | 80 | 4.0 | 500/50 |
| Grade B | 1.8 | 45 | 8-12 | 35 | 70 | 3.8 | 500/50 | |
| Grade C | 1.8 | 40 | 8-12 | 30 | 65 | 3.8 | 500/50 | |
| Cuboid | Grade A | 1.85 | 55 | 8-12 | 45 | 90 | 4 | 500/50 |
| Grade B | 1.8 | 50 | 8-12 | 40 | 80 | 3.9 | 500/50 | |
| Grade C | 1.8 | 40 | 8-12 | 35 | 70 | 3.8 | 500/50 |
Physical Properties of Carbon Graphite Material
| Category | Model | Impregnant | Shore Hardess | Flexural Strength | Compressive Strength | Porosity | Bulk Density | Thermal expansion coeffcient | Temp. | |||
| ≥ | `X | ≥MPa | `X | ≥MPa | `X | ≤% | g/cm3 | 10-6/℃ | ℃ | |||
| Graphite | M120 | - | 60 | - | 25 | - | 81 | - | 18 | 1.6 | 4 | 350 |
| M154 | - | 40 | - | 20 | - | 40 | - | 28 | 1.42 | - | 350 | |
| M254 | - | 10 | - | 25 | - | 45 | - | 25 | 1.65 | 3.4 | 450 | |
| Impregnated resin carbon graphite | M106H | Epoxy resin | 75 | 90 | 51 | 60 | 180 | 190 | 1.0 | 1.62 | 4.8 | 200 |
| M238H | 40 | 55 | 39 | 50 | 78 | 110 | 1.0 | 1.85 | 4.5 | 250 | ||
| M255H | 40 | 50 | 34 | 45 | 78 | 90 | 1.0 | 1.8 | 4.5 | 200 | ||
| M106K | Furan resin | 80 | 95 | 55 | 65 | 200 | 210 | 2.0 | 1.62 | - | 200 | |
| M120K | 75 | 95 | 50 | 60 | 190 | 195 | 2.0 | 1.7 | 200 | |||
| M154K | 60 | 35 | 70 | 6.0 | 1.6 | 200 | ||||||
| M158K | 80 | 90 | 54 | 60 | 200 | 210 | 1.2 | 1.65 | - | 200 | ||
| Impregnated metal carbon graphite | M106D | Antimony alloy | 75 | - | 55 | 65 | 170 | 190 | 3 | 2.2 | 5.0 | 500 |
| M120D | 70 | - | 50 | 60 | 140 | 160 | 3 | 2.2 | 5.0 | 500 | ||
| M254D | 35 | - | 35 | - | 65 | - | 3 | 2.2 | 4.5 | 500 | ||
| M120P | Copper alloy | 65 | - | 65 | - | 200 | - | 3 | 2.4 | - | 400 | |
| Impregnated glass carbon graphite | M106R | Glass | 110 | - | 75 | - | 210 | - | 1.5 | 1.9 | 4.67 | 600 |
| M120R | 95 | - | 57 | - | 190 | - | 1.5 | 1.9 | 4.67 | 600 | ||
| M254R | 65 | - | 55 | - | 100 | - | 1.5 | 1.9 | - | 600 | ||
| M262R | 75 | - | 48 | - | 138 | - | 1.5 | 1.9 | - | 600 | ||

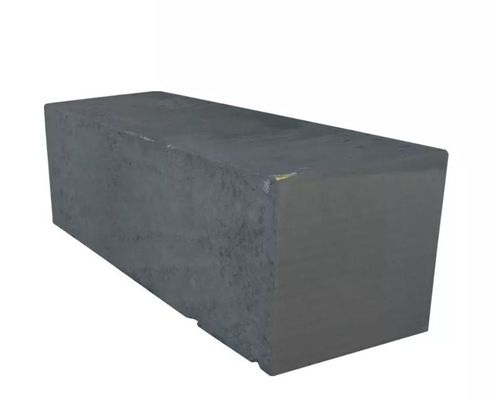

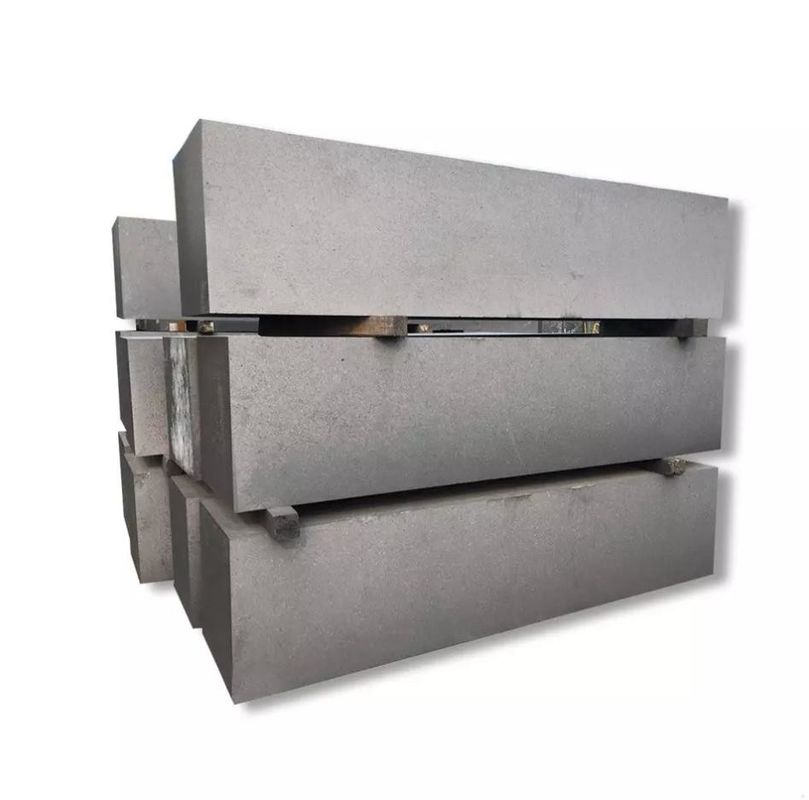

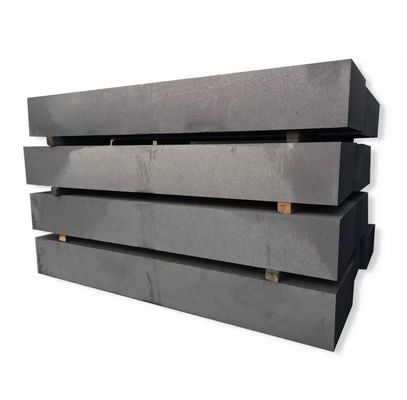

Photos of Product
Company Introduction
Sichuan Haicheng Carbon Products Co.,Ltd. Is a professional enterprise engaged in research, design and production of electrical carbon products,graphite products and mechanical seals.
We have nearly 200 employees, 55% of them have advanced degrees. Among them there are 20 engineers and technicians, their 20% of the total number of employees.
The company is equipped with more than 200 processing equipment and testing equipment, such as CNC lathe,CNC automatic production lines. CNC engraving and milling machines, CNC vertical milling machines and etc. The production capacity is 2.2 million sets of various types.
The company has a group of strong professional research and development team, has professional testing equipment and testing method, Carry out random inspection of incoming materials, and take self-inspection, first inspection, patrol inspection, and random inspection of products in the production process to ensure that the products meet the qualified standards.
The company strengthens product structure adjustment and transformation and upgrading, continuously increases R&D investment, integrates new processes and products to build and improve the industrial chain, provides customers with better products and services, and meets the company's production and development needs.
15-20 days after confirming order,detail delivery date should be decided according toproduction season and order quantity
