Product Details:
|
| Material Density: | 1.58-2.40 G/cm3 | Chemical Composition: | Carbon>99% |
|---|---|---|---|
| Product Size: | Customized | Grain Size: | 0.02mm-4mm |
| Packaging: | Carton Cases, Wooden Cases | Compressive Strength:: | Industrial Grade |
| High Light: | Self Lubrication Graphite Lubricant Block,Graphite Lubricant Block wear resisting,graphite lubricant rod Wear Resisting |
||
High Purity Carbon Graphite Blocks Isostatic Graphite Rods Various Sizes
Blocks are making from high quality low ash raw materials under the impregnation and high temperature graphitization.
Its characteristics are good self-lubrication, high strength, impact resistance, wear resistance and excellent conductivity.
Graphite for Mechanical Usage
1. Self lubrication.
2. High temperature resistance.
3. Chemical Stability.
4. Heat shock resistance.
5. Conductive to Lightweight Design.
Application:
1.Electrodes / Vacuum furnace / Heaters / Heat shields /Electronic tube anodes / Melting and sintering moulds for various metals.
2.Used in steel-making in electric furnace,mineral hot furnace and electric resistance furnace.
3.Mold , Batteries, Alternator Brushes, Burner usage, Metallurgy, Semiconductor Manufacture, Aviatic application, Chemicals, Energy and Glass Industry etc.
Physical Properties of Carbon Graphite Material
| Category | Model | Impregnant | Shore Hardess | Flexural Strength | Compressive Strength | Porosity | Bulk Density | Thermal expansion coeffcient | Temp. | |||
| ≥ | `X | ≥MPa | `X | ≥MPa | `X | ≤% | g/cm3 | 10-6/℃ | ℃ | |||
| Graphite | M120 | - | 60 | - | 25 | - | 81 | - | 18 | 1.6 | 4 | 350 |
| M154 | - | 40 | - | 20 | - | 40 | - | 28 | 1.42 | - | 350 | |
| M254 | - | 10 | - | 25 | - | 45 | - | 25 | 1.65 | 3.4 | 450 | |
| Impregnated resin carbon graphite | M106H | Epoxy resin | 75 | 90 | 51 | 60 | 180 | 190 | 1.0 | 1.62 | 4.8 | 200 |
| M238H | 40 | 55 | 39 | 50 | 78 | 110 | 1.0 | 1.85 | 4.5 | 250 | ||
| M255H | 40 | 50 | 34 | 45 | 78 | 90 | 1.0 | 1.8 | 4.5 | 200 | ||
| M106K | Furan resin | 80 | 95 | 55 | 65 | 200 | 210 | 2.0 | 1.62 | - | 200 | |
| M120K | 75 | 95 | 50 | 60 | 190 | 195 | 2.0 | 1.7 | 200 | |||
| M154K | 60 | 35 | 70 | 6.0 | 1.6 | 200 | ||||||
| M158K | 80 | 90 | 54 | 60 | 200 | 210 | 1.2 | 1.65 | - | 200 | ||
| Impregnated metal carbon graphite | M106D | Antimony alloy | 75 | - | 55 | 65 | 170 | 190 | 3 | 2.2 | 5.0 | 500 |
| M120D | 70 | - | 50 | 60 | 140 | 160 | 3 | 2.2 | 5.0 | 500 | ||
| M254D | 35 | - | 35 | - | 65 | - | 3 | 2.2 | 4.5 | 500 | ||
| M120P | Copper alloy | 65 | - | 65 | - | 200 | - | 3 | 2.4 | - | 400 | |
| Impregnated glass carbon graphite | M106R | Glass | 110 | - | 75 | - | 210 | - | 1.5 | 1.9 | 4.67 | 600 |
| M120R | 95 | - | 57 | - | 190 | - | 1.5 | 1.9 | 4.67 | 600 | ||
| M254R | 65 | - | 55 | - | 100 | - | 1.5 | 1.9 | - | 600 | ||
| M262R | 75 | - | 48 | - | 138 | - | 1.5 | 1.9 | - | 600 | ||

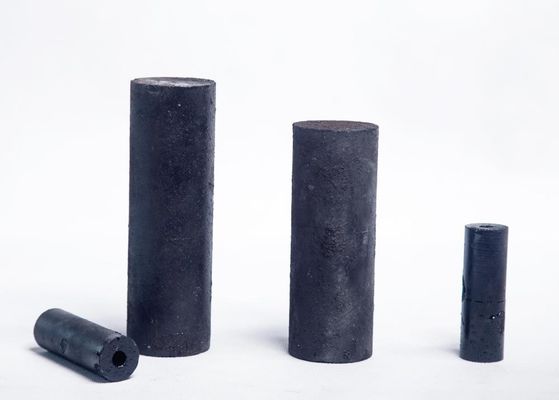

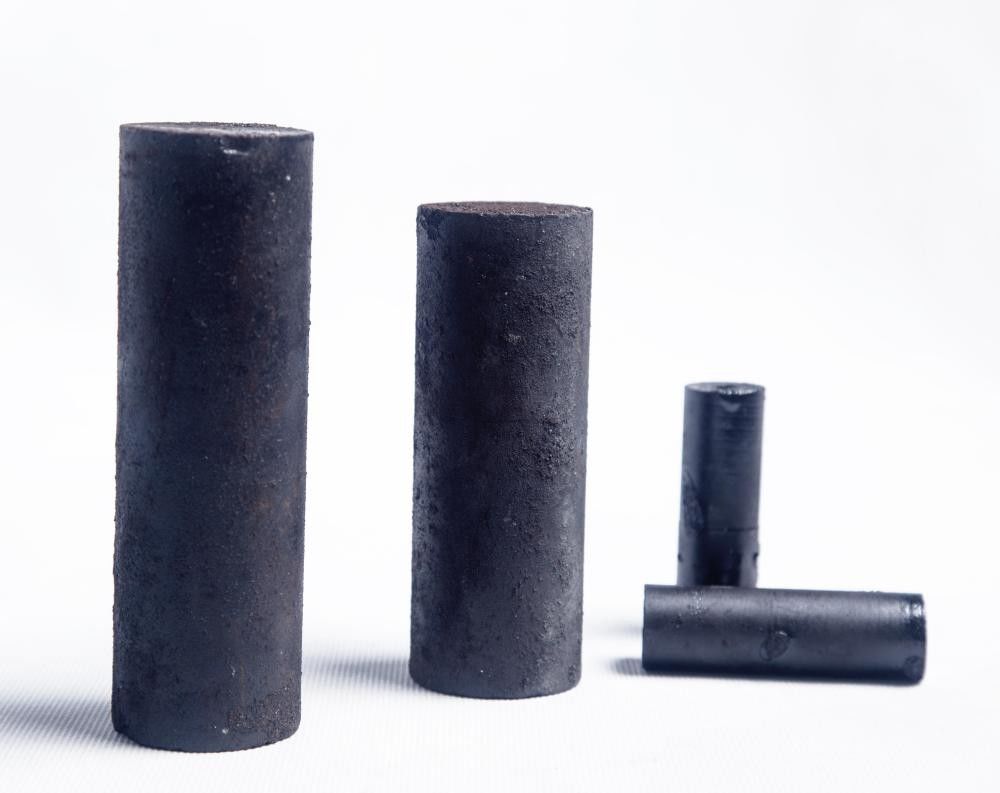

Photos of Product
15-20 days after confirming order,detail delivery date should be decided according toproduction season and order quantity
