Automotive Air Pump Carbon Graphite Rotor Anti Oxidation Epoxy Resin

Large Image : Automotive Air Pump Carbon Graphite Rotor Anti Oxidation Epoxy Resin

Product Details:

Place of Origin:	China
Brand Name:	Haicheng
Certification:	ISO9001, ISO14000, IATF16949
Model Number:	M120P

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	USD5.00-USD20.00 per piece
Packaging Details:	Carton box, or packed as per required
Delivery Time:	15-20 days
Payment Terms:	T/T,L/C, D/A, D/P,
Supply Ability:	200000 pcs per month

Contact Now

Automotive Air Pump Carbon Graphite Rotor Anti Oxidation Epoxy Resin

Description

Material Density:	1.58-2.40 G/cm3	Chemical Composition:	Carbon>99%
Product Size:	Customized	Grain Size:	0.02mm-4mm
Application:	Foundry Coke Replacement	Compressive Strength::	Industrial Grade
High Light:	Carbon Graphite Rotor Anti Oxidation , Air Pump Carbon Graphite Rotor , vacuum pump rotor Anti Oxidation

Automotive Air Pump Carbon Graphite Rotor Anti-Oxidation Epoxy Resin

Graphite for Mechanical Usage

1. Self lubrication.

2. High temperature resistance.

3. Chemical Stability.

4. Heat shock resistance.

5. Conductive to Lightweight Design.

Application
Graphite materials used for mechanical automotive,electrical,petrochemical and machinery industries,to provide the necessarycarbon graphite components;mainly used in dry rotary vane compressors and vacuum pumps;rotary compressor,screw compressor,fan,and the radial axis with sealing ring and sealingrings;oil-free piston compressor sealed with graphite piston and rod guide ring;mechanical seals,axial end with ball valveseals;liquid medium transmission with graphite bearings,seals,combination seals,rotary vane,rotor and hub and so on.

Our Metal or Resin Impregnated Graphite Parts are widely used in equipments of modern industry, such as seal rings for centrifugal pumps reacting kettle for chemical engineering, hydraulic generators and rotate baking furnaces; piston rings and bushings for compressors oxygen machines and bellows, bearings for screen motors and other types of instruments; slides for motors, subways and mine brushes of electrical machinery and slides for trolleybuses, etc.

Physical Properties of Isostatic Graphite

Category	Model	Impregnant	Shore Hardess		Flexural Strength		Compressive Strength		Porosity	Bulk Density	Thermal expansion coeffcient	Temp.
Category	Model	Impregnant	≥	`X	≥MPa	`X	≥MPa	`X	≤%	g/cm3	10-6/℃	℃
Graphite	M120	-	60	-	25	-	81	-	18	1.6	4	350
	M154	-	40	-	20	-	40	-	28	1.42	-	350
	M254	-	10	-	25	-	45	-	25	1.65	3.4	450
Impregnated resin carbon graphite	M106H	Epoxy resin	75	90	51	60	180	190	1.0	1.62	4.8	200
	M238H		40	55	39	50	78	110	1.0	1.85	4.5	250
	M255H		40	50	34	45	78	90	1.0	1.8	4.5	200
	M106K	Furan resin	80	95	55	65	200	210	2.0	1.62	-	200
	M120K		75	95	50	60	190	195	2.0	1.7		200
	M154K		60		35		70		6.0	1.6		200
	M158K		80	90	54	60	200	210	1.2	1.65	-	200
Impregnated metal carbon graphite	M106D	Antimony alloy	75	-	55	65	170	190	3	2.2	5.0	500
	M120D		70	-	50	60	140	160	3	2.2	5.0	500
	M254D		35	-	35	-	65	-	3	2.2	4.5	500
	M120P	Copper alloy	65	-	65	-	200	-	3	2.4	-	400
Impregnated glass carbon graphite	M106R	Glass	110	-	75	-	210	-	1.5	1.9	4.67	600
	M120R		95	-	57	-	190	-	1.5	1.9	4.67	600
	M254R		65	-	55	-	100	-	1.5	1.9	-	600
	M262R		75	-	48	-	138	-	1.5	1.9	-	600

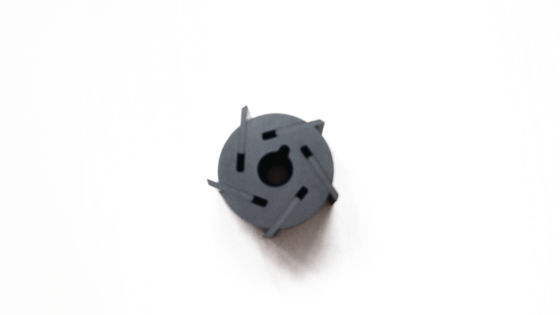

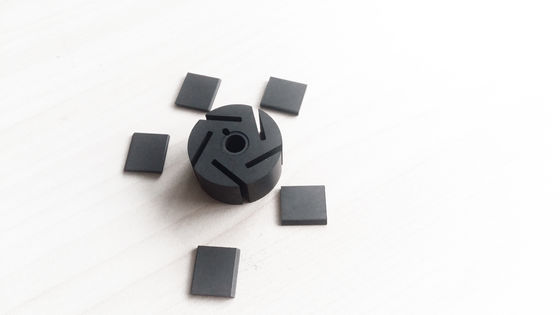

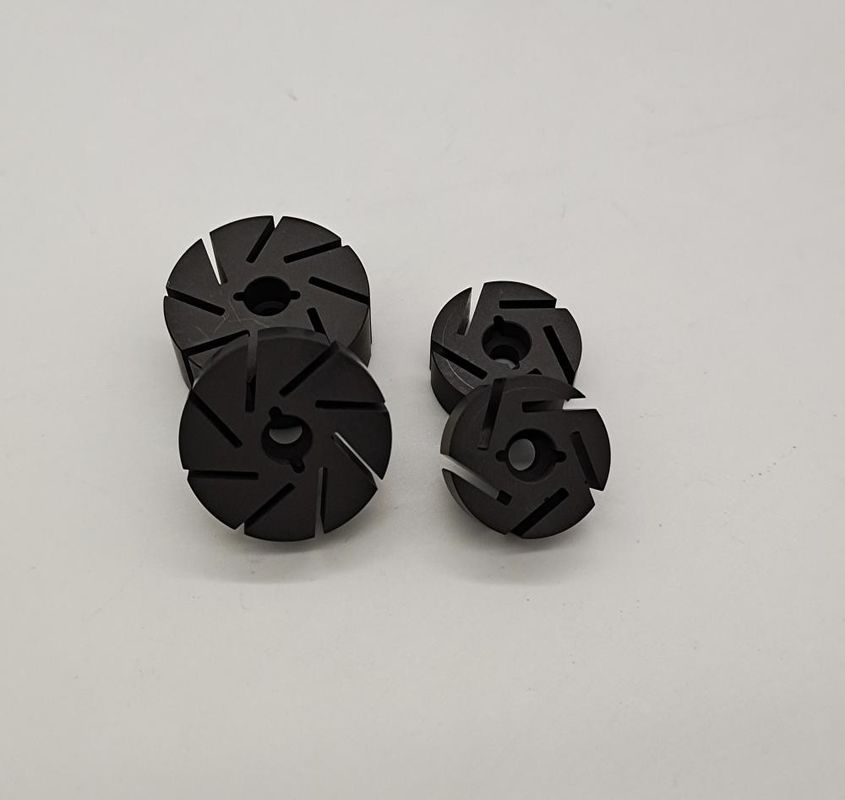

Photos of Product

Automotive Air Pump Carbon Graphite Rotor Anti Oxidation Epoxy Resin 0

DELIVERY TIME:

15-20 days after confirming order,detail delivery date should be decided according toproduction season and order quantity

FAQ

What is your MOQ?
There is no limit for MOQ.

When can i get the price?
We usually quote within 24 hours after getting your detailed requirements,like size, quantity etc.

Do you provide samples?
Yes, samples are available for you to check our quality. it will on your expense.

What about the lead time for mass product?
The lead time is based on the quantity, 25-30 days for regular products.

What is your terms of delivery?
We accept FOB, CFR, CIF, EXW, etc. You can choose the most convenient way for you.

What can you buy from us?

Carbon graphite bushings & bearings, seals, rods, plates,vanes.
