Product Details:
|
| Special Treatment: | Anti-oxidation Treatment | Bending Strength: | ≥12.5MPa |
|---|---|---|---|
| Compressive Strength:: | Industrial Grade | Shape: | Rotor And Shaft |
| Application: | Aluminium Dehydrogenation Or In The Pumps | Size: | Customized |
| Highlight: | Aluminium Degassing Carbon Graphite Rotor,Anti Oxidation Carbon Graphite Rotor,Anti Oxidation degassing rotor |
||
Various Kinds Of Carbon Graphite Rotor For Aluminium Degassing And Purification
Material
1.Density:1.95-2.00g/cm3
2.Compressive strength:80Mpa
3.Ash content:0.20%
4.Dimension: As your drawing or sample or your given requirements.
Graphite Material with Resin, Antimony, Babbitt, Bronze, ect Impregnation are available. The best grade material will be recommended as customer's actual applications.
Physical Properties of Carbon Graphite Material
| Category | Model | Impregnant | Shore Hardess | Flexural Strength | Compressive Strength | Porosity | Bulk Density | Thermal expansion coeffcient | Temp. | |||
| ≥ | `X | ≥MPa | `X | ≥MPa | `X | ≤% | g/cm3 | 10-6/℃ | ℃ | |||
| Graphite | M120 | - | 60 | - | 25 | - | 81 | - | 18 | 1.6 | 4 | 350 |
| M154 | - | 40 | - | 20 | - | 40 | - | 28 | 1.42 | - | 350 | |
| M254 | - | 10 | - | 25 | - | 45 | - | 25 | 1.65 | 3.4 | 450 | |
| Impregnated resin carbon graphite | M106H | Epoxy resin | 75 | 90 | 51 | 60 | 180 | 190 | 1.0 | 1.62 | 4.8 | 200 |
| M238H | 40 | 55 | 39 | 50 | 78 | 110 | 1.0 | 1.85 | 4.5 | 250 | ||
| M255H | 40 | 50 | 34 | 45 | 78 | 90 | 1.0 | 1.8 | 4.5 | 200 | ||
| M106K | Furan resin | 80 | 95 | 55 | 65 | 200 | 210 | 2.0 | 1.62 | - | 200 | |
| M120K | 75 | 95 | 50 | 60 | 190 | 195 | 2.0 | 1.7 | 200 | |||
| M154K | 60 | 35 | 70 | 6.0 | 1.6 | 200 | ||||||
| M158K | 80 | 90 | 54 | 60 | 200 | 210 | 1.2 | 1.65 | - | 200 | ||
| Impregnated metal carbon graphite | M106D | Antimony alloy | 75 | - | 55 | 65 | 170 | 190 | 3 | 2.2 | 5.0 | 500 |
| M120D | 70 | - | 50 | 60 | 140 | 160 | 3 | 2.2 | 5.0 | 500 | ||
| M254D | 35 | - | 35 | - | 65 | - | 3 | 2.2 | 4.5 | 500 | ||
| M120P | Copper alloy | 65 | - | 65 | - | 200 | - | 3 | 2.4 | - | 400 | |
| Impregnated glass carbon graphite | M106R | Glass | 110 | - | 75 | - | 210 | - | 1.5 | 1.9 | 4.67 | 600 |
| M120R | 95 | - | 57 | - | 190 | - | 1.5 | 1.9 | 4.67 | 600 | ||
| M254R | 65 | - | 55 | - | 100 | - | 1.5 | 1.9 | - | 600 | ||
| M262R | 75 | - | 48 | - | 138 | - | 1.5 | 1.9 | - | 600 | ||
Physical Properties of Isostatic Graphite
 |
Index | Bulk Density | Shore hardness | Resistivity | Flexural Strength | Compressive Strength | Thermal expansion coefficient | Ash |
| Category | ≥g/cm3 | ≥HS | UΩ*m | ≥MPa | ≥MPa | 10-6/℃ | ≤ PPM | |
| Cylinder | Grade A | 1.85 | 50 | 8-12 | 40 | 80 | 4.0 | 500/50 |
| Grade B | 1.8 | 45 | 8-12 | 35 | 70 | 3.8 | 500/50 | |
| Grade C | 1.8 | 40 | 8-12 | 30 | 65 | 3.8 | 500/50 | |
| Cuboid | Grade A | 1.85 | 55 | 8-12 | 45 | 90 | 4 | 500/50 |
| Grade B | 1.8 | 50 | 8-12 | 40 | 80 | 3.9 | 500/50 | |
| Grade C | 1.8 | 40 | 8-12 | 35 | 70 | 3.8 | 500/50 |

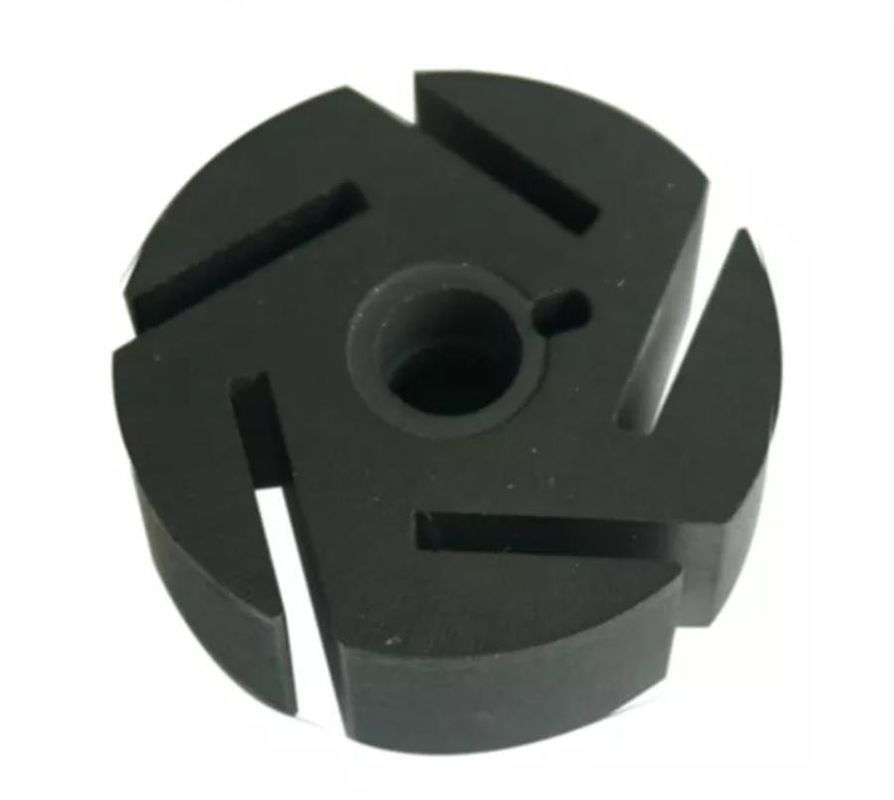

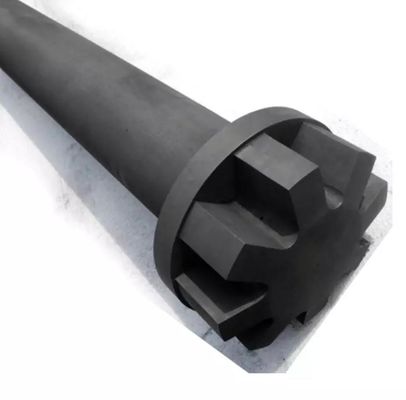

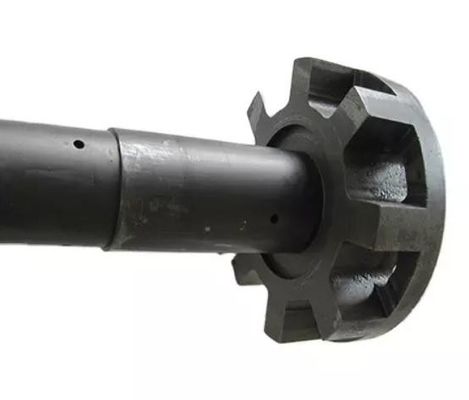

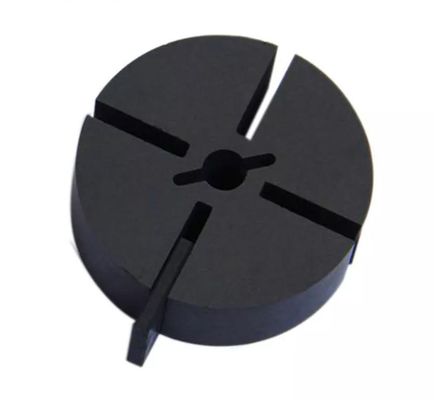

Photos of Product
Company Introduction
Sichuan Haicheng Carbon Products Co.,Ltd. Is a professional enterprise engaged in research, design and production of electrical carbon products,graphite products and mechanical seals.
We have nearly 200 employees, 55% of them have advanced degrees. Among them there are 20 engineers and technicians, their 20% of the total number of employees.
The company is equipped with more than 200 processing equipment and testing equipment, such as CNC lathe,CNC automatic production lines. CNC engraving and milling machines, CNC vertical milling machines and etc. The production capacity is 2.2 million sets of various types.
The company has a group of strong professional research and development team, has professional testing equipment and testing method, Carry out random inspection of incoming materials, and take self-inspection, first inspection, patrol inspection, and random inspection of products in the production process to ensure that the products meet the qualified standards.
The company strengthens product structure adjustment and transformation and upgrading, continuously increases R&D investment, integrates new processes and products to build and improve the industrial chain, provides customers with better products and services, and meets the company's production and development needs.
