Product Details:
|
| Materials: | Antimony Graphite,isostatic Graphite | Temperature Resistance Resistance: | 200-650℃ |
|---|---|---|---|
| Application: | Metallurgy Industry | Flexural Strength: | 20- 45 Mpa Different Grades Available |
| Lead Time: | 25-30 Days | Chemical Composition: | High Purity Graphite, Carbon>99% |
| High Light: | IATF16949 Carbon Graphite Rotors,Carbon Graphite Rotors Corrosion Proof,degassing rotor Corrosion Proof |
||

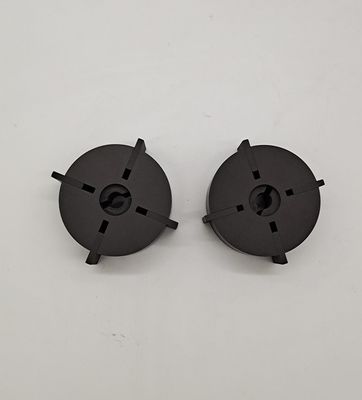

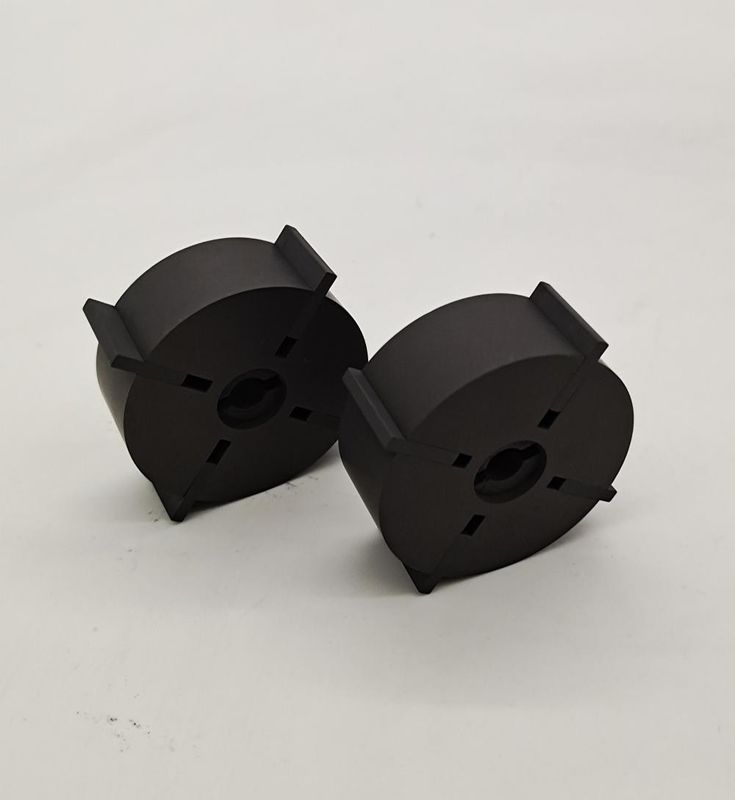

Durable Carbon Graphite Rotors High Purity Customized Graphite Vanes
The normal carbon-graphite without anything,can be used in mechanical corperations always.But,if it’s impregnated resin or metal,it can make the graphite products apply and perform excellent wear resistance and self-lubrication property in the circumstance of high temperature and heavy pressure.Also,gas hole ratio,hardness and friction will be changed.Graphite rotor,vane,seal ring,bearing are generally used in present mechanical equipment.
Material proformance
| Model | Impregnation | Origin | Density | Compressive(Mpa) | Flexural(Mpa) | Shore Hardness(HSD) | Temperature Limit(°) |
| M106K | Resin | China | 1.72 | 175 | 55 | 75 | 200 |
| M120D | Antimony | China | 2.2 | 145 | 50 | 70 | 500 |
| M120P | Copper | China | 2.2 | 220 | 65 | 60 | 400 |
| M254K | Resin | China | 1.7 | 80 | 38 | 45 | 200 |
| M254D | Antimony | China | 2 | 65 | 35 | 35 | 500 |
| M120R | Glass | China | 1.9 | 190 | 60 | 100 | 600 |
| KC673 | Resin | Japan | 1.87 | 240 | 78 | 87 | 200 |
| KC573 | Resin | Japan | 1.85 | 370 | 85 | 110 | 200 |
| KC5709 | Antimony | Japan | 2.25 | 430 | 100 | 115 | 500 |
FQA
Q1:Are you a manufacturing factory or a trading company?
Q5: Do you have stock products to sell?
A5: No,We produce these products accorded to the customer’s requirement,It also means material, density, shape, size,design,quantity will depend on what your need.OEM orders always be welcomed.
