Superfine Mechanical Seal Carbon Ring 200-600 Celsius Shock Resistant

Superfine Mechanical Seal Carbon Ring 200-600 Celsius Shock Resistant
Superfine Mechanical Seal Carbon Ring 200-600 Celsius Shock Resistant Superfine Mechanical Seal Carbon Ring 200-600 Celsius Shock Resistant Superfine Mechanical Seal Carbon Ring 200-600 Celsius Shock Resistant Superfine Mechanical Seal Carbon Ring 200-600 Celsius Shock Resistant

Large Image :  Superfine Mechanical Seal Carbon Ring 200-600 Celsius Shock Resistant

Product Details:
Place of Origin: China
Brand Name: Haicheng
Certification: ISO9001, ISO14000, IATF16949
Model Number: M120P,M120K
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiable
Packaging Details: Carton box, or packed as per required
Delivery Time: 15-20 days
Payment Terms: T/T,L/C, D/A, D/P,
Supply Ability: 100000 pcs per month

Superfine Mechanical Seal Carbon Ring 200-600 Celsius Shock Resistant

Description
Density: 1.58-2.40 G/cm3 Temperature: 200-600 Celsius
Chemical Composition: Carbon>99% Size: Customized
Grain Size: 0.02mm-4mm Design: Customized
High Light:

Superfine Mechanical Seal Carbon Ring

,

Mechanical Seal Carbon Ring 600 Celsius

,

Shock Resistant graphite mechanical seal



Superfine Carbon Graphite Seals Carbon Graphite Seal Ring Mechanical Seals



* The graphite seal rings are customized products with high quality.

* The material of graphite seal rings with wear resistance,resistance to high temperature,pressure resistance,corrosion resistance,self-lubricating without oil,little expansion coefficient,and excellent sealing.



Graphite Bushing Advantage
1. High temperature resistance,
200-600 Celsius
2. Good lubrication property
3. Good sealing performance and excellent oil resistance
4. Anti-aging, good flexibility, good elasticity
5. Excellent shock resistant and tear resistant


Technical Performance for Materials



Category Model Impregnant Shore Hardess Flexural Strength Compressive Strength Porosity Bulk Density Thermal expansion coeffcient Temp.
`X ≥MPa `X ≥MPa `X % g/cm3 10-6/
Graphite M120 - 60 - 25 - 81 - 18 1.6 4 350
M154 - 40 - 20 - 40 - 28 1.42 - 350
M254 - 10 - 25 - 45 - 25 1.65 3.4 450
Impregnated resin carbon graphite M106H Epoxy resin 75 90 51 60 180 190 1.0 1.62 4.8 200
M238H 40 55 39 50 78 110 1.0 1.85 4.5 250
M255H 40 50 34 45 78 90 1.0 1.8 4.5 200
M106K Furan resin 80 95 55 65 200 210 2.0 1.62 - 200
M120K 75 95 50 60 190 195 2.0 1.7   200
M154K 60   35   70   6.0 1.6   200
M158K 80 90 54 60 200 210 1.2 1.65 - 200
Impregnated metal carbon graphite M106D Antimony alloy 75 - 55 65 170 190 3 2.2 5.0 500
M120D 70 - 50 60 140 160 3 2.2 5.0 500
M254D 35 - 35 - 65 - 3 2.2 4.5 500
M120P Copper alloy 65 - 65 - 200 - 3 2.4 - 400
Impregnated glass carbon graphite M106R Glass 110 - 75 - 210 - 1.5 1.9 4.67 600
M120R 95 - 57 - 190 - 1.5 1.9 4.67 600
M254R 65 - 55 - 100 - 1.5 1.9 - 600
M262R 75 - 48 - 138 - 1.5 1.9 - 600

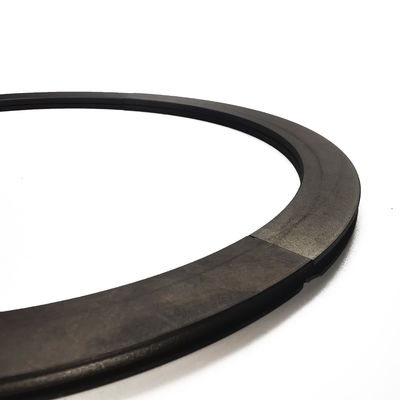

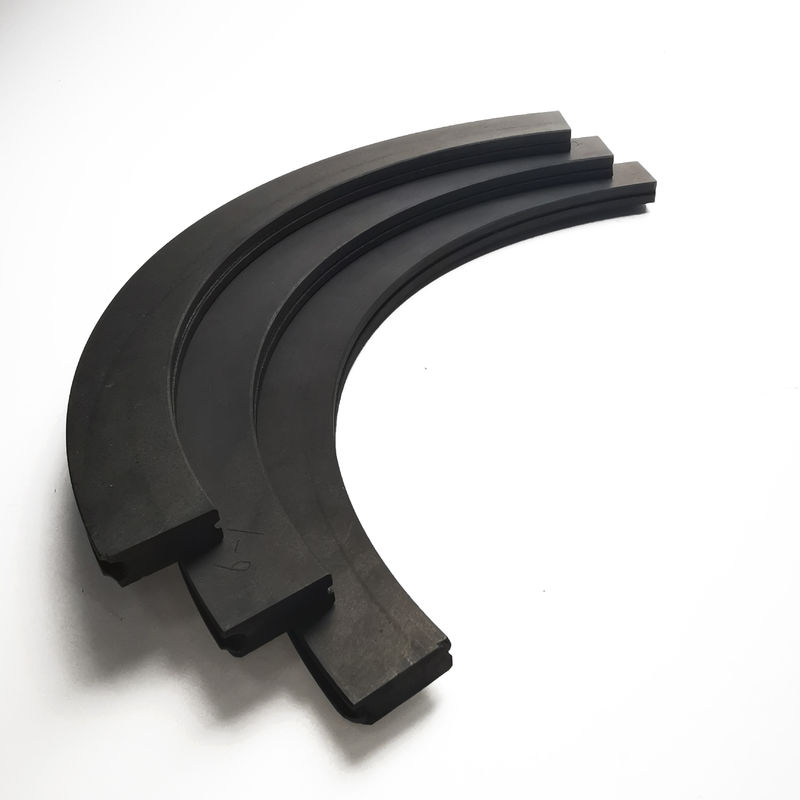

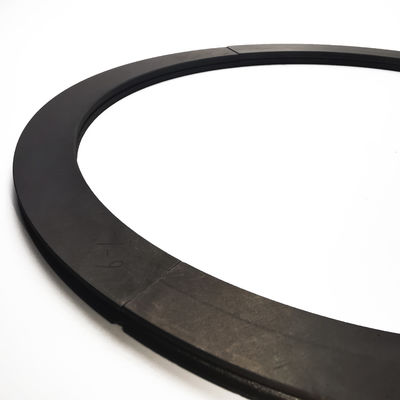

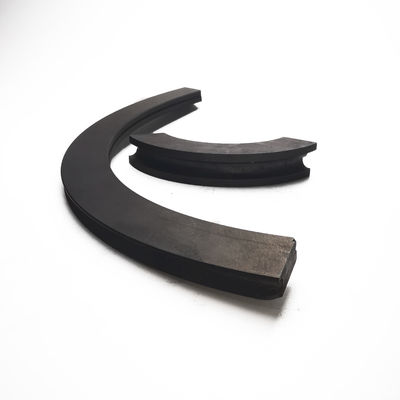

Photos of Product


Superfine Mechanical Seal Carbon Ring 200-600 Celsius Shock Resistant 0Superfine Mechanical Seal Carbon Ring 200-600 Celsius Shock Resistant 1



FAQ

1.When can i get the price?
We usually quote within 24 hours after getting your detailed requirements,like size, quantity etc.

2. Do you provide samples?
Yes, samples are available for you to check our quality. it will on your expense.

3.What about the lead time for mass product?
The lead time is based on the quantity, 25-30 days for regular products.

4.What is your terms of delivery?
We accept FOB, CFR, CIF, EXW, etc. You can choose the most convenient way for you.

5.What can you buy from us?
Carbon graphite bushings & bearings, seals, rods, plates,vanes.



6.Can I get your product catalog

A: Sure, please contact us to get E-catalog by email.



7.What’s kind of product packaging?

A.Carton box, wooden box, or others as customer’s design.
