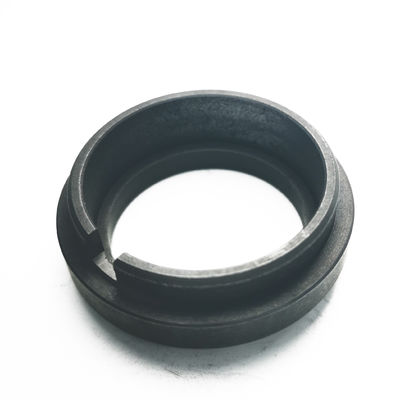

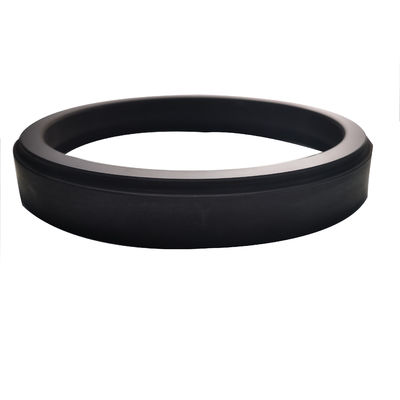

High Purity Carbon Graphite Seals Ring 68-100MPa Corrosion Resistance

High Purity Carbon Graphite Seals Ring 68-100MPa Corrosion Resistance
High Purity Carbon Graphite Seals Ring 68-100MPa Corrosion Resistance High Purity Carbon Graphite Seals Ring 68-100MPa Corrosion Resistance High Purity Carbon Graphite Seals Ring 68-100MPa Corrosion Resistance High Purity Carbon Graphite Seals Ring 68-100MPa Corrosion Resistance

Large Image :  High Purity Carbon Graphite Seals Ring 68-100MPa Corrosion Resistance

Product Details:
Place of Origin: China
Brand Name: Haicheng
Certification: ISO9001, ISO14000, IATF16949
Model Number: M120D
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 15-20 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 200000 pcs per month

High Purity Carbon Graphite Seals Ring 68-100MPa Corrosion Resistance

Description
Features: High Density And High Purity Temperature Resistance Resistance: 200-650℃
Application: Mechanical Seal, Water Pump Seals, Mechanical Seals Flexural Strength: 50 Mpa
Compressive Strength: 68-100MPa Chemical Composition: High Purity Graphite, Carbon>99%
High Light:

Carbon Graphite Seals 100MPa

,

Carbon Graphite Seals Corrosion resistance

,

carbon graphite ring 100MPa

High Purity And High Density Carbon Graphite Seals - Fast Delivery Time



Carbon Graphite is the ideal seal material in every aspect. It is self-lapping and flexible enough to conform to the mating face, very hard, self-lubricating and resistant to wear. It is also lubricated by almost any fluid, so the media being sealed will add additional lubrication. It is impervious and resistant to most chemicals.



Advantages: 1. Resistance to high temperature of 500 degrees Celsius 2.Corrosion resistance, 3.Small expansion coefficient, 4.Self-lubricating and machining properties. 5.Sufficient mechanical strength and impact resistance.





Material proformance

Category Model Impregnant Shore Hardess Flexural Strength Compressive Strength Porosity Bulk Density Thermal expansion coeffcient Temp.
`X ≥MPa `X ≥MPa `X ≤% g/cm3 10-6/℃
Graphite M120 - 60 - 25 - 81 - 18 1.6 4 350
M154 - 40 - 20 - 40 - 28 1.42 - 350
M254 - 10 - 25 - 45 - 25 1.65 3.4 450
Impregnated resin carbon graphite M106H Epoxy resin 75 90 51 60 180 190 1.0 1.62 4.8 200
M238H 40 55 39 50 78 110 1.0 1.85 4.5 250
M255H 40 50 34 45 78 90 1.0 1.8 4.5 200
M106K Furan resin 80 95 55 65 200 210 2.0 1.62 - 200
M120K 75 95 50 60 190 195 2.0 1.7   200
M154K 60   35   70   6.0 1.6   200
M158K 80 90 54 60 200 210 1.2 1.65 - 200
Impregnated metal carbon graphite M106D Antimony alloy 75 - 55 65 170 190 3 2.2 5.0 500
M120D 70 - 50 60 140 160 3 2.2 5.0 500
M254D 35 - 35 - 65 - 3 2.2 4.5 500
M120P Copper alloy 65 - 65 - 200 - 3 2.4 - 400
Impregnated glass carbon graphite M106R Glass 110 - 75 - 210 - 1.5 1.9 4.67 600
M120R 95 - 57 - 190 - 1.5 1.9 4.67 600
M254R 65 - 55 - 100 - 1.5 1.9 - 600
M262R 75 - 48 - 138 - 1.5 1.9 - 600
Hot pressed graphite M353 - 45 - 45 - 120 - 1.0 1.75 - 100
M352 - 35 - 35 - 80 - 1.0 1.75 - 100
M356 - 50 - 50 - 140 - 1.0 1.75 - 100
M357 - 40 - 40 - 80 - 1.0 1.75 9.0 100

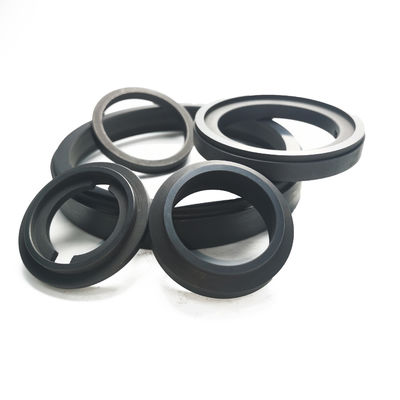

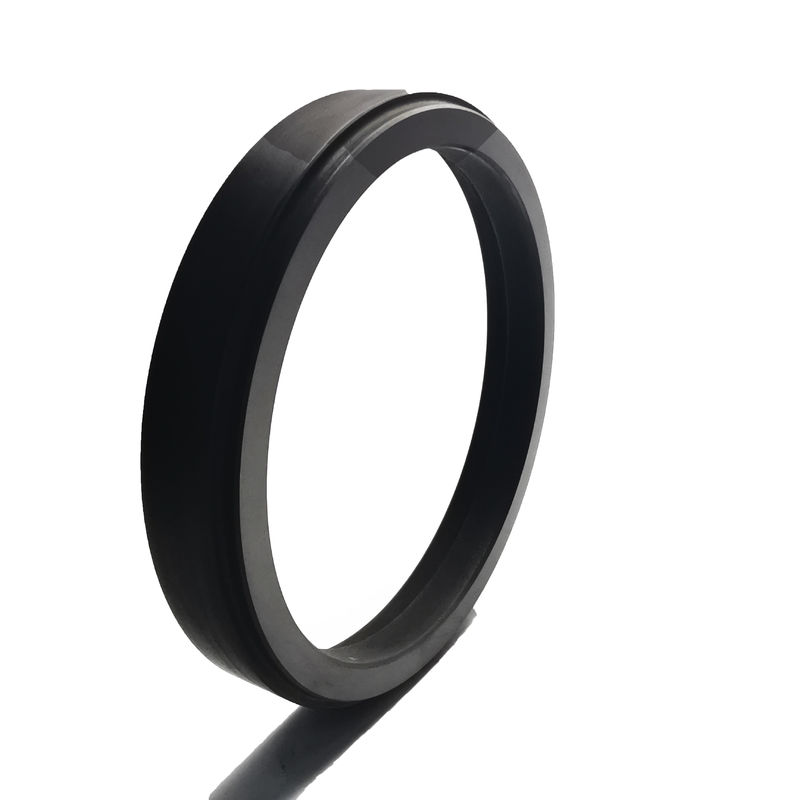

High Purity Carbon Graphite Seals Ring 68-100MPa Corrosion Resistance 0High Purity Carbon Graphite Seals Ring 68-100MPa Corrosion Resistance 1


High Purity Carbon Graphite Seals Ring 68-100MPa Corrosion Resistance 2









FQA



Q1:Are you a manufacturing factory or a trading company?

A1: We are professional manufacturer for graphite products. we supply various kinds of graphite products.

Q2: What's your MOQ?
A2: No limit to the quantity.

Q3: What's your lead time for production?
A3: The lead time for normal products is 25-30 days. it need to be negotiated for special cases.

Q4: Can I have a sample order?
A4: Yes, we welcome sample order for checking quality, it will be free for our stock sample, but the delivery charge will on your expense.




Q5: Do you have stock products to sell?

A5: No,We produce these products accorded to the customer’s requirement,It also means material, density, shape, size,design,quantity will depend on what your need.OEM orders always be welcomed.
