Product Details:
|
| Features: | High Density And High Purity | Temperature Resistance Resistance: | 200-650℃ |
|---|---|---|---|
| Application: | Mechanical Seal, Water Pump Seals, Mechanical Seals | Flexural Strength: | 50 Mpa |
| Compressive Strength: | 68-100MPa | Chemical Composition: | High Purity Graphite, Carbon>99% |
| High Light: | ISO9001 Carbon Graphite Seals,Open Type Carbon Graphite Seals,carbon graphite ring Open Type |
||

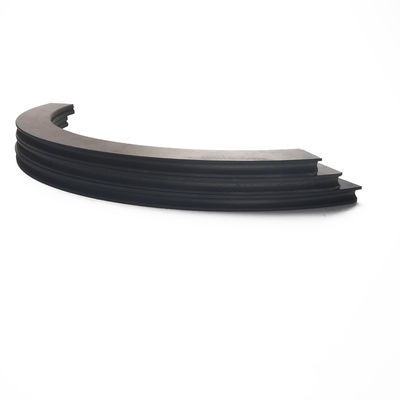

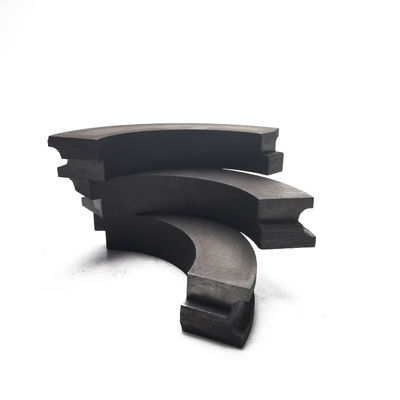

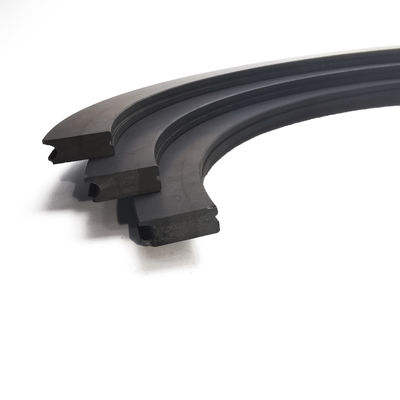

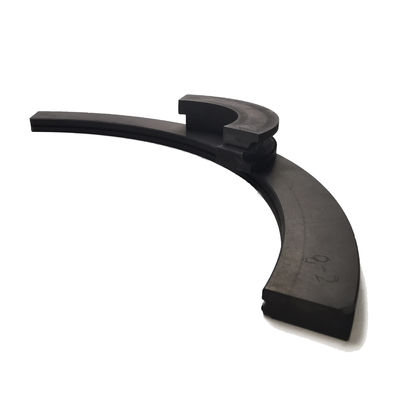

Open Type Carbon Graphite Seals Flexiable Graphite Ring For Pump
Carbon Graphite is the ideal seal material in every aspect. It is self-lapping and flexible enough to conform to the mating face, very hard, self-lubricating and resistant to wear. It is also lubricated by almost any fluid, so the media being sealed will add additional lubrication. It is impervious and resistant to most chemicals.
Advantages:
a. Anti-oxidation treatment to have long service life and best cost efficiency.
b. Different anti-oxidation solutions available for your specific requirements.
c. Large stock of graphite material enables quick delivery time.
Material proformance
| Category | Model | Impregnant | Shore Hardess | Flexural Strength | Compressive Strength | Porosity | Bulk Density | Thermal expansion coeffcient | Temp. | |||
| ≥ | `X | ≥MPa | `X | ≥MPa | `X | ≤% | g/cm3 | 10-6/℃ | ℃ | |||
| Graphite | M120 | - | 60 | - | 25 | - | 81 | - | 18 | 1.6 | 4 | 350 |
| M154 | - | 40 | - | 20 | - | 40 | - | 28 | 1.42 | - | 350 | |
| M254 | - | 10 | - | 25 | - | 45 | - | 25 | 1.65 | 3.4 | 450 | |
| Impregnated resin carbon graphite | M106H | Epoxy resin | 75 | 90 | 51 | 60 | 180 | 190 | 1.0 | 1.62 | 4.8 | 200 |
| M238H | 40 | 55 | 39 | 50 | 78 | 110 | 1.0 | 1.85 | 4.5 | 250 | ||
| M255H | 40 | 50 | 34 | 45 | 78 | 90 | 1.0 | 1.8 | 4.5 | 200 | ||
| M106K | Furan resin | 80 | 95 | 55 | 65 | 200 | 210 | 2.0 | 1.62 | - | 200 | |
| M120K | 75 | 95 | 50 | 60 | 190 | 195 | 2.0 | 1.7 | 200 | |||
| M154K | 60 | 35 | 70 | 6.0 | 1.6 | 200 | ||||||
| M158K | 80 | 90 | 54 | 60 | 200 | 210 | 1.2 | 1.65 | - | 200 | ||
| Impregnated metal carbon graphite | M106D | Antimony alloy | 75 | - | 55 | 65 | 170 | 190 | 3 | 2.2 | 5.0 | 500 |
| M120D | 70 | - | 50 | 60 | 140 | 160 | 3 | 2.2 | 5.0 | 500 | ||
| M254D | 35 | - | 35 | - | 65 | - | 3 | 2.2 | 4.5 | 500 | ||
| M120P | Copper alloy | 65 | - | 65 | - | 200 | - | 3 | 2.4 | - | 400 | |
| Impregnated glass carbon graphite | M106R | Glass | 110 | - | 75 | - | 210 | - | 1.5 | 1.9 | 4.67 | 600 |
| M120R | 95 | - | 57 | - | 190 | - | 1.5 | 1.9 | 4.67 | 600 | ||
| M254R | 65 | - | 55 | - | 100 | - | 1.5 | 1.9 | - | 600 | ||
| M262R | 75 | - | 48 | - | 138 | - | 1.5 | 1.9 | - | 600 | ||
| Hot pressed graphite | M353 | - | 45 | - | 45 | - | 120 | - | 1.0 | 1.75 | - | 100 |
| M352 | - | 35 | - | 35 | - | 80 | - | 1.0 | 1.75 | - | 100 | |
| M356 | - | 50 | - | 50 | - | 140 | - | 1.0 | 1.75 | - | 100 | |
| M357 | - | 40 | - | 40 | - | 80 | - | 1.0 | 1.75 | 9.0 | 100 | |
FQA
Q1:Are you a manufacturing factory or a trading company?
Q5: Do you have stock products to sell?
A5: No,We produce these products accorded to the customer’s requirement,It also means material, density, shape, size,design,quantity will depend on what your need.OEM orders always be welcomed.
