Product Details:
|
| Density: | 1.58-2.40 G/cm3 | Chemical Composition: | Carbon>99% |
|---|---|---|---|
| Size: | Customized | Grain Size: | 0.02mm-4mm |
| Temperature: | 200-600 Celsius | Design: | OEM&ODM |
| High Light: | Synthetic Carbon Graphite Bearings,Carbon Graphite Bearings 600 Celsius,Synthetic graphite sleeve bearings |
||
Industrial Grades Carbon Graphite Bearings Synthetic Graphite Bearings
High strength Antimony impregnated Graphite Material :
Antimony Graphite is excellent self-lubricating and wear-resistant material, which can be used in high temperature 500 °C, cryogenic -253 °C, high speed 20,000 rev / min, high pressure 10Mpa, particularly suitable for water, oil, kerosene and other media working conditions.
Graphite Bushing Advantage
1. High temperature resistance
2. Good lubrication property
3. Good sealing performance
4. Excellent oil resistance
5. Anti-aging, good flexibility, good elasticity
6. Excellent shock resistant and tear resistant
Technical Performance for Materials
| Category | Model | Impregnant | Shore Hardess | Flexural Strength | Compressive Strength | Porosity | Bulk Density | Thermal expansion coeffcient | Temp. | |||
| ≥ | `X | ≥MPa | `X | ≥MPa | `X | ≤% | g/cm3 | 10-6/℃ | ℃ | |||
| Graphite | M120 | - | 60 | - | 25 | - | 81 | - | 18 | 1.6 | 4 | 350 |
| M154 | - | 40 | - | 20 | - | 40 | - | 28 | 1.42 | - | 350 | |
| M254 | - | 10 | - | 25 | - | 45 | - | 25 | 1.65 | 3.4 | 450 | |
| Impregnated resin carbon graphite | M106H | Epoxy resin | 75 | 90 | 51 | 60 | 180 | 190 | 1.0 | 1.62 | 4.8 | 200 |
| M238H | 40 | 55 | 39 | 50 | 78 | 110 | 1.0 | 1.85 | 4.5 | 250 | ||
| M255H | 40 | 50 | 34 | 45 | 78 | 90 | 1.0 | 1.8 | 4.5 | 200 | ||
| M106K | Furan resin | 80 | 95 | 55 | 65 | 200 | 210 | 2.0 | 1.62 | - | 200 | |
| M120K | 75 | 95 | 50 | 60 | 190 | 195 | 2.0 | 1.7 | 200 | |||
| M154K | 60 | 35 | 70 | 6.0 | 1.6 | 200 | ||||||
| M158K | 80 | 90 | 54 | 60 | 200 | 210 | 1.2 | 1.65 | - | 200 | ||
| Impregnated metal carbon graphite | M106D | Antimony alloy | 75 | - | 55 | 65 | 170 | 190 | 3 | 2.2 | 5.0 | 500 |
| M120D | 70 | - | 50 | 60 | 140 | 160 | 3 | 2.2 | 5.0 | 500 | ||
| M254D | 35 | - | 35 | - | 65 | - | 3 | 2.2 | 4.5 | 500 | ||
| M120P | Copper alloy | 65 | - | 65 | - | 200 | - | 3 | 2.4 | - | 400 | |
| Impregnated glass carbon graphite | M106R | Glass | 110 | - | 75 | - | 210 | - | 1.5 | 1.9 | 4.67 | 600 |
| M120R | 95 | - | 57 | - | 190 | - | 1.5 | 1.9 | 4.67 | 600 | ||
| M254R | 65 | - | 55 | - | 100 | - | 1.5 | 1.9 | - | 600 | ||
| M262R | 75 | - | 48 | - | 138 | - | 1.5 | 1.9 | - | 600 | ||

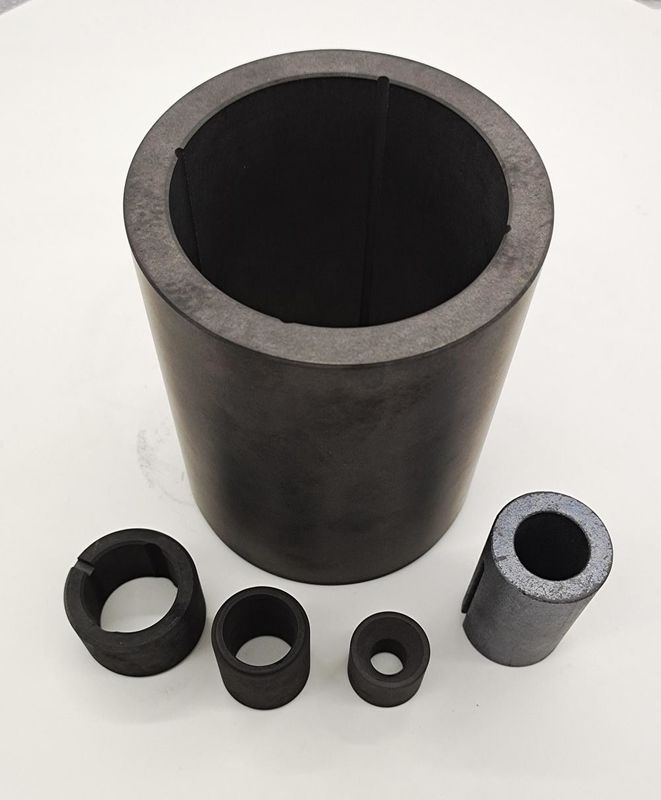

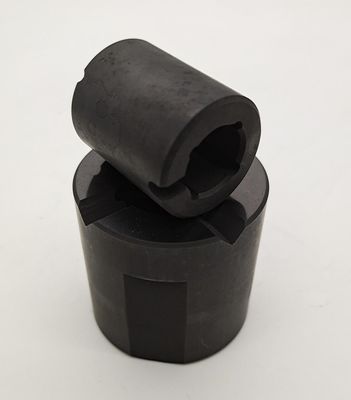

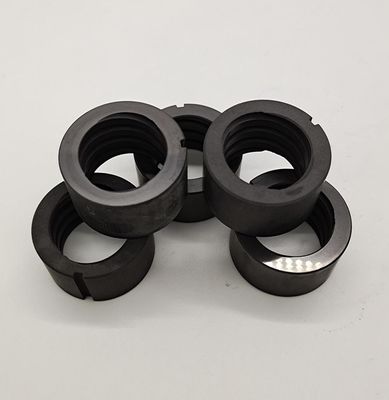

Photos of Product
6.Can I get your product catalog
A: Sure, please contact us to get E-catalog by email.
