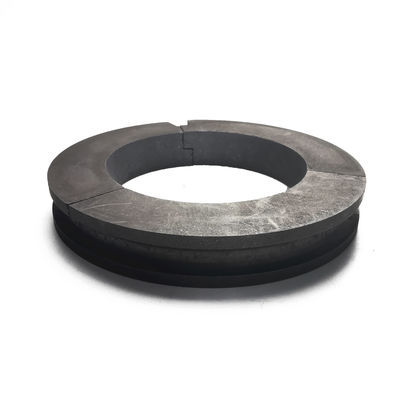

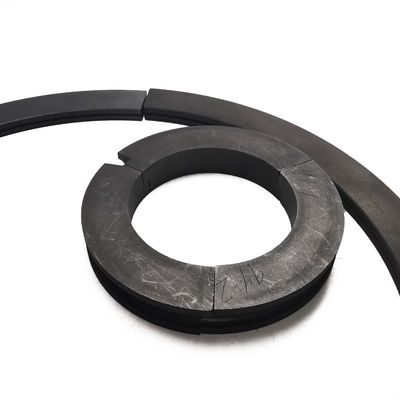

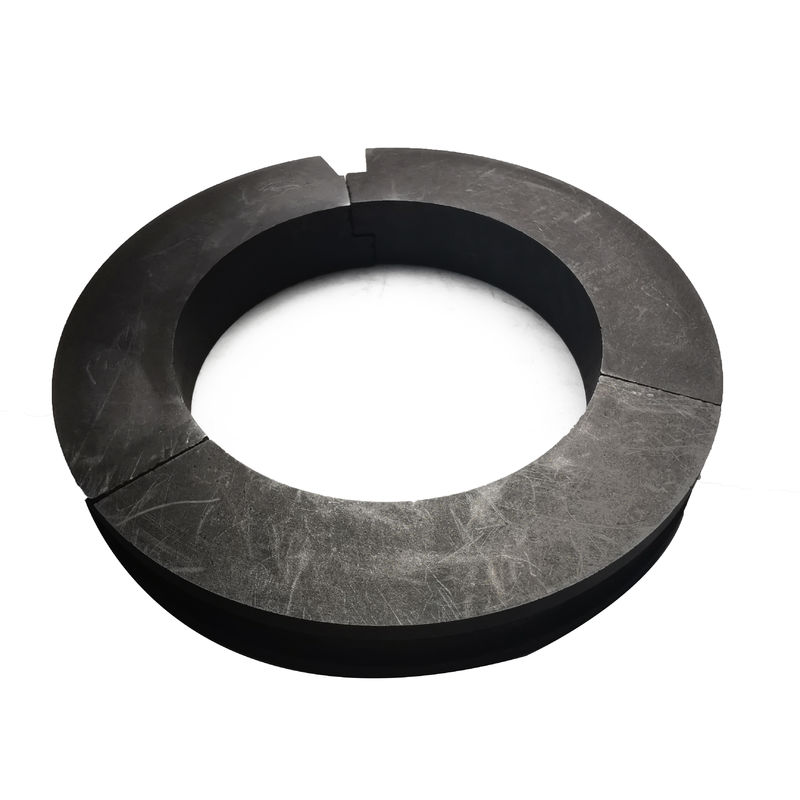

OEM ODM Design Carbon Graphite Seals Self Lapping For Machinery Industry

OEM ODM Design Carbon Graphite Seals Self Lapping For Machinery Industry
OEM ODM Design Carbon Graphite Seals Self Lapping For Machinery Industry OEM ODM Design Carbon Graphite Seals Self Lapping For Machinery Industry OEM ODM Design Carbon Graphite Seals Self Lapping For Machinery Industry

Large Image :  OEM ODM Design Carbon Graphite Seals Self Lapping For Machinery Industry

Product Details:
Place of Origin: China
Brand Name: HAICHENG
Certification: ISO9001, ISO14000, IATF16949
Model Number: NA
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 15-25 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100000 pcs per month

OEM ODM Design Carbon Graphite Seals Self Lapping For Machinery Industry

Description
Design: OEM & ODM Size: Customized
Material: Various Kinds Of Carbon Graphite Application: Machinery Industry
Chemical Composition: High Purity Graphite, Carbon>99% Port: Shenzheng, Shanghai
High Light:

ODM Carbon Graphite Seals

,

Carbon Graphite Seals Self Lapping

,

ODM graphite seal ring

Advantages of Carbon Graphite

1. The ideal seal material in every aspect. It is self-lapping and flexible enough to conform to the mating face, very hard, self-lubricating and resistant to wear.

2. It is also lubricated by almost any fluid, so the media being sealed will add additional lubrication. It is impervious and resistant to most chemicals.

3. The perfect product for use in high temperature and high pressure sealing applications.



OEM ODM Design Carbon Graphite Seals Self Lapping For Machinery Industry 0





Application
Mechanical Industry
Dimensions
Customers' Requirement
Chemical Composition
Carbon>99%
Type of Supplier
Manufacturer
Application
Mechanical seals, pumps, valve
Certification
ISO9000, ISO14001, IATF16949
Size
OEM
Feature
High Strength, Superior wear,Corrosion resistance.
Customized
Available
Porosity
low porosity
Material
carbon graphite



Category Model Impregnant Shore Hardess Flexural Strength Compressive Strength Porosity Bulk Density Thermal expansion coeffcient Temp.
`X ≥MPa `X ≥MPa `X ≤% g/cm3 10-6/℃
Graphite M120 - 60 - 25 - 81 - 18 1.6 4 350
M154 - 40 - 20 - 40 - 28 1.42 - 350
M254 - 10 - 25 - 45 - 25 1.65 3.4 450
Impregnated resin carbon graphite M106H Epoxy resin 75 90 51 60 180 190 1.0 1.62 4.8 200
M238H 40 55 39 50 78 110 1.0 1.85 4.5 250
M255H 40 50 34 45 78 90 1.0 1.8 4.5 200
M106K Furan resin 80 95 55 65 200 210 2.0 1.62 - 200
M120K 75 95 50 60 190 195 2.0 1.7   200
M154K 60   35   70   6.0 1.6   200
M158K 80 90 54 60 200 210 1.2 1.65 - 200
Impregnated metal carbon graphite M106D Antimony alloy 75 - 55 65 170 190 3 2.2 5.0 500
M120D 70 - 50 60 140 160 3 2.2 5.0 500
M254D 35 - 35 - 65 - 3 2.2 4.5 500
M120P Copper alloy 65 - 65 - 200 - 3 2.4 - 400
Impregnated glass carbon graphite M106R Glass 110 - 75 - 210 - 1.5 1.9 4.67 600
M120R 95 - 57 - 190 - 1.5 1.9 4.67 600
M254R 65 - 55 - 100 - 1.5 1.9 - 600
M262R 75 - 48 - 138 - 1.5 1.9 - 600
Hot pressed graphite M353 - 45 - 45 - 120 - 1.0 1.75 - 100
M352 - 35 - 35 - 80 - 1.0 1.75 - 100
M356 - 50 - 50 - 140 - 1.0 1.75 - 100
M357 - 40 - 40 - 80 - 1.0 1.75 9.0 100





Recommended range of mechanical carbon and applicable working conditions



Model Equipment Application Friction
material
Working
medium
Technical conditions
(not greater than)
M106H Centrifugal pump
Compressor
Flow meter
Face seal
Piston ring
Bearing
Tungsten carbide
Cast iron
bronze
Hard alloy
Chrome-plated steel
Silicon carbide
Silicon nitride
Alkaline medium such as oil,water,high temperture,high pressure steam,salt slurry water containing crystal particles,ammonia sulfide,propane,liquid ammonia,30% potassium carbonate solution,50% sodium hydroxide solution Rotating speed:12000R.P.M
Temperature:200

Medium pressure:3MPa
PV Value:12MPa/m/s
M106K
M158K
M120H Centrifugal pump
Compressor
Boiler preheater
Submersible pumps
Vacuum pumps
Face seal
Piston ring
Bearing
Explosion-proof membrane
Rotary van
Tungsten carbide
Cast iron
bronze
Hard alloy
Chrome-plated steel
Silicon carbide
Silicon nitride
Oil,water,air,weak acid,weakly alkaline medium,M120k use a normal concentration of sulfuric acid medium Rotating speed:29000R.P.M
Temperature:200

Medium pressure:3MPa
PV Value:8MPa/m/s
M120K
M254H Centrifugal pump
Flow meter
Cigarette machine
Compressor
Fermenter turbine
Face seal
Piston ring
Bearing
Gas distribution plate
Ceramic
Hard alloy
Bronze
Stainless steel
Chrome-plated steel
Oil,water,organic acids,alkalis,salt etc. Rotating speed:29000R.P.M
Temperature:200

Medium pressure:2MPa
M254K
M106P Steam flow meter
High temperature hot oil pump
Aircraft engine
Mailbox
Starter motor
Cigarette machine
Fan
Face seal
Bearing
Gas dirtribution plate
Electric locomotive skateboard
Ceramic
Hard alloy
Bronze
Stainless steel
Chrome-plated steel
Alloy steel
Dry friction,water,high temperature water,sea water,water vapor,organica oil Temperature:-200-+400
M120P
M106D Clean water pump
Nuclear secondary pump
Boiler feed pump
drying furnace
Power equipment
Face seal
Bearing
Bushing
Cast iron
Hard alloy
Stainless steel
Chrome-plated steel
Silicon carbide
Silicon nitride
Air,oil,water,acid,alkali salt.etc. Rotating speed:5000R.P.M
Temperature:500

Medium pressure:5MPa
M120D
M254D



FQA



Q:Are you a manufacturer or a trading company?
A:Our company is a professional manufacturer of graphite products.

Q:Can I get samples?

A:Yes, the samples will be provided on your expense.
Q:How can I get more information about your products?
A:You can email us or ask our online representative and we can send you the latest catalogue and price list.
Q:What is the term of payment?

A:We accept T/T 30% deposit and 70% balance for delivery.
Q:How long will it take to produce after placing an order?
A:The average lead time for samples is 15-20 days.

Q:Do you accept OEM or ODM orders?

A: Yes, we do.

Q:What is your MOQ?

A:There is no limit for MOQ, 1 piece is also available
