Product Details:
|
| Size: | Customized | Chemical Composition: | Impregnated Graphite, Carbon>99% |
|---|---|---|---|
| Application: | Machinery Industry,pump | Material: | Various Kinds Of Graphite |
| Port: | Shenzhen, Shanghai | Design: | OEM&ODM |
| High Light: | Machinery industry Graphite Impregnated Bushing,Graphite Impregnated Bushing Abrasion Proof,carbon graphite products Abrasion Proof |
||
Machinery Industry Carbon Graphite Impregnated Bushing Products Abrasion Proof
Graphite bushings are commonly used in high-temperature and high-load applications, where traditional lubricants may not be effective or suitable. They can be found in a variety of industries, including aerospace, automotive, and industrial machinery. They are also used in applications where low noise and vibration are important, such as in precision equipment and instruments.
One of the advantages of using graphite bushings is their long service life and low maintenance requirements. Graphite's self-lubricating properties reduce the need for additional lubrication, which can lead to cost savings and reduced downtime for equipment maintenance. Additionally, graphite bushings can operate in harsh environments, such as high temperatures and corrosive atmospheres, without suffering from degradation or failure.
Technical performance of material
| Category | Model | Impregnant | Shore Hardess | Flexural Strength | Compressive Strength | Porosity | Bulk Density | Thermal expansion coeffcient | Temp. | |||
| ≥ | `X | ≥MPa | `X | ≥MPa | `X | ≤% | g/cm3 | 10-6/℃ | ℃ | |||
| Graphite | M120 | - | 60 | - | 25 | - | 81 | - | 18 | 1.6 | 4 | 350 |
| M154 | - | 40 | - | 20 | - | 40 | - | 28 | 1.42 | - | 350 | |
| M254 | - | 10 | - | 25 | - | 45 | - | 25 | 1.65 | 3.4 | 450 | |
| Impregnated resin carbon graphite | M106H | Epoxy resin | 75 | 90 | 51 | 60 | 180 | 190 | 1.0 | 1.62 | 4.8 | 200 |
| M238H | 40 | 55 | 39 | 50 | 78 | 110 | 1.0 | 1.85 | 4.5 | 250 | ||
| M255H | 40 | 50 | 34 | 45 | 78 | 90 | 1.0 | 1.8 | 4.5 | 200 | ||
| M106K | Furan resin | 80 | 95 | 55 | 65 | 200 | 210 | 2.0 | 1.62 | - | 200 | |
| M120K | 75 | 95 | 50 | 60 | 190 | 195 | 2.0 | 1.7 | 200 | |||
| M154K | 60 | 35 | 70 | 6.0 | 1.6 | 200 | ||||||
| M158K | 80 | 90 | 54 | 60 | 200 | 210 | 1.2 | 1.65 | - | 200 | ||
| Impregnated metal carbon graphite | M106D | Antimony alloy | 75 | - | 55 | 65 | 170 | 190 | 3 | 2.2 | 5.0 | 500 |
| M120D | 70 | - | 50 | 60 | 140 | 160 | 3 | 2.2 | 5.0 | 500 | ||
| M254D | 35 | - | 35 | - | 65 | - | 3 | 2.2 | 4.5 | 500 | ||
| M120P | Copper alloy | 65 | - | 65 | - | 200 | - | 3 | 2.4 | - | 400 | |
| Impregnated glass carbon graphite | M106R | Glass | 110 | - | 75 | - | 210 | - | 1.5 | 1.9 | 4.67 | 600 |
| M120R | 95 | - | 57 | - | 190 | - | 1.5 | 1.9 | 4.67 | 600 | ||
| M254R | 65 | - | 55 | - | 100 | - | 1.5 | 1.9 | - | 600 | ||
| M262R | 75 | - | 48 | - | 138 | - | 1.5 | 1.9 | - | 600 | ||
| Hot pressed graphite | M353 | - | 45 | - | 45 | - | 120 | - | 1.0 | 1.75 | - | 100 |
| M352 | - | 35 | - | 35 | - | 80 | - | 1.0 | 1.75 | - | 100 | |
| M356 | - | 50 | - | 50 | - | 140 | - | 1.0 | 1.75 | - | 100 | |
| M357 | - | 40 | - | 40 | - | 80 | - | 1.0 | 1.75 | 9.0 | 100 | |
The scope of application
Widely used in mining, chemical industry, metallurgy, water conservancy, construction, electronics, textile, printing and dyeing, food and other industries.
Commonly used in forging shock absorption, bar steel, injection molding machines, machine tools, turbine, steam turbine,lifts, cranes,power tools, packaging machines and other machinery and equipment.

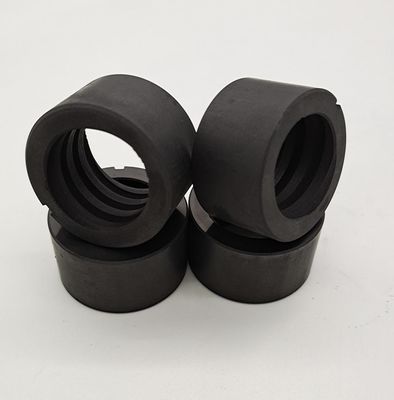

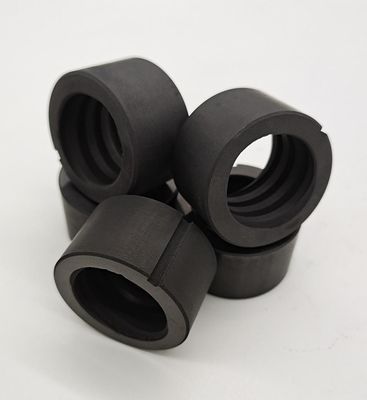

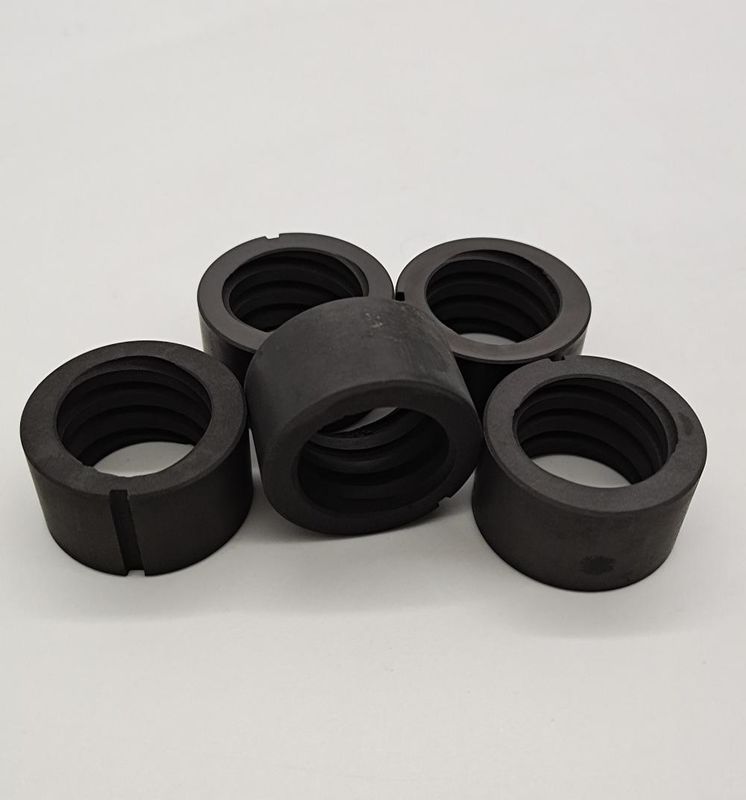

Photos of product
