Product Details:
|
| Material: | Carbon Graphite | Size: | Customized |
|---|---|---|---|
| Application: | Machinery Industry | Chemical Composition: | High Purity Graphite, Carbon>99% |
| Port: | Shenzheng, Shanghai | Design: | OEM & ODM |
| Highlight: | Antimony Impregnated Carbon Graphite Parts,carbon ring seals antirust,Carbon Graphite Parts antirust |
||

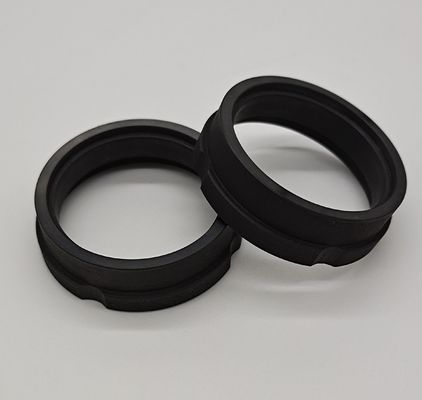

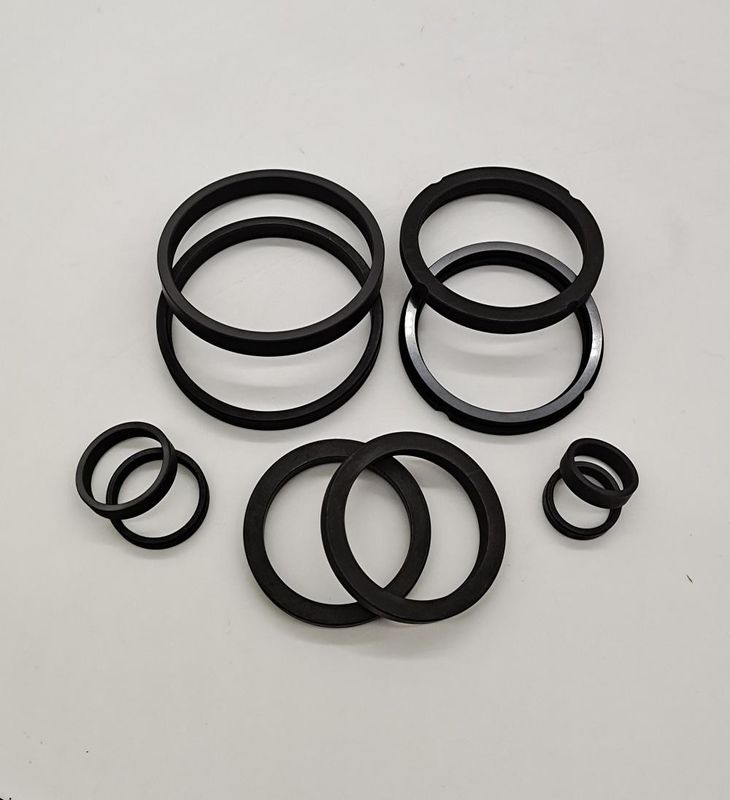

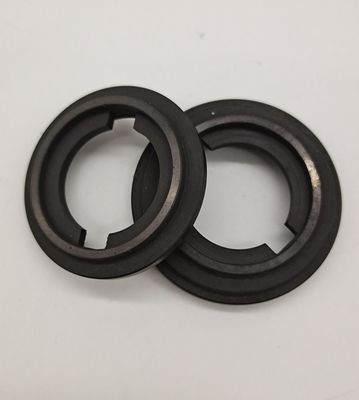

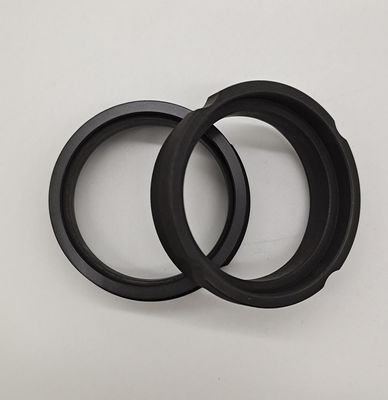

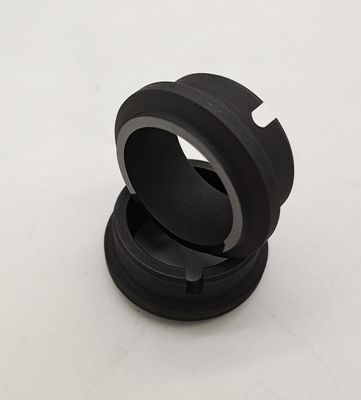

Antimony Impregnated Carbon Graphite seals for Pump
Graphite provides an important sealing solution in situations where a tight seal is required. As one of the most versatile sealing materials, graphite offers the following important characteristics:
Self lubricating
Low coefficient of friction and thermal expansion
Chemical, corrosion and oxidisation resistance
Suitable for high temperature applications including excessive temperature fluctuations
Strong and with good heat conductivity
Chemical Resistance Of Mechanical Carbon Grapshite Material
| Medium | Mass Fraction % | Pure Carbon Graphite | Impregnated Resin Carbon Graphite | Impregnated Metal Carbon Graphite | Hot Pressed Carbon Graphite | |||||
| Phenoic | Epoxy | Furan | Antimony | Babbitt Alloy | Aluminm Alloy | Copper Alloy | ||||
| Hydrochloric acid | 50 | + | 0 | + | 0 | ~ | ~ | ~ | ~ | 0 |
| Sulfuric acid | 50 | + | 0 | + | 0 | ~ | ~ | ~ | ~ | 0 |
| Sulfuric acid | 98 | + | 0 | ~ | + | ~ | ~ | ~ | ~ | 0 |
| Nitric acid | 50 | 0 | 0 | 0 | 0 | ~ | ~ | ~ | ~ | 0 |
| Nitric acid | concentrated | ~ | ~ | ~ | ~ | ~ | ~ | ~ | ~ | ~ |
| Acetic acid | 36 | + | + | ~ | 0 | ~ | 0 | 0 | 0 | 0 |
| Seawater | ~ | + | 0 | + | 0 | ~ | + | 0 | 0 | 0 |
| Benzene | 100 | + | + | 0 | + | + | + | + | + | + |
| Ammonia | 10 | + | 0 | + | + | + | + | + | ~ | 0 |
| Acetone | 100 | + | 0 | 0 | + | + | 0 | + | + | 0 |
| Urea | 70 | + | + | + | + | + | 0 | + | ~ | 0 |
| Motor oil | ~ | + | 0 | + | + | + | 0 | + | + | + |
| Gasoline | ~ | + | 0 | 0 | + | + | 0 | + | + | + |
| Remarks: | + is stable, 0 is normally, ~ is unstable | |||||||||
