Product Details:
|
| Features: | High Purity | Product Material: | Carbon Graphite,Isostatic Graphite |
|---|---|---|---|
| Product Size: | Customized | Chemical Composition: | High Purity Graphite, Carbon>99% |
| Density: | 1.50--1.95g/cm3 | Grain Size: | 2-40μm |
| High Light: | IATF16949 Solid Graphite Rod,Carbon Round Bar High Temp Resistance,Solid Graphite Rod High Temp Resistance |
||
Impregnated Carbon Graphite Rods High Purity And High Temperature Resistance

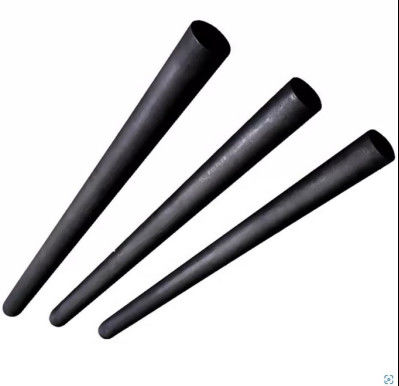

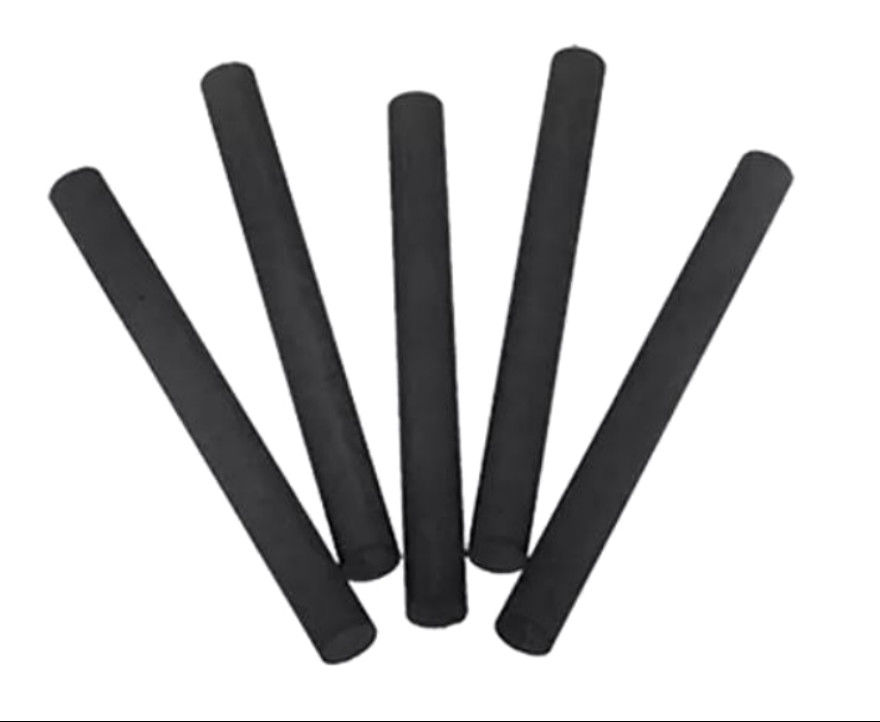

Graphite Rod
Graphite rod is most frequently used in the heating element of high temperature vacuum furnace, and the highest temperature of
the graphite rod can reach 3000℃. It’s also widely used in a heat source or heat radiation of high-temperature environments and
other various mechanical friction conditions. It has such traits as high thermal conductivity, high thermal stability, temperature
shock resistance and excellent electronic property.
Graphite Rod/Bar:
Graphite Rod&Bar is made from the domestic petroleum coke and widely used in the metallurgy, machinery, electronics and chemical industry, glass and ceramica, etc.
1. High ability to process graphite rods with large length and/or small diameter.
2. Extruded, vibrated, shaped and isostatic graphite rods can be provided according to customer needs.
3. According to different technical requirements, in order to improve the use effect of graphite rods and prolong the life of graphite rods, such as oxidation resistance and impermeability.
Physical Properties of Isostatic Graphite
| Index | Bulk Density | Shore hardness | Resistivity | Flexural Strength | Compressive Strength | Thermal expansion coefficient | Ash | |
| Category | ≥g/cm3 | ≥HS | UΩ*m | ≥MPa | ≥MPa | 10-6/℃ | ≤ PPM | |
| Cylinder | Grade A | 1.85 | 50 | 8-12 | 40 | 80 | 4.0 | 500/50 |
| Grade B | 1.8 | 45 | 8-12 | 35 | 70 | 3.8 | 500/50 | |
| Grade C | 1.8 | 40 | 8-12 | 30 | 65 | 3.8 | 500/50 | |
| Cuboid | Grade A | 1.85 | 55 | 8-12 | 45 | 90 | 4 | 500/50 |
| Grade B | 1.8 | 50 | 8-12 | 40 | 80 | 3.9 | 500/50 | |
| Grade C | 1.8 | 40 | 8-12 | 35 | 70 | 3.8 | 500/50 |
1.When can I get the price?
We usually quote within 24 hours after getting your detailed requirements,like size,quantity etc. .
2.Price?
Before inquiry us the price, please kindly send us the detailed requirements for the product you need. We will give our offers.
3.MOQ?
There is no MOQ limit.
4.Do you provide samples?
Yes, samples are available for you to check our quality.
5.What is your terms of delivery?
We accept FOB, CFR, CIF, EXW, etc. You can choose the most convenient way for you. Besides that, we can also send the product to you by Air and Express.
6.Product packaging?
Large product will be packed in wooden cases/pallets with steel strips,small products will be packed by cases, or according to your requirements.
