Artificial Impregnated Carbon Graphite Rods 1.50-1.95g/Cm3 Density Shock Resistance

Artifical Carbon Graphite Rods Impregnated Graphite Stick Wide Applications

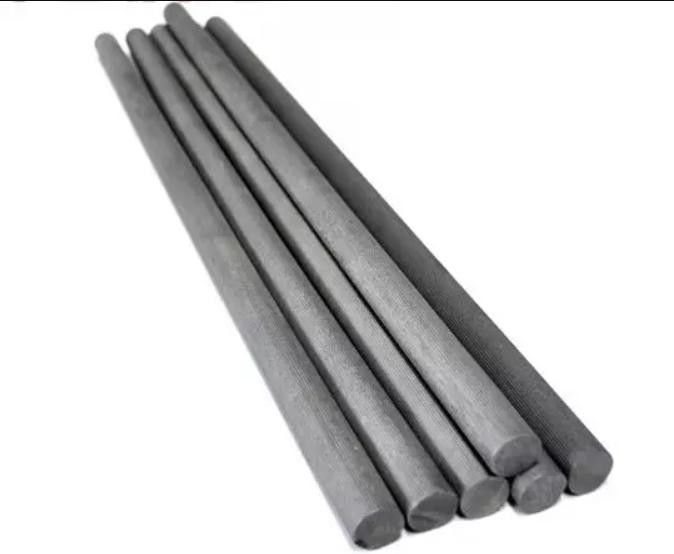

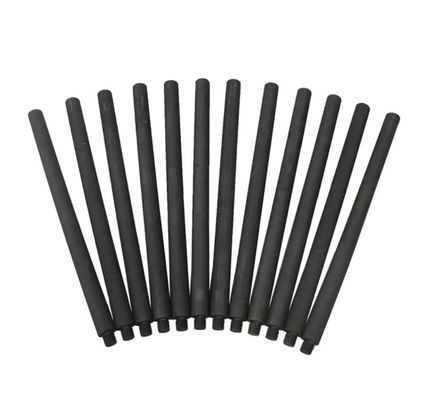

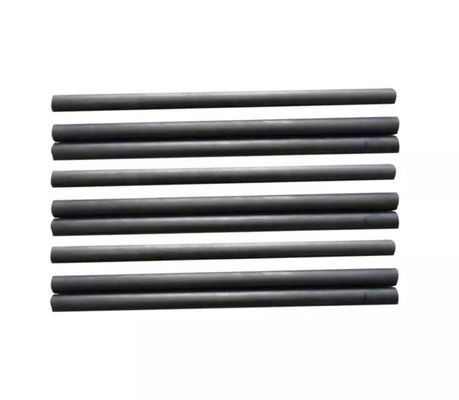

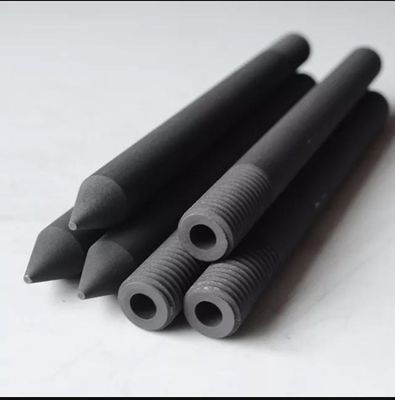

Graphite Rod

Graphite rod is most frequently used in the heating element of high temperature vacuum furnace, and the highest temperature of
the graphite rod can reach 3000℃. It’s also widely used in a heat source or heat radiation of high-temperature environments and
other various mechanical friction conditions. It has such traits as high thermal conductivity, high thermal stability, temperature
shock resistance and excellent electronic property.



Physical Properties of Isostatic Graphite

	Index	Bulk Density	Shore hardness	Resistivity	Flexural Strength	Compressive Strength	Thermal expansion coefficient	Ash
Category		≥g/cm3	≥HS	UΩ*m	≥MPa	≥MPa	10-6/℃	≤ PPM
Cylinder	Grade A	1.85	50	8-12	40	80	4.0	500/50
	Grade B	1.8	45	8-12	35	70	3.8	500/50
	Grade C	1.8	40	8-12	30	65	3.8	500/50
Cuboid	Grade A	1.85	55	8-12	45	90	4	500/50
	Grade B	1.8	50	8-12	40	80	3.9	500/50
	Grade C	1.8	40	8-12	35	70	3.8	500/50

We usually quote within 24 hours after getting your detailed requirements,like size,quantity etc. .


2.Price?
Before inquiry us the price, please kindly send us the detailed requirements for the product you need. We will give our offers.

3.MOQ?
There is no MOQ limit.

4.Do you provide samples?
Yes, samples are available for you to check our quality.

5.What is your terms of delivery?
We accept FOB, CFR, CIF, EXW, etc. You can choose the most convenient way for you. Besides that, we can also send the product to you by Air and Express.

6.Product packaging?
Large product will be packed in wooden cases/pallets with steel strips,small products will be packed by cases, or according to your requirements.
