Product Details:
|
| Material: | Impregnated Carbon Graphite | Temperature Resistance Resistance: | 200-650℃ |
|---|---|---|---|
| Application: | Mechanical Parts | Density: | 1.85g/cm3 |
| Compressive Strength: | 68-100MPa | Chemical Composition: | High Purity Graphite, Carbon>99% |
| High Light: | 1.85g/cm3 Graphite Impregnated Bushings,1.85g/cm3 carbon bearing bush |
||

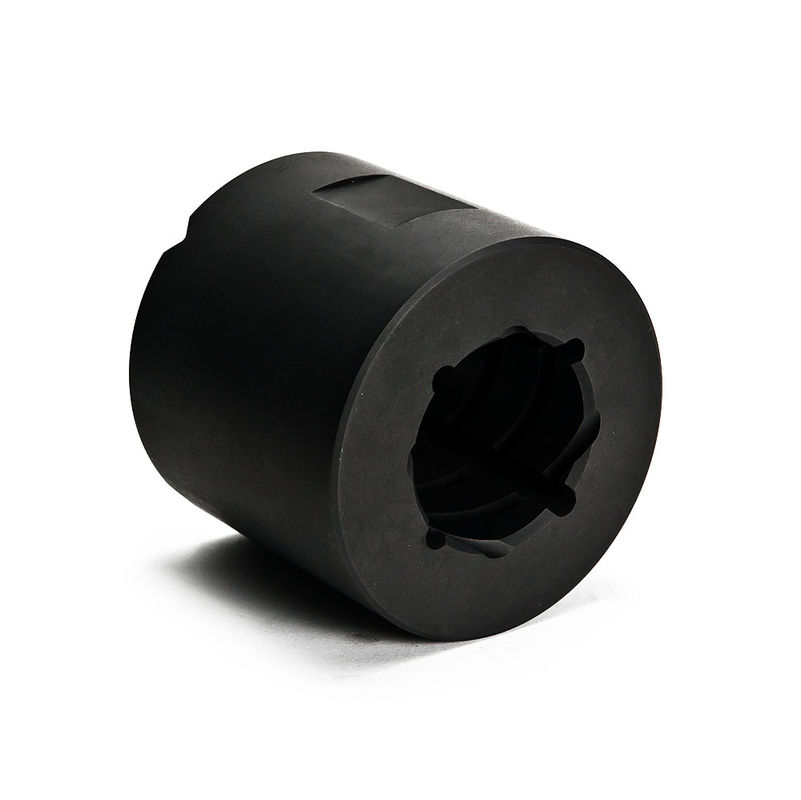

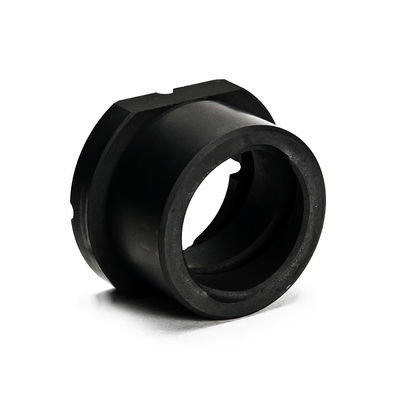

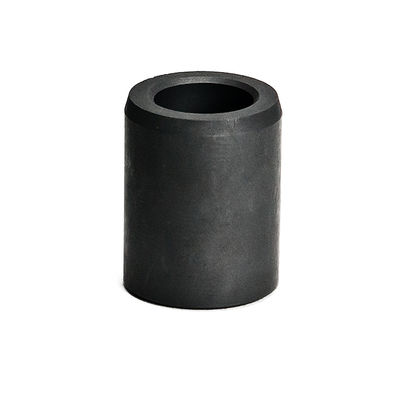

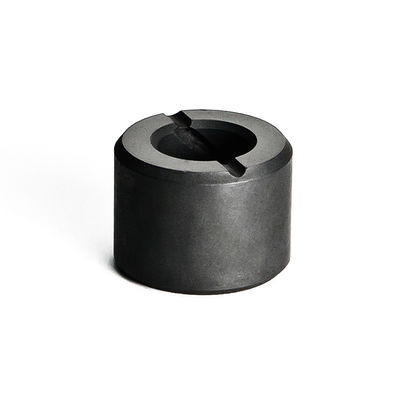

Pump Parts Graphite Impregnated Bushings Various Materials And Sizes
Description
Antimony Graphite is excellent self-lubricating and wear-resistant material, which can be used in high temperature 500 °C, cryogenic -253 °C, high speed 20,000 rev / min, high pressure 10Mpa, particularly suitable for water, oil, kerosene and other media working conditions.
Graphite bushings are widely used in a variety of pumps, stirring machines,high temperature-high pressure dyeing machines, compressors, sealing rings of reactor vessel mechanical seal components , oxygen generator , piston rings of air-blower,shield electric machine, submersible motor ,instrument, fuel pump, vacuum pumps,gas compressors, air pumps in pressing machine, Safety blasting film and plate in chemical devices, panelboard and arc block in cigarette making machine, etc.
1. High temperature resistance
2. Good lubrication property
3. Good sealing performance
4. Excellent oil resistance
5. Anti-aging, good flexibility, good elasticity
6. Excellent shock resistant and tear resistant
Technical performance of materials
| Category | Model | Impregnant | Shore Hardess | Flexural Strength | Compressive Strength | Porosity | Bulk Density | Thermal expansion coeffcient | Temp. | |||
| ≥ | `X | ≥MPa | `X | ≥MPa | `X | ≤% | g/cm3 | 10-6/℃ | ℃ | |||
| Graphite | M120 | - | 60 | - | 25 | - | 81 | - | 18 | 1.6 | 4 | 350 |
| M154 | - | 40 | - | 20 | - | 40 | - | 28 | 1.42 | - | 350 | |
| M254 | - | 10 | - | 25 | - | 45 | - | 25 | 1.65 | 3.4 | 450 | |
| Impregnated resin carbon graphite | M106H | Epoxy resin | 75 | 90 | 51 | 60 | 180 | 190 | 1.0 | 1.62 | 4.8 | 200 |
| M238H | 40 | 55 | 39 | 50 | 78 | 110 | 1.0 | 1.85 | 4.5 | 250 | ||
| M255H | 40 | 50 | 34 | 45 | 78 | 90 | 1.0 | 1.8 | 4.5 | 200 | ||
| M106K | Furan resin | 80 | 95 | 55 | 65 | 200 | 210 | 2.0 | 1.62 | - | 200 | |
| M120K | 75 | 95 | 50 | 60 | 190 | 195 | 2.0 | 1.7 | 200 | |||
| M154K | 60 | 35 | 70 | 6.0 | 1.6 | 200 | ||||||
| M158K | 80 | 90 | 54 | 60 | 200 | 210 | 1.2 | 1.65 | - | 200 | ||
| Impregnated metal carbon graphite | M106D | Antimony alloy | 75 | - | 55 | 65 | 170 | 190 | 3 | 2.2 | 5.0 | 500 |
| M120D | 70 | - | 50 | 60 | 140 | 160 | 3 | 2.2 | 5.0 | 500 | ||
| M254D | 35 | - | 35 | - | 65 | - | 3 | 2.2 | 4.5 | 500 | ||
| M120P | Copper alloy | 65 | - | 65 | - | 200 | - | 3 | 2.4 | - | 400 | |
| Impregnated glass carbon graphite | M106R | Glass | 110 | - | 75 | - | 210 | - | 1.5 | 1.9 | 4.67 | 600 |
| M120R | 95 | - | 57 | - | 190 | - | 1.5 | 1.9 | 4.67 | 600 | ||
| M254R | 65 | - | 55 | - | 100 | - | 1.5 | 1.9 | - | 600 | ||
| M262R | 75 | - | 48 | - | 138 | - | 1.5 | 1.9 | - | 600 | ||
FQA
Q1:Are you a manufacturing factory or a trading company?
Q5: Do you have stock products to sell?
A5: No,We produce these products accorded to the customer’s requirement,It also means material, density, shape, size,design,quantity will depend on what your need.OEM orders always be welcomed.
