Low Corrosion Carbon Graphite Bushings Precision Dimensions

Low Corrosion Carbon Graphite Bushings Precision Dimensions
Low Corrosion Carbon Graphite Bushings Precision Dimensions
Low Corrosion Carbon Graphite Bushings Precision Dimensions Low Corrosion Carbon Graphite Bushings Precision Dimensions Low Corrosion Carbon Graphite Bushings Precision Dimensions Low Corrosion Carbon Graphite Bushings Precision Dimensions

Large Image :  Low Corrosion Carbon Graphite Bushings Precision Dimensions

Product Details:
Place of Origin: China
Brand Name: Haicheng
Certification: ISO9001,ISO14000,IAFT16949
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negociated
Packaging Details: Carton box, Wooden case,Pallet
Delivery Time: 25-30 days
Payment Terms: T/T
Supply Ability: 100000pcs per month

Low Corrosion Carbon Graphite Bushings Precision Dimensions

Description
Flexural Strength: ≥20Mpa Size: Customized
Thermal Expansion Coefficient: 1.5-2.0×10-6/K Shape: Bushings
Compressive Strength: ≥25Mpa Bearing Capacity: ≥50N/mm2
Thermal Conductivity: ≥30W/mK Material: Carbon Graphite
High Light:

low corrosion carbon graphite bushings

,

carbon graphite bushings precision dimensions

,

self-lubricating carbon graphite bearings

Low Corrosion Carbon Graphite Bushings Precision Dimensions

Product Description:

Carbon Graphite Bushings are a type of special impregnated carbon bush that are designed for bearing applications with high requirements. These bushings have a density range of 1.8-2.2g/cm3 and are available in various shapes and sizes according to the customers’ needs. The bearing capacity of the carbon graphite bushing is ≥50N/mm2, and their thermal expansion coefficient is between 1.5-2.0×10-6/K. The bushings are manufactured to meet the highest standards in terms of quality and performance, making them a reliable solution for various industries. With their superior strength and durability, impregnated carbon bushings are widely used for various applications such as pumps, compressors, motors, and turbines.



Features:

  • Product Name: Carbon Graphite Bushings
  • Hardness: HRC60-70
  • Shape: Bushings
  • Application: Machinery, Automotive, Aerospace
  • Bearing Capacity: ≥50N/mm2
  • Flexural Strength: ≥20Mpa
  • Carbon Graphite Bearing
  • Carbon Graphite Bearing for Water Pumps
  • Graphite Pipe Bushing
  • Bushing
  • Bearing


Technical Parameters:

Category Model Impregnant Shore Hardess Flexural Strength Compressive Strength Porosity Bulk Density Thermal expansion coeffcient Temp.
`X ≥MPa `X ≥MPa `X % g/cm3 10-6/
Graphite M120 - 60 - 25 - 81 - 18 1.6 4 350
M154 - 40 - 20 - 40 - 28 1.42 - 350
M254 - 10 - 25 - 45 - 25 1.65 3.4 450
Impregnated resin carbon graphite M106H Epoxy resin 75 90 51 60 180 190 1.0 1.62 4.8 200
M238H 40 55 39 50 78 110 1.0 1.85 4.5 250
M255H 40 50 34 45 78 90 1.0 1.8 4.5 200
M106K Furan resin 80 95 55 65 200 210 2.0 1.62 - 200
M120K 75 95 50 60 190 195 2.0 1.7   200
M154K 60   35   70   6.0 1.6   200
M158K 80 90 54 60 200 210 1.2 1.65 - 200
Impregnated metal carbon graphite M106D Antimony alloy 75 - 55 65 170 190 3 2.2 5.0 500
M120D 70 - 50 60 140 160 3 2.2 5.0 500
M254D 35 - 35 - 65 - 3 2.2 4.5 500
M120P Copper alloy 65 - 65 - 200 - 3 2.4 - 400
Impregnated glass carbon graphite M106R Glass 110 - 75 - 210 - 1.5 1.9 4.67 600
M120R 95 - 57 - 190 - 1.5 1.9 4.67 600
M254R 65 - 55 - 100 - 1.5 1.9 - 600
M262R 75 - 48 - 138 - 1.5 1.9 - 600
Hot pressed graphite M353 - 45 - 45 - 120 - 1.0 1.75 - 100
M352 - 35 - 35 - 80 - 1.0 1.75 - 100
M356 - 50 - 50 - 140 - 1.0 1.75 - 100
M357 - 40 - 40 - 80 - 1.0 1.75 9.0 100

Applications:

Haicheng's Carbon Graphite Bushings are ISO9001, ISO14000 and IAFT16949 certified with minimum order quantity of 10pcs. These graphite bushings are made of carbon graphite material and are customized in size to meet the needs of the customers. With flexural strength of ≥20Mpa, compressive strength of ≥25Mpa and bearing capacity of ≥50N/mm2, these Carbon Graphite Bushings are ideal for motor bearing, ultra-high temperature bearing, graphite bushing, pump bush and graphite sleeve bearing applications.

The Carbon Graphite Bushings are available at negotiable prices and can be packaged in carton box, wooden case and pallet. With a supply ability of 100000pcs per month, the delivery time of these bushings is 25-30 days and payment terms are T/T.



Customization:

Haicheng is a leader in the production of Carbon Graphite Bushings. We offer our customers a wide variety of options in terms of size, shape, thermal conductivity, thermal expansion coefficient, hardness, and more. Our bushings are manufactured with the highest quality materials to ensure that they meet the highest standards of reliability, performance, and durability.

Our Carbon Graphite Bushings are made from high-grade graphite material and are designed to provide superior thermal and mechanical properties. Our bushings have a thermal conductivity of ≥30W/mK, a thermal expansion coefficient of 1.5-2.0×10-6/K, and a hardness of HRC60-70. They are available in a variety of shapes and sizes, and can be customized to meet your specific requirements.

We are certified by ISO9001, ISO14000, and IAFT16949 and our minimum order quantity is 10pcs. Our prices are negotiable and we guarantee a delivery time of 25-30 days. We accept payment via T/T and have a monthly supply capacity of 100000pcs. Our bushings are packed in carton boxes, wooden cases, or pallets for safe delivery.

If you are looking for a reliable and cost-efficient supplier of Carbon Graphite Bushings, look no further than Haicheng. We also offer graphite pipes and graphite sleeve bearings for all your needs.



Photos:

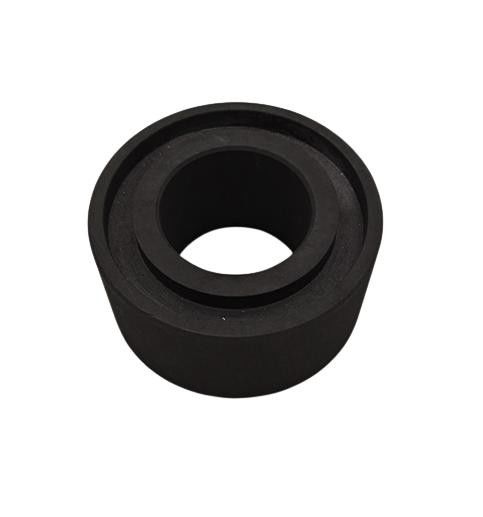

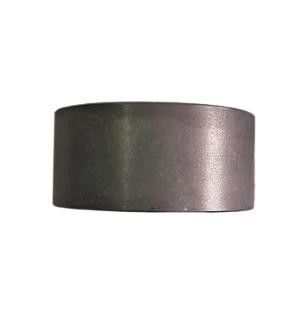

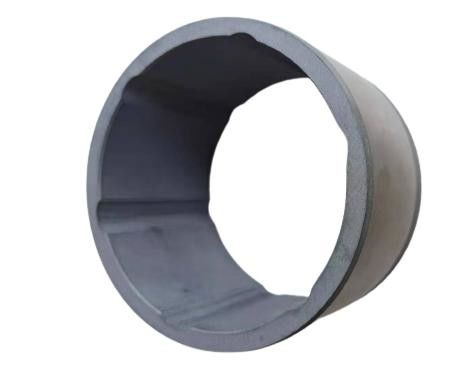

Low Corrosion Carbon Graphite Bushings Precision Dimensions 0Low Corrosion Carbon Graphite Bushings Precision Dimensions 1

Packing and Shipping:

Carbon Graphite Bushings are packaged and shipped as follows:

  • The product will be placed in a carton box to protect it from damage.
  • If necessary, the carton can be wrapped in bubble wrap or other protective material.
  • The package will be sealed with tape to keep the product secure during shipping.
  • The package will be labelled clearly with the product name and shipping address.


FAQ:

Q1: Are you manufacturer?

A1: Yes, we are professional manufacturer for carbon graphite products.

Q2: What is the minimum order quantity?

A2: The minimum order quantity is 10pcs.

Q3: What is the payment terms?

A3: The payment terms is T/T.

Q4: What is the delivery time?

A4: The delivery time is 25-30 days.

Q5: What is the packaging details?

A5: The packaging details are carton box, wooden case and pallet.
