Air Compressor Carbon Graphite Vanes Pyrolytic Graphite Plate High Purity

Air Compressor Carbon Graphite Vanes Pyrolytic High Purity Isostatic Graphite Plates



Skill of using carbon vane:
1, When the new pump is in use, pay more attention to the steering of motor and do not connect with reverse. The pump long time reversal will lead to vanes damaged.
2, The use of pumps environment too much dust, air filtration is not complete will accelerate the wear of the vanes, reduce the life of the vanes.
3, Wet environment will cause the vanes and rotor slot wall corrosion. When air pump start-up parts of the vanes can not be thrown out, the vanes out of uneven stress damage. In such case to check the vanes first and clean up.
4, The use of air pump, frequent switching will increase the number of times the vanes thrown impact, reduce the life of the vanes, should try to avoid.
5, Poor quality vanes will lead to air pump performance or damage to inner wall of the cylinder, should be avoided.



Physical Properties of Isostatic Graphite

	Index	Bulk Density	Shore hardness	Resistivity	Flexural Strength	Compressive Strength	Thermal expansion coefficient	Ash
Category		≥g/cm3	≥HS	UΩ*m	≥MPa	≥MPa	10-6/℃	≤ PPM
Cylinder	Grade A	1.85	50	8-12	40	80	4.0	500/50
	Grade B	1.8	45	8-12	35	70	3.8	500/50
	Grade C	1.8	40	8-12	30	65	3.8	500/50
Cuboid	Grade A	1.85	55	8-12	45	90	4	500/50
	Grade B	1.8	50	8-12	40	80	3.9	500/50
	Grade C	1.8	40	8-12	35	70	3.8	500/50

Physical Properties of Graphite

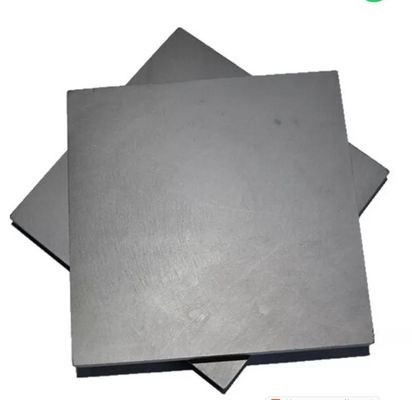

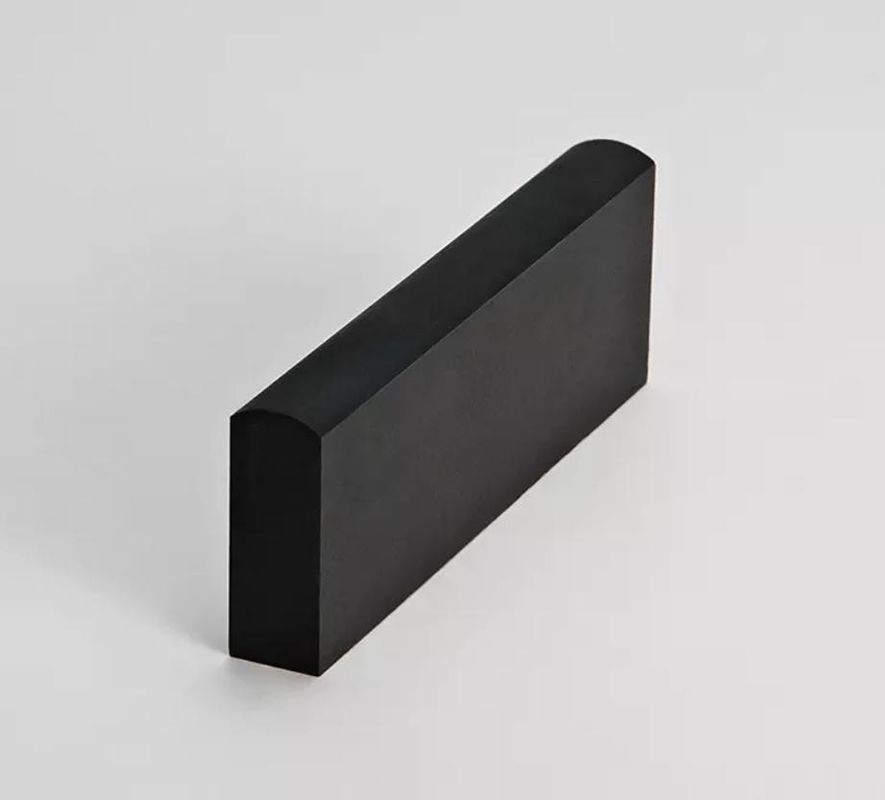

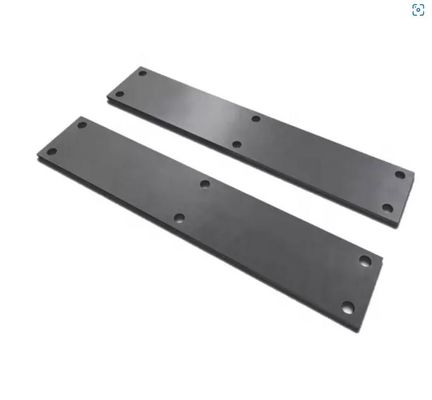

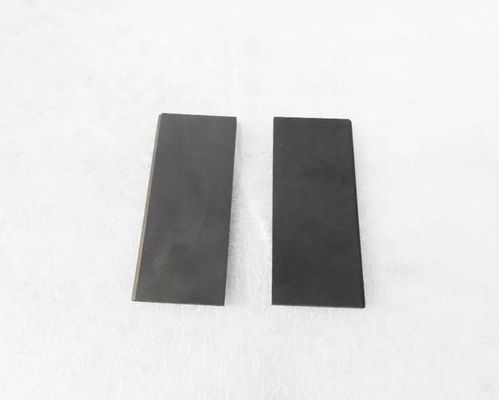

Photos of Product

Company Introduction

Sichuan Haicheng Carbon Products Co.,Ltd. Is a professional enterprise engaged in research, design and production of electrical carbon products,graphite products and mechanical seals.

We have nearly 200 employees, 55% of them have advanced degrees. Among them there are 20 engineers and technicians, their 20% of the total number of employees.

The company is equipped with more than 200 processing equipment and testing equipment, such as CNC lathe,CNC automatic production lines. CNC engraving and milling machines, CNC vertical milling machines and etc. The production capacity is 2.2 million sets of various types.

The company has a group of strong professional research and development team, has professional testing equipment and testing method, Carry out random inspection of incoming materials, and take self-inspection, first inspection, patrol inspection, and random inspection of products in the production process to ensure that the products meet the qualified standards.

Packaging Details

vacuum pump carbon vane
1. carton packing
2. according to customers' requirements
3.lined with bubble wrap

Port: Shenzhen
