Industrial Grade Thin Graphite Plate Vacuum Pump Carbon Vanes Rustproof

Industrial Grade Thin Graphite Plate Vacuum Pump Carbon Vanes Rustproof
Industrial Grade Thin Graphite Plate Vacuum Pump Carbon Vanes Rustproof Industrial Grade Thin Graphite Plate Vacuum Pump Carbon Vanes Rustproof Industrial Grade Thin Graphite Plate Vacuum Pump Carbon Vanes Rustproof Industrial Grade Thin Graphite Plate Vacuum Pump Carbon Vanes Rustproof

Large Image :  Industrial Grade Thin Graphite Plate Vacuum Pump Carbon Vanes Rustproof

Product Details:
Place of Origin: China
Brand Name: Haicheng
Certification: ISO9001, ISO14000, IATF16949
Model Number: M120K, M120D
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: USD5.00-USD100.00 per piece
Packaging Details: Carton box, or packed as per required
Delivery Time: 15-20 days
Payment Terms: T/T,L/C, D/A, D/P,
Supply Ability: 200000 pcs per month

Industrial Grade Thin Graphite Plate Vacuum Pump Carbon Vanes Rustproof

Description
Material Density: 1.58-2.40 G/cm3 Chemical Composition: Carbon>99%
Peroduct: Price Of Custom Good Quality Carbon Graphite Plates Material: High Purity Graphite Material
Product Type: Reinforced Plate Grade: Industrial Grade
High Light:

Industrial Grade Thin Graphite Plate

,

Thin Graphite Plate Rustproof

,

Vacuum Pump Carbon Vanes Rustproof

Air Pump Parts Carbon Graphite Plates Vacuum Pump Carbon Vane For Compressor


Graphite plate
Features:
* Sizes as per application
* High density
* Low melting point

These Graphite Plates are manufactured obtainable in various stipulations as per client's needs. Offered products are developed
utilizing best quality material and hi-tech machinery in compliance with certified industrial norms.





Physical Properties of Graphite

Category Model Impregnant Shore Hardess Flexural Strength Compressive Strength Porosity Bulk Density Thermal expansion coeffcient Temp.
`X ≥MPa `X ≥MPa `X % g/cm3 10-6/
Graphite M120 - 60 - 25 - 81 - 18 1.6 4 350
M154 - 40 - 20 - 40 - 28 1.42 - 350
M254 - 10 - 25 - 45 - 25 1.65 3.4 450
Impregnated resin carbon graphite M106H Epoxy resin 75 90 51 60 180 190 1.0 1.62 4.8 200
M238H 40 55 39 50 78 110 1.0 1.85 4.5 250
M255H 40 50 34 45 78 90 1.0 1.8 4.5 200
M106K Furan resin 80 95 55 65 200 210 2.0 1.62 - 200
M120K 75 95 50 60 190 195 2.0 1.7   200
M154K 60   35   70   6.0 1.6   200
M158K 80 90 54 60 200 210 1.2 1.65 - 200
Impregnated metal carbon graphite M106D Antimony alloy 75 - 55 65 170 190 3 2.2 5.0 500
M120D 70 - 50 60 140 160 3 2.2 5.0 500
M254D 35 - 35 - 65 - 3 2.2 4.5 500
M120P Copper alloy 65 - 65 - 200 - 3 2.4 - 400
Impregnated glass carbon graphite M106R Glass 110 - 75 - 210 - 1.5 1.9 4.67 600
M120R 95 - 57 - 190 - 1.5 1.9 4.67 600
M254R 65 - 55 - 100 - 1.5 1.9 - 600
M262R 75 - 48 - 138 - 1.5 1.9 - 600
Hot pressed graphite M353 - 45 - 45 - 120 - 1.0 1.75 - 100
M352 - 35 - 35 - 80 - 1.0 1.75 - 100
M356 - 50 - 50 - 140 - 1.0 1.75 - 100
M357 - 40 - 40 - 80 - 1.0 1.75 9.0 100

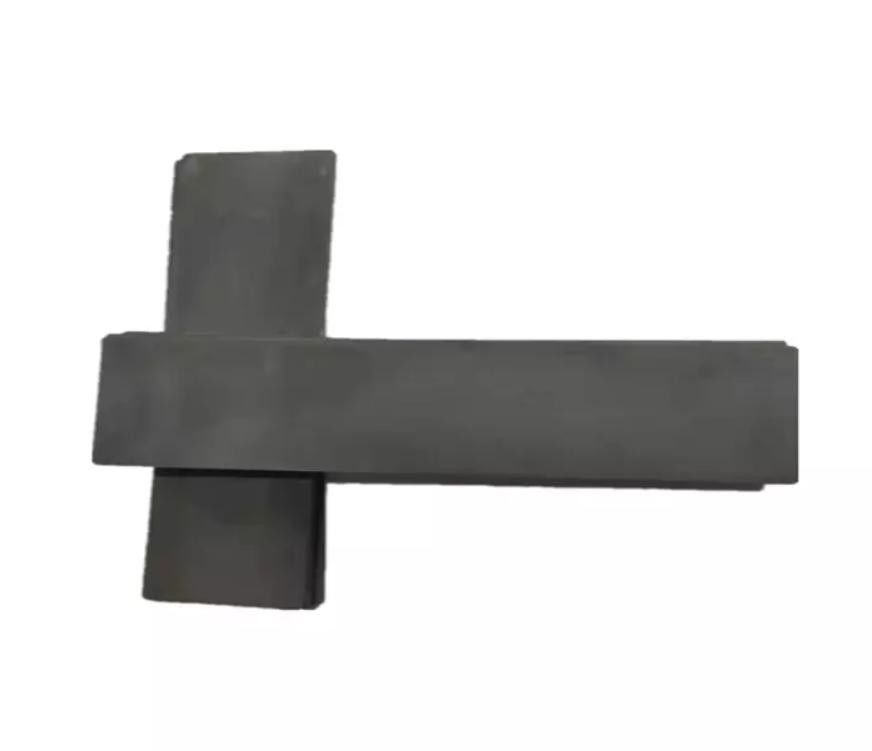

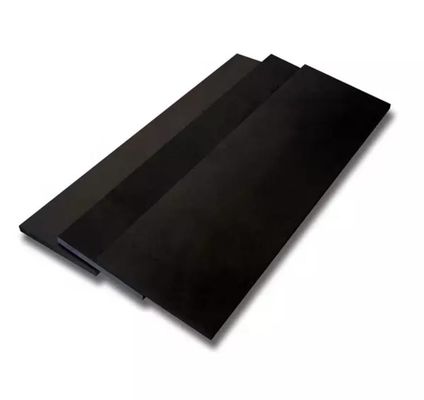

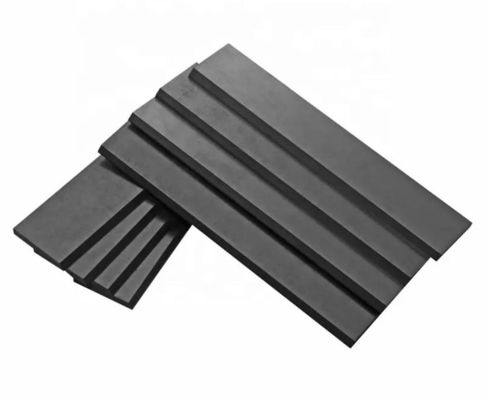

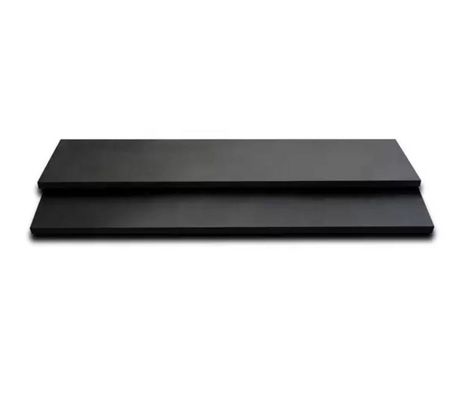

Photos of Product


Industrial Grade Thin Graphite Plate Vacuum Pump Carbon Vanes Rustproof 0Industrial Grade Thin Graphite Plate Vacuum Pump Carbon Vanes Rustproof 1





Company Introduction



Sichuan Haicheng Carbon Products Co.,Ltd. Is a professional enterprise engaged in research, design and production of electrical carbon products,graphite products and mechanical seals.



We have nearly 200 employees, 55% of them have advanced degrees. Among them there are 20 engineers and technicians, their 20% of the total number of employees.



The company is equipped with more than 200 processing equipment and testing equipment, such as CNC lathe,CNC automatic production lines. CNC engraving and milling machines, CNC vertical milling machines and etc. The production capacity is 2.2 million sets of various types.



The company has a group of strong professional research and development team, has professional testing equipment and testing method, Carry out random inspection of incoming materials, and take self-inspection, first inspection, patrol inspection, and random inspection of products in the production process to ensure that the products meet the qualified standards.



Industrial Grade Thin Graphite Plate Vacuum Pump Carbon Vanes Rustproof 2Industrial Grade Thin Graphite Plate Vacuum Pump Carbon Vanes Rustproof 3

DELIVERY TIME:

15-20 days after confirming order,detail delivery date should be decided according toproduction season and order quantity


FAQ


What is your MOQ?
There is no limit for MOQ.



When can i get the price?
We usually quote within 24 hours after getting your detailed requirements,like size, quantity etc.

Do you provide samples?
Yes, samples are available for you to check our quality. it will on your expense.

What about the lead time for mass product?
The lead time is based on the quantity, 25-30 days for regular products.

What is your terms of delivery?
We accept FOB, CFR, CIF, EXW, etc. You can choose the most convenient way for you.

What can you buy from us?
Carbon graphite bushings & bearings, seals, rods, plates,vanes.
