Superfine Antimony Impregnated Carbon Graphite Products Impact Resistance

Superfine Antimony Impregnated Carbon Graphite Products Impact Resistance
Superfine Antimony Impregnated Carbon Graphite Products Impact Resistance Superfine Antimony Impregnated Carbon Graphite Products Impact Resistance Superfine Antimony Impregnated Carbon Graphite Products Impact Resistance Superfine Antimony Impregnated Carbon Graphite Products Impact Resistance

Large Image :  Superfine Antimony Impregnated Carbon Graphite Products Impact Resistance

Product Details:
Place of Origin: China
Brand Name: Haicheng
Certification: ISO9001, ISO14000, IATF16949
Model Number: M120P, M120K
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 15-20 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 200000 pcs per month

Superfine Antimony Impregnated Carbon Graphite Products Impact Resistance

Description
Product Features: High Density And High Purity Temperature Resistance Resistance: 200-650℃
Application: Mechanical Seal, Water Pump Seals, Mechanical Seals Flexural Strength: 20- 45 Mpa Different Grades Available
Lead Time: 25-30 Days Chemical Composition: High Purity Graphite, Carbon>99%
High Light:

Superfine Antimony Impregnated Carbon Graphite

,

Carbon Graphite Products Impact Resistance

,

Superfine Carbon Graphite Products

Superfine Carbon Graphite Products High Purity Impregnated Graphite



Carbon Graphite is the ideal seal material in every aspect. It is self-lapping and flexible enough to conform to the mating face, very hard, self-lubricating and resistant to wear. It is also lubricated by almost any fluid, so the media being sealed will add additional lubrication. It is impervious and resistant to most chemicals.



Features:

1. Thermal stability: According to the quench acute thermal using conditions of graphite crucible, we will specially design the production procedure, so as to ensure the reliability of product quality.



2. Corrosion resistance: Even and fine basic design will delay the erosion of crucible.

3. Impact resistance: Graphite crucible can bear high thermal impact, so any process can be carried out.

4. Acid resistance: The adding of special materials will greatly improve the quality of crucible, especially its index of acid resistance., and will prolong the service life of graphite crucible.

5. High heat Conduction: High content of fixed carbon ensures the good heat conduction, shorten the time of dissolution, and remarkably reduce the energy consumption.

6. Control of metal pollution: The component of material under strict control will ensure that graphite crucible will not pollute the metals when dissolving.

7. Quality stability: The process technology of forming under high pressure and quality guarantee system will fully ensure the stability of quality.





Material proformance

Category Model Impregnant Shore Hardess Flexural Strength Compressive Strength Porosity Bulk Density Thermal expansion coeffcient Temp.
`X ≥MPa `X ≥MPa `X ≤% g/cm3 10-6/℃
Graphite M120 - 60 - 25 - 81 - 18 1.6 4 350
M154 - 40 - 20 - 40 - 28 1.42 - 350
M254 - 10 - 25 - 45 - 25 1.65 3.4 450
Impregnated resin carbon graphite M106H Epoxy resin 75 90 51 60 180 190 1.0 1.62 4.8 200
M238H 40 55 39 50 78 110 1.0 1.85 4.5 250
M255H 40 50 34 45 78 90 1.0 1.8 4.5 200
M106K Furan resin 80 95 55 65 200 210 2.0 1.62 - 200
M120K 75 95 50 60 190 195 2.0 1.7   200
M154K 60   35   70   6.0 1.6   200
M158K 80 90 54 60 200 210 1.2 1.65 - 200
Impregnated metal carbon graphite M106D Antimony alloy 75 - 55 65 170 190 3 2.2 5.0 500
M120D 70 - 50 60 140 160 3 2.2 5.0 500
M254D 35 - 35 - 65 - 3 2.2 4.5 500
M120P Copper alloy 65 - 65 - 200 - 3 2.4 - 400
Impregnated glass carbon graphite M106R Glass 110 - 75 - 210 - 1.5 1.9 4.67 600
M120R 95 - 57 - 190 - 1.5 1.9 4.67 600
M254R 65 - 55 - 100 - 1.5 1.9 - 600
M262R 75 - 48 - 138 - 1.5 1.9 - 600
Hot pressed graphite M353 - 45 - 45 - 120 - 1.0 1.75 - 100
M352 - 35 - 35 - 80 - 1.0 1.75 - 100
M356 - 50 - 50 - 140 - 1.0 1.75 - 100
M357 - 40 - 40 - 80 - 1.0 1.75 9.0 100

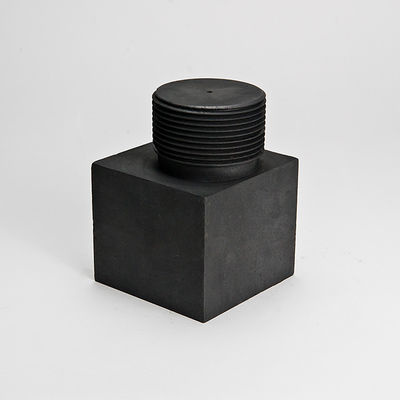

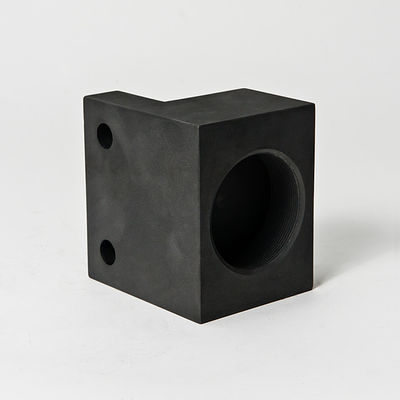

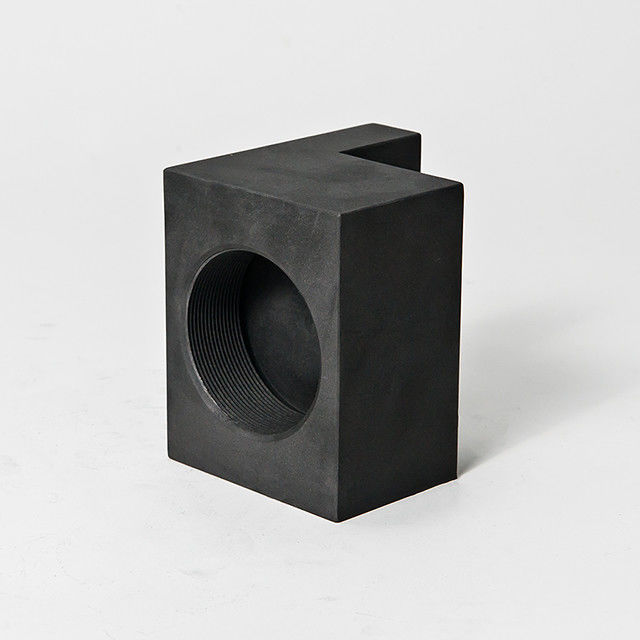

Superfine Antimony Impregnated Carbon Graphite Products Impact Resistance 0Superfine Antimony Impregnated Carbon Graphite Products Impact Resistance 1

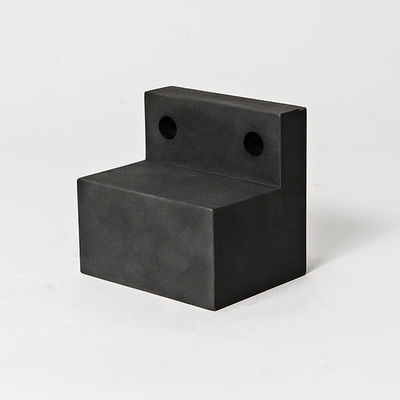

Superfine Antimony Impregnated Carbon Graphite Products Impact Resistance 2









FQA



Q1:Are you a manufacturing factory or a trading company?

A1: We are professional manufacturer for graphite products. we supply various kinds of graphite products.

Q2: What's your MOQ?
A2: No limit to the quantity.

Q3: What's your lead time for production?
A3: The lead time for normal products is 25-30 days. it need to be negotiated for special cases.

Q4: Can I have a sample order?
A4: Yes, we welcome sample order for checking quality, it will be free for our stock sample, but the delivery charge will on your expense.




Q5: Do you have stock products to sell?

A5: No,We produce these products accorded to the customer’s requirement,It also means material, density, shape, size,design,quantity will depend on what your need.OEM orders always be welcomed.
