Product Details:
|
| Material: | Synthetic Impregnated Carbon Graphite | Temperature: | 200-650℃ |
|---|---|---|---|
| Application: | Mechanical Parts | Design: | OEM&ODM |
| Compressive Strength: | 68-100MPa | Chemical Composition: | High Purity Graphite, Carbon>99% |
| High Light: | Heat Resistance Graphite Sleeve Bearings,ISO9001 Graphite Sleeve Bearings,ISO9001 Carbon Graphite Products |
||

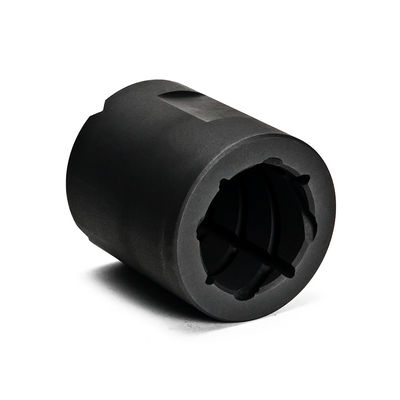

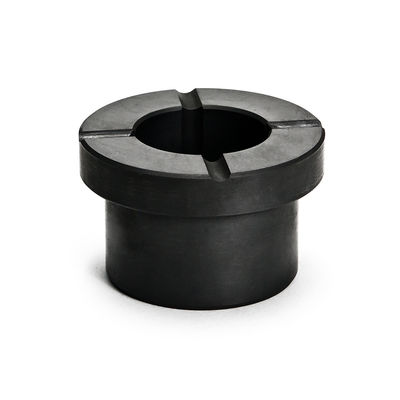

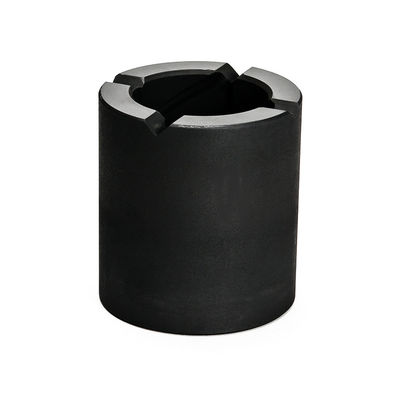

Top Quality Assured Carbon Graphite Bushings Industrial Grade Available
Description
Due to its self-lubricating, high temperature resistance, corrosion resistance and other characteristics, graphite bearings are able to meet the sealing requirements under the condition of strong corrosive, flammable, explosive and radioactive media.Many problems in chemical machines are effectively solved by using graphite bearings,and it is excellent to improve working conditions and raise the product quality and productivity. Such products are widely used in a variety of pumps, stirring machines,high temperature-high pressure dyeing machines, compressors, sealing rings of reactor vessel mechanical seal components , oxygen generator , piston rings of air-blower,shield electric machine, submersible motor ,instrument, fuel pump, vacuum pumps,gas compressors, air pumps in pressing machine, Safety blasting film and plate in chemical devices, panelboard and arc block in cigarette making machine, etc.
Technical performance of materials
| Category | Model | Impregnant | Shore Hardess | Flexural Strength | Compressive Strength | Porosity | Bulk Density | Thermal expansion coeffcient | Temp. | |||
| ≥ | `X | ≥MPa | `X | ≥MPa | `X | ≤% | g/cm3 | 10-6/℃ | ℃ | |||
| Graphite | M120 | - | 60 | - | 25 | - | 81 | - | 18 | 1.6 | 4 | 350 |
| M154 | - | 40 | - | 20 | - | 40 | - | 28 | 1.42 | - | 350 | |
| M254 | - | 10 | - | 25 | - | 45 | - | 25 | 1.65 | 3.4 | 450 | |
| Impregnated resin carbon graphite | M106H | Epoxy resin | 75 | 90 | 51 | 60 | 180 | 190 | 1.0 | 1.62 | 4.8 | 200 |
| M238H | 40 | 55 | 39 | 50 | 78 | 110 | 1.0 | 1.85 | 4.5 | 250 | ||
| M255H | 40 | 50 | 34 | 45 | 78 | 90 | 1.0 | 1.8 | 4.5 | 200 | ||
| M106K | Furan resin | 80 | 95 | 55 | 65 | 200 | 210 | 2.0 | 1.62 | - | 200 | |
| M120K | 75 | 95 | 50 | 60 | 190 | 195 | 2.0 | 1.7 | 200 | |||
| M154K | 60 | 35 | 70 | 6.0 | 1.6 | 200 | ||||||
| M158K | 80 | 90 | 54 | 60 | 200 | 210 | 1.2 | 1.65 | - | 200 | ||
| Impregnated metal carbon graphite | M106D | Antimony alloy | 75 | - | 55 | 65 | 170 | 190 | 3 | 2.2 | 5.0 | 500 |
| M120D | 70 | - | 50 | 60 | 140 | 160 | 3 | 2.2 | 5.0 | 500 | ||
| M254D | 35 | - | 35 | - | 65 | - | 3 | 2.2 | 4.5 | 500 | ||
| M120P | Copper alloy | 65 | - | 65 | - | 200 | - | 3 | 2.4 | - | 400 | |
| Impregnated glass carbon graphite | M106R | Glass | 110 | - | 75 | - | 210 | - | 1.5 | 1.9 | 4.67 | 600 |
| M120R | 95 | - | 57 | - | 190 | - | 1.5 | 1.9 | 4.67 | 600 | ||
| M254R | 65 | - | 55 | - | 100 | - | 1.5 | 1.9 | - | 600 | ||
| M262R | 75 | - | 48 | - | 138 | - | 1.5 | 1.9 | - | 600 | ||
FQA
Q1:Are you a manufacturing factory or a trading company?
