Product Details:
|
| Material: | Aitificial Carbon Graphite | Temperature: | 200-600℃ |
|---|---|---|---|
| Application: | Pump Parts | Design: | OEM&ODM |
| Compressive Strength: | 68-100MPa | Chemical Composition: | High Purity Graphite, Carbon>99% |
| Highlight: | High Density Carbon Graphite Bushings,ISO14000 Carbon Graphite Bushings,ISO14000 machinery bushing |
||

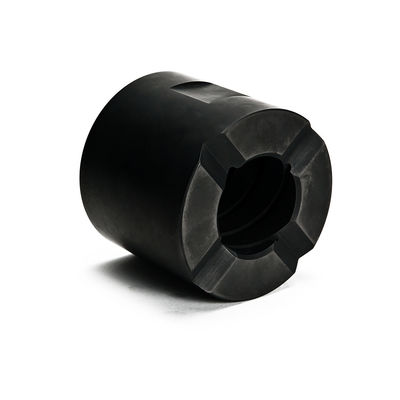

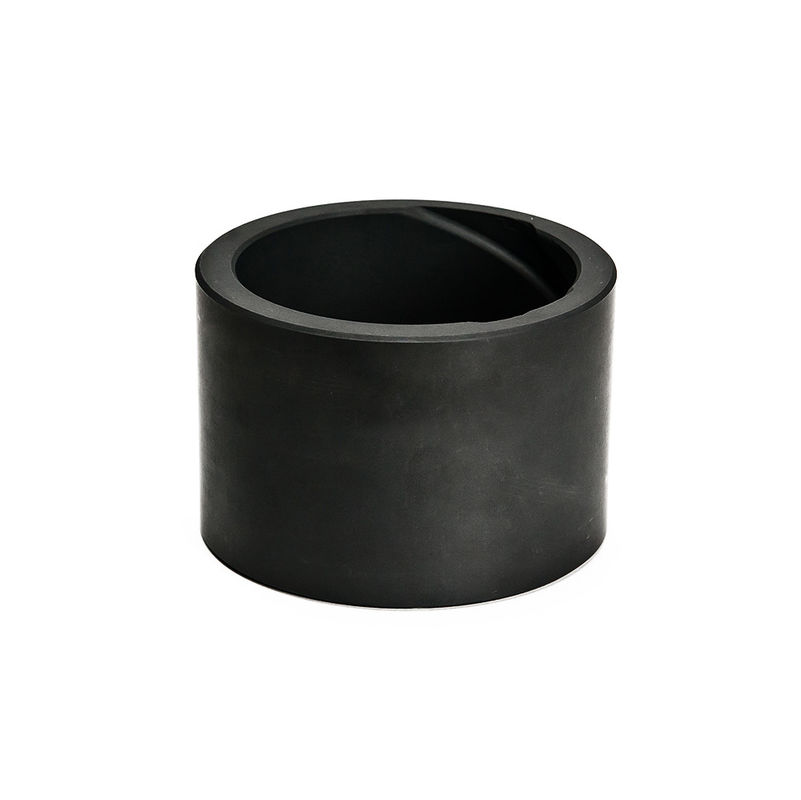

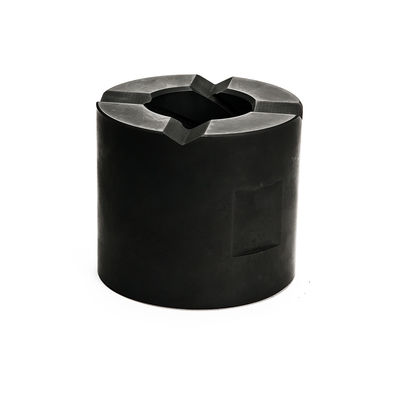

Various Carbon Graphite Bushings With High Density And High Temperature Resistance
Graphite Bearing :
Graphite bearing is commonly used in industrial machinery such as lubricant parts. The bearings are the sliding parts which are commonly used in industrial machinery. graphite bearing is the carbon material with the performance requirements of mechanical equipment. different with metal bearing, graphite bearing has the superior properties such as self-lubricating, qualitative light, high temperature resistant, corrosion resistance etc.
Technical performance of materials
| Category | Model | Impregnant | Shore Hardess | Flexural Strength | Compressive Strength | Porosity | Bulk Density | Thermal expansion coeffcient | Temp. | |||
| ≥ | `X | ≥MPa | `X | ≥MPa | `X | ≤% | g/cm3 | 10-6/℃ | ℃ | |||
| Graphite | M120 | - | 60 | - | 25 | - | 81 | - | 18 | 1.6 | 4 | 350 |
| M154 | - | 40 | - | 20 | - | 40 | - | 28 | 1.42 | - | 350 | |
| M254 | - | 10 | - | 25 | - | 45 | - | 25 | 1.65 | 3.4 | 450 | |
| Impregnated resin carbon graphite | M106H | Epoxy resin | 75 | 90 | 51 | 60 | 180 | 190 | 1.0 | 1.62 | 4.8 | 200 |
| M238H | 40 | 55 | 39 | 50 | 78 | 110 | 1.0 | 1.85 | 4.5 | 250 | ||
| M255H | 40 | 50 | 34 | 45 | 78 | 90 | 1.0 | 1.8 | 4.5 | 200 | ||
| M106K | Furan resin | 80 | 95 | 55 | 65 | 200 | 210 | 2.0 | 1.62 | - | 200 | |
| M120K | 75 | 95 | 50 | 60 | 190 | 195 | 2.0 | 1.7 | 200 | |||
| M154K | 60 | 35 | 70 | 6.0 | 1.6 | 200 | ||||||
| M158K | 80 | 90 | 54 | 60 | 200 | 210 | 1.2 | 1.65 | - | 200 | ||
| Impregnated metal carbon graphite | M106D | Antimony alloy | 75 | - | 55 | 65 | 170 | 190 | 3 | 2.2 | 5.0 | 500 |
| M120D | 70 | - | 50 | 60 | 140 | 160 | 3 | 2.2 | 5.0 | 500 | ||
| M254D | 35 | - | 35 | - | 65 | - | 3 | 2.2 | 4.5 | 500 | ||
| M120P | Copper alloy | 65 | - | 65 | - | 200 | - | 3 | 2.4 | - | 400 | |
| Impregnated glass carbon graphite | M106R | Glass | 110 | - | 75 | - | 210 | - | 1.5 | 1.9 | 4.67 | 600 |
| M120R | 95 | - | 57 | - | 190 | - | 1.5 | 1.9 | 4.67 | 600 | ||
| M254R | 65 | - | 55 | - | 100 | - | 1.5 | 1.9 | - | 600 | ||
| M262R | 75 | - | 48 | - | 138 | - | 1.5 | 1.9 | - | 600 | ||
