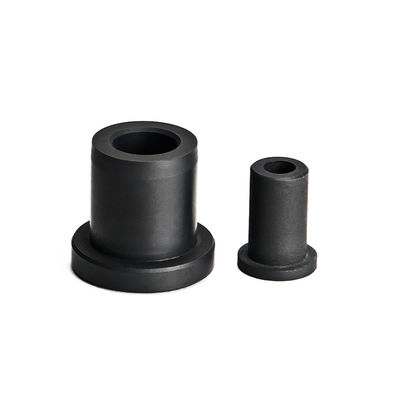

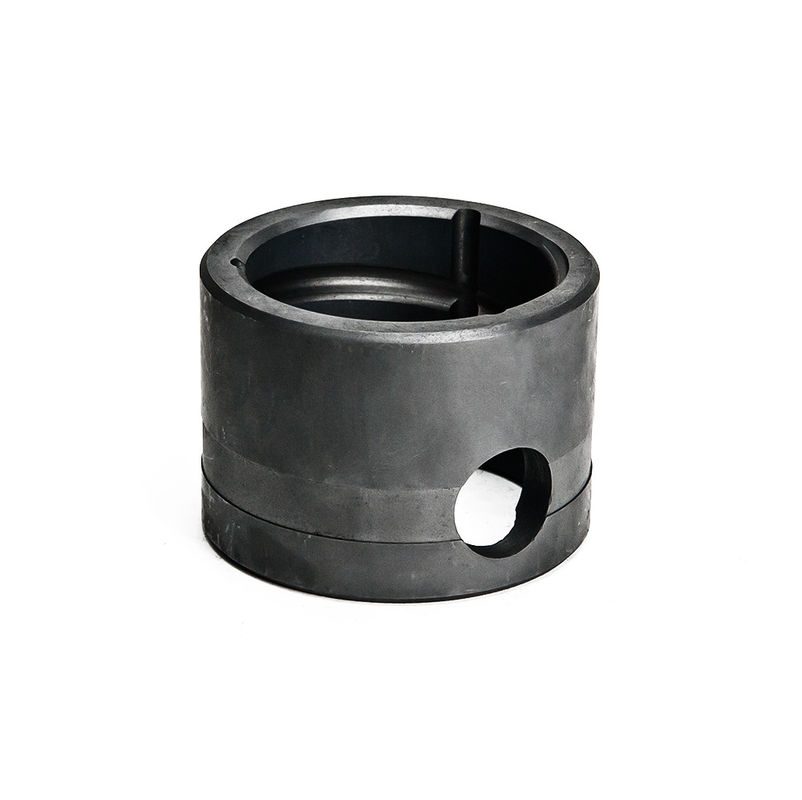

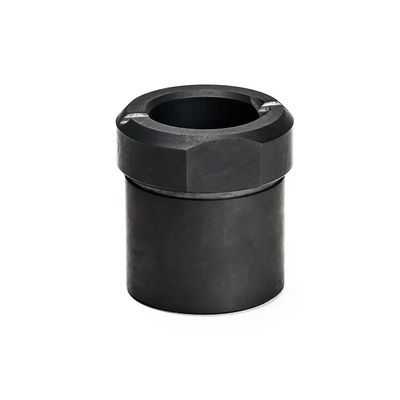

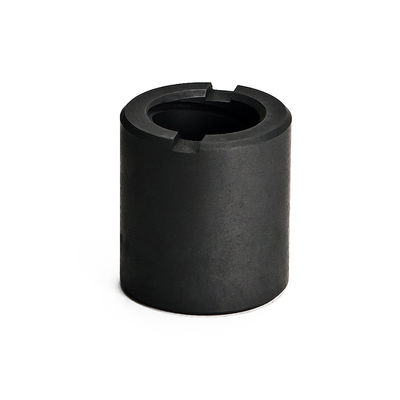

Good thermal conductivity Graphite Impregnated Bushings For Electric Machinery

Good thermal conductivity Graphite Impregnated Bushings For Electric Machinery
Good thermal conductivity Graphite Impregnated Bushings For Electric Machinery Good thermal conductivity Graphite Impregnated Bushings For Electric Machinery Good thermal conductivity Graphite Impregnated Bushings For Electric Machinery Good thermal conductivity Graphite Impregnated Bushings For Electric Machinery

Large Image :  Good thermal conductivity Graphite Impregnated Bushings For Electric Machinery

Product Details:
Place of Origin: China
Brand Name: Haicheng
Certification: ISO9001, ISO14000, IATF16949
Model Number: M120K, M120D
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 15-20 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000 pcs per month

Good thermal conductivity Graphite Impregnated Bushings For Electric Machinery

Description
Product Material: Various Kinds Of Graphite Temperature: 200-600℃
Application: Machinery Industry Design: OEM&ODM
Size: Customized Chemical Composition: High Purity Graphite, Carbon>99%
High Light:

Electric Machinery Graphite Impregnated Bushings

,

Antiwear Graphite Impregnated Bushings

,

Antiwear Electric machinery bushing

Good thermal conductivity Graphite Impregnated Bushings For Electric Machinery



Graphite bushings can be made using a variety of manufacturing processes, including pressing, injection molding, and extrusion. They are available in a range of sizes and configurations to suit different applications, and can be customized to meet specific requirements.



In terms of maintenance, graphite bushings typically require little to no lubrication, as the graphite material naturally provides lubrication. They also tend to have a longer service life than other types of bushings, as they are less prone to wear and corrosion.



Overall, graphite bushings are a reliable and cost-effective solution for many industrial machinery and equipment applications, offering low-friction, self-lubricating performance in high-temperature and high-load environments.





Category Model Impregnant Shore Hardess Flexural Strength Compressive Strength Porosity Bulk Density Thermal expansion coeffcient Temp.
`X ≥MPa `X ≥MPa `X % g/cm3 10-6/
Graphite M120 - 60 - 25 - 81 - 18 1.6 4 350
M154 - 40 - 20 - 40 - 28 1.42 - 350
M254 - 10 - 25 - 45 - 25 1.65 3.4 450
Impregnated resin carbon graphite M106H Epoxy resin 75 90 51 60 180 190 1.0 1.62 4.8 200
M238H 40 55 39 50 78 110 1.0 1.85 4.5 250
M255H 40 50 34 45 78 90 1.0 1.8 4.5 200
M106K Furan resin 80 95 55 65 200 210 2.0 1.62 - 200
M120K 75 95 50 60 190 195 2.0 1.7   200
M154K 60   35   70   6.0 1.6   200
M158K 80 90 54 60 200 210 1.2 1.65 - 200
Impregnated metal carbon graphite M106D Antimony alloy 75 - 55 65 170 190 3 2.2 5.0 500
M120D 70 - 50 60 140 160 3 2.2 5.0 500
M254D 35 - 35 - 65 - 3 2.2 4.5 500
M120P Copper alloy 65 - 65 - 200 - 3 2.4 - 400
Impregnated glass carbon graphite M106R Glass 110 - 75 - 210 - 1.5 1.9 4.67 600
M120R 95 - 57 - 190 - 1.5 1.9 4.67 600
M254R 65 - 55 - 100 - 1.5 1.9 - 600
M262R 75 - 48 - 138 - 1.5 1.9 - 600
Hot pressed graphite M353 - 45 - 45 - 120 - 1.0 1.75 - 100
M352 - 35 - 35 - 80 - 1.0 1.75 - 100
M356 - 50 - 50 - 140 - 1.0 1.75 - 100
M357 - 40 - 40 - 80 - 1.0 1.75 9.0 100



Good thermal conductivity Graphite Impregnated Bushings For Electric Machinery 0Good thermal conductivity Graphite Impregnated Bushings For Electric Machinery 1




Good thermal conductivity Graphite Impregnated Bushings For Electric Machinery 2



FQA



Q1:Are you a manufacturing factory or a trading company?

A1: We are manufacturer for graphite products.

Q2: What's your MOQ?
A2: No limit to the quantity, we can offer the best proposal and solution according to your condition.

Q3: What's your lead time for production?
A3: The lead time for normal products is 25-30 days. it need to be negotiated for special cases.

Q4: Can I have a sample order?
A4: Yes, we welcome sample order for checking quality, it will be free for our stock sample, but the delivery charge will on your expense.
