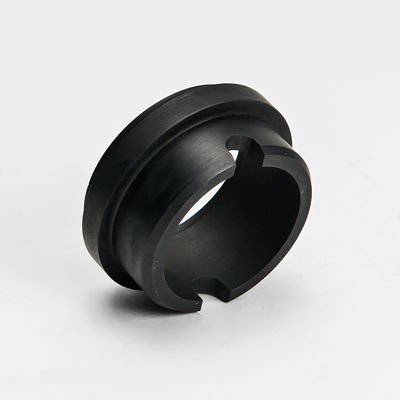

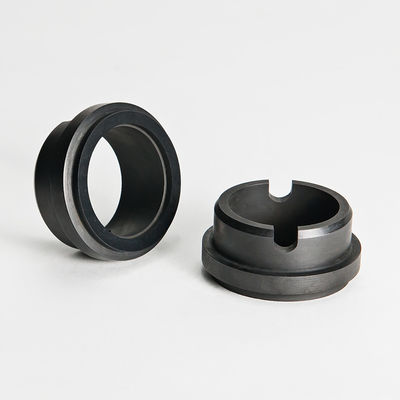

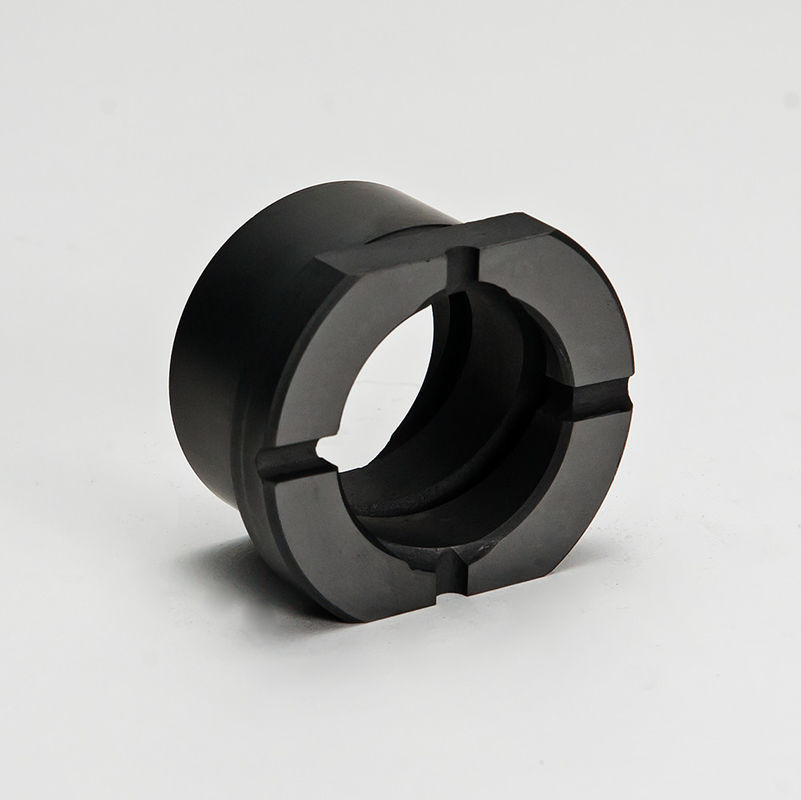

Self Lubrication Carbon Graphite Bushings High Temp Resistance Impact Resistance

Self Lubrication Carbon Graphite Bushings High Temp Resistance Impact Resistance
Self Lubrication Carbon Graphite Bushings High Temp Resistance Impact Resistance
Self Lubrication Carbon Graphite Bushings High Temp Resistance Impact Resistance Self Lubrication Carbon Graphite Bushings High Temp Resistance Impact Resistance Self Lubrication Carbon Graphite Bushings High Temp Resistance Impact Resistance Self Lubrication Carbon Graphite Bushings High Temp Resistance Impact Resistance

Large Image :  Self Lubrication Carbon Graphite Bushings High Temp Resistance Impact Resistance

Product Details:
Place of Origin: China
Brand Name: Haicheng
Certification: ISO9001, ISO14000, IATF16949
Model Number: NA
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 15-20 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 80000 pcs per month

Self Lubrication Carbon Graphite Bushings High Temp Resistance Impact Resistance

Description
Application: Machinery Industry Design: OEM&ODM
Size: Customized Chemical Composition: High Purity Graphite, Carbon>99%
Material: Various Kinds Of Graphite Port: Shenzhen, Shanghai
High Light:

Self Lubrication Carbon Graphite Bushings

,

Carbon Graphite Bushings Impact Resistance

,

High Temp Bushings Impact Resistance

Graphite property



1, Good chemical resistance;
2,
Sufficient mechanical strength and impact resistance;
3,
Excellent self-lubrication;
4,
High thermal conductivity and thermal stability;

5, Easy to be machined, can be processed into various geometric shapes as requirements.Solid mosaic self-lubricating bearings.Brief Description: new solid mosaic self-lubricating bearings is a new bearing which have the properties and self-lubricant feature of metal bearing.







Technical performance of material



Category Model Impregnant Shore Hardess Flexural Strength Compressive Strength Porosity Bulk Density Thermal expansion coeffcient Temp.
`X ≥MPa `X ≥MPa `X % g/cm3 10-6/
Graphite M120 - 60 - 25 - 81 - 18 1.6 4 350
M154 - 40 - 20 - 40 - 28 1.42 - 350
M254 - 10 - 25 - 45 - 25 1.65 3.4 450
Impregnated resin carbon graphite M106H Epoxy resin 75 90 51 60 180 190 1.0 1.62 4.8 200
M238H 40 55 39 50 78 110 1.0 1.85 4.5 250
M255H 40 50 34 45 78 90 1.0 1.8 4.5 200
M106K Furan resin 80 95 55 65 200 210 2.0 1.62 - 200
M120K 75 95 50 60 190 195 2.0 1.7   200
M154K 60   35   70   6.0 1.6   200
M158K 80 90 54 60 200 210 1.2 1.65 - 200
Impregnated metal carbon graphite M106D Antimony alloy 75 - 55 65 170 190 3 2.2 5.0 500
M120D 70 - 50 60 140 160 3 2.2 5.0 500
M254D 35 - 35 - 65 - 3 2.2 4.5 500
M120P Copper alloy 65 - 65 - 200 - 3 2.4 - 400
Impregnated glass carbon graphite M106R Glass 110 - 75 - 210 - 1.5 1.9 4.67 600
M120R 95 - 57 - 190 - 1.5 1.9 4.67 600
M254R 65 - 55 - 100 - 1.5 1.9 - 600
M262R 75 - 48 - 138 - 1.5 1.9 - 600
Hot pressed graphite M353 - 45 - 45 - 120 - 1.0 1.75 - 100
M352 - 35 - 35 - 80 - 1.0 1.75 - 100
M356 - 50 - 50 - 140 - 1.0 1.75 - 100
M357 - 40 - 40 - 80 - 1.0 1.75 9.0 100





Self Lubrication Carbon Graphite Bushings High Temp Resistance Impact Resistance 0





FQA



Q1:Are you a manufacturing factory or a trading company?

A1: We are manufacturer for graphite products.

Q2: What's your MOQ?
A2: No limit to the quantity, we can offer the best proposal and solution according to your condition.

Q3: What's your lead time for production?
A3: The lead time for normal products is 25-30 days. it need to be negotiated for special cases.

Q4: Can I have a sample order?
A4: Yes, we welcome sample order for checking quality, it will be free for our stock sample, but the delivery charge will on your expense.
