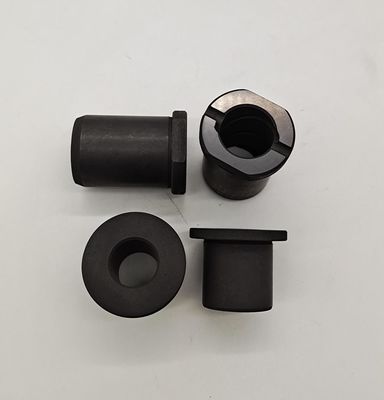

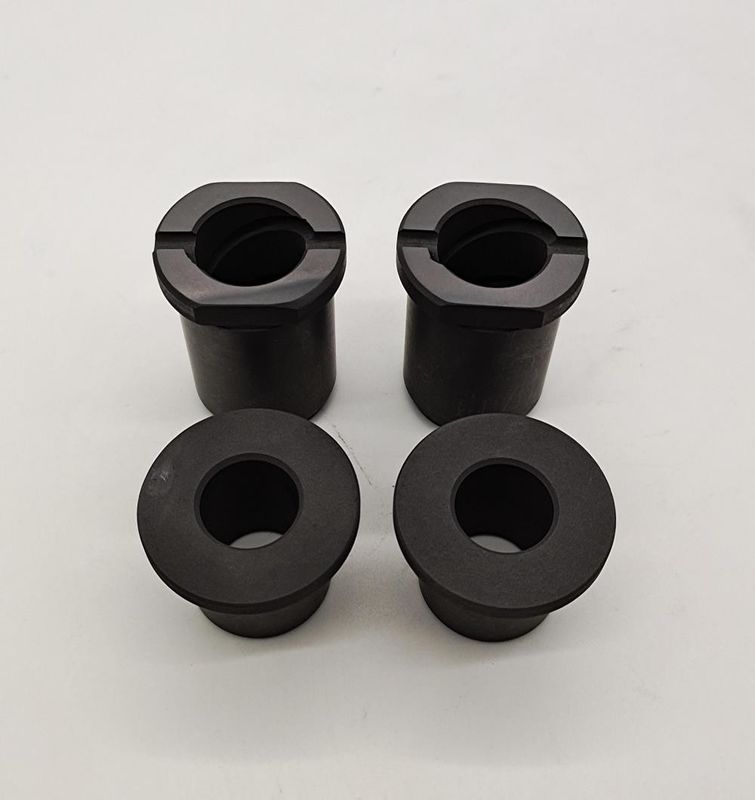

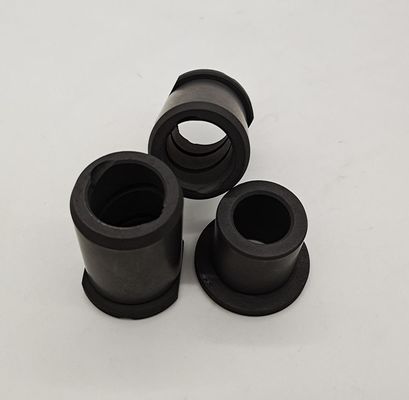

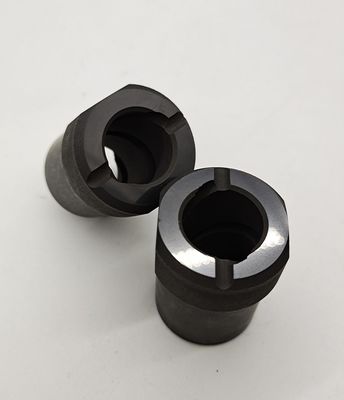

Antimony Impregnated Carbon Graphite Components High Temperature Bushing

Antimony Impregnated Carbon Graphite Components High Temperature Bushing

Brand Name:	Haicheng
Model Number:	NA
MOQ:	10 pcs
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	100000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14000, IATF16949

Material:

Carbon Graphite

Size:

Customized

Application:

Machinery Industry

Chemical Composition:

High Purity Graphite, Carbon>99%

Design:

OEM&ODM

Packaging Details:

Carton box

Supply Ability:

100000 pcs per month

Highlight:

Antimony Impregnated Carbon Graphite Components

Impregnated Carbon high temperature bushing

Graphite Components High Temperature

Product Description

Description

Due to its self-lubricating, high temperature resistance, corrosion resistance and other characteristics, graphite bearings are able to meet the sealing requirements under the condition of strong corrosive, flammable, explosive and radioactive media.

Many problems in chemical machines are effectively solved by using graphite bearings,and it is excellent to improve working conditions and raise the product quality and productivity.

Such products are widely used in a variety of pumps, stirring machines,high temperature-high pressure dyeing machines, compressors, sealing rings of reactor vessel mechanical seal components , oxygen generator , piston rings of air-blower,shield electric machine, submersible motor ,instrument, fuel pump, vacuum pumps,gas compressors, air pumps in pressing machine, Safety blasting film and plate in chemical devices, panelboard and arc block in cigarette making machine, etc.

Antimony Impregnated Carbon Graphite Components High Temperature Bushing 0

Chemical Resistance Of Mechanical Carbon Grapshite Material

Medium	Mass Fraction %	Pure Carbon Graphite	Impregnated Resin Carbon Graphite			Impregnated Metal Carbon Graphite				Hot Pressed Carbon Graphite
Medium	Mass Fraction %	Pure Carbon Graphite	Phenoic	Epoxy	Furan	Antimony	Babbitt Alloy	Aluminm Alloy	Copper Alloy	Hot Pressed Carbon Graphite
Hydrochloric acid	50	+	0	+	0	~	~	~	~	0
Sulfuric acid	50	+	0	+	0	~	~	~	~	0
Sulfuric acid	98	+	0	~	+	~	~	~	~	0
Nitric acid	50	0	0	0	0	~	~	~	~	0
Nitric acid	concentrated	~	~	~	~	~	~	~	~	~
Acetic acid	36	+	+	~	0	~	0	0	0	0
Seawater	~	+	0	+	0	~	+	0	0	0
Benzene	100	+	+	0	+	+	+	+	+	+
Ammonia	10	+	0	+	+	+	+	+	~	0
Acetone	100	+	0	0	+	+	0	+	+	0
Urea	70	+	+	+	+	+	0	+	~	0
Motor oil	~	+	0	+	+	+	0	+	+	+
Gasoline	~	+	0	0	+	+	0	+	+	+
Remarks:	+ is stable, 0 is normally, ~ is unstable
