Product Details:
|
| Features: | High Performance | Material Density: | 1.58-2.40 G/cm3 |
|---|---|---|---|
| Chemical Composition: | Carbon>99% | Compressive Strength:: | Industrial Grade |
| Product Size: | Customized | Packaging: | Carton Cases, Wooden Cases |
| High Light: | Anti Friction Carbon Graphite Bushings,Anti Friction carbon bearing bush |
||
Anti Friction Carbon Graphite Bushings With Stainless Steel High Precision
Graphite Bearing :
Graphite bearing is commonly used in industrial machinery such as lubricant parts.
A bearing is the sliding parts which is commonly used in industrial machinery, materials such as metal, nonmetal and composite materials. graphite bearing is the carbon material with the performance requirements of mechanical equipment. different with metal bearing, graphite bearing has the superior properties such as self-lubricating, qualitative light, high temperature resistant, corrosion resistance etc.
1. Self-lubricating
2. Self sealing
3. Good corrosion-resistant
4. Resistance to effect of heat
5.Thermal conductivity
Physical Properties of Carbon Graphite Material
| Category | Model | Impregnant | Shore Hardess | Flexural Strength | Compressive Strength | Porosity | Bulk Density | Thermal expansion coeffcient | Temp. | |||
| ≥ | `X | ≥MPa | `X | ≥MPa | `X | ≤% | g/cm3 | 10-6/℃ | ℃ | |||
| Graphite | M120 | - | 60 | - | 25 | - | 81 | - | 18 | 1.6 | 4 | 350 |
| M154 | - | 40 | - | 20 | - | 40 | - | 28 | 1.42 | - | 350 | |
| M254 | - | 10 | - | 25 | - | 45 | - | 25 | 1.65 | 3.4 | 450 | |
| Impregnated resin carbon graphite | M106H | Epoxy resin | 75 | 90 | 51 | 60 | 180 | 190 | 1.0 | 1.62 | 4.8 | 200 |
| M238H | 40 | 55 | 39 | 50 | 78 | 110 | 1.0 | 1.85 | 4.5 | 250 | ||
| M255H | 40 | 50 | 34 | 45 | 78 | 90 | 1.0 | 1.8 | 4.5 | 200 | ||
| M106K | Furan resin | 80 | 95 | 55 | 65 | 200 | 210 | 2.0 | 1.62 | - | 200 | |
| M120K | 75 | 95 | 50 | 60 | 190 | 195 | 2.0 | 1.7 | 200 | |||
| M154K | 60 | 35 | 70 | 6.0 | 1.6 | 200 | ||||||
| M158K | 80 | 90 | 54 | 60 | 200 | 210 | 1.2 | 1.65 | - | 200 | ||
| Impregnated metal carbon graphite | M106D | Antimony alloy | 75 | - | 55 | 65 | 170 | 190 | 3 | 2.2 | 5.0 | 500 |
| M120D | 70 | - | 50 | 60 | 140 | 160 | 3 | 2.2 | 5.0 | 500 | ||
| M254D | 35 | - | 35 | - | 65 | - | 3 | 2.2 | 4.5 | 500 | ||
| M120P | Copper alloy | 65 | - | 65 | - | 200 | - | 3 | 2.4 | - | 400 | |
| Impregnated glass carbon graphite | M106R | Glass | 110 | - | 75 | - | 210 | - | 1.5 | 1.9 | 4.67 | 600 |
| M120R | 95 | - | 57 | - | 190 | - | 1.5 | 1.9 | 4.67 | 600 | ||
| M254R | 65 | - | 55 | - | 100 | - | 1.5 | 1.9 | - | 600 | ||
| M262R | 75 | - | 48 | - | 138 | - | 1.5 | 1.9 | - | 600 | ||

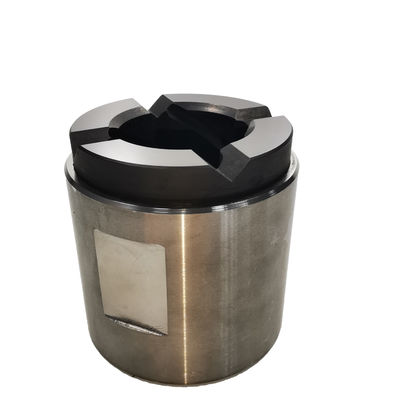

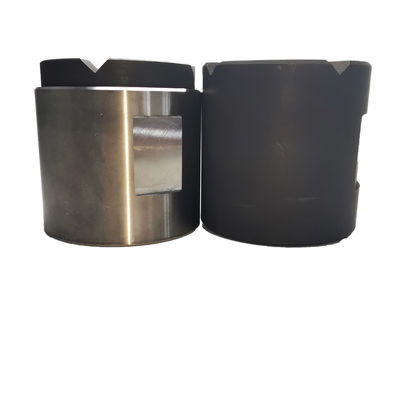

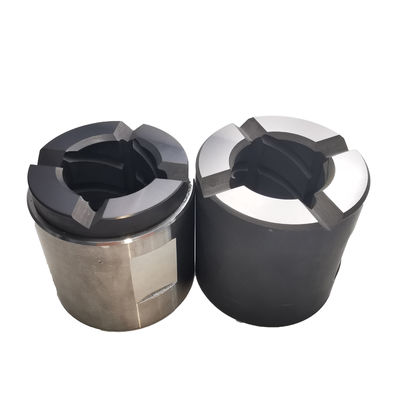

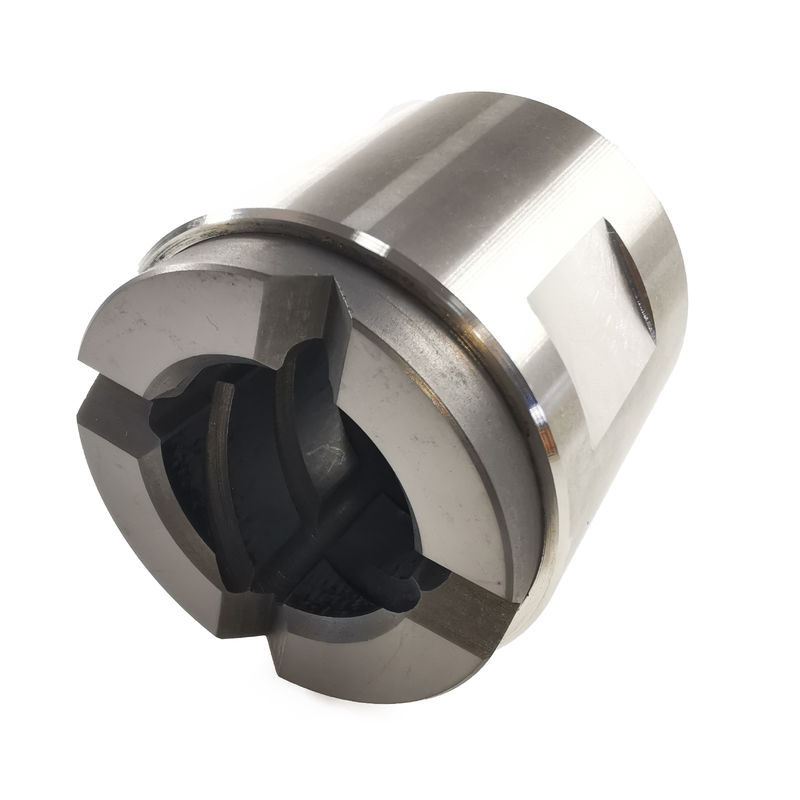

Photos of Product
Company Introduction
Sichuan Haicheng Carbon Products Co.,Ltd. Is a professional enterprise engaged in research, design and production of electrical carbon products,graphite products and mechanical seals.
We have nearly 200 employees, 55% of them have advanced degrees. Among them there are 20 engineers and technicians, their 20% of the total number of employees.
The company is equipped with more than 200 processing equipment and testing equipment, such as CNC lathe,CNC automatic production lines. CNC engraving and milling machines, CNC vertical milling machines and etc. The production capacity is 2.2 million sets of various types.
The company has a group of strong professional research and development team, has professional testing equipment and testing method, Carry out random inspection of incoming materials, and take self-inspection, first inspection, patrol inspection, and random inspection of products in the production process to ensure that the products meet the qualified standards.
The company strengthens product structure adjustment and transformation and upgrading, continuously increases R&D investment, integrates new processes and products to build and improve the industrial chain, provides customers with better products and services, and meets the company's production and development needs.
15-20 days after confirming order,detail delivery date should be decided according toproduction season and order quantity
